AMPLIFICATOR YAMAHA A-1020

AMPLIFICATORUL ARATA SI FUNCTIONEAZA BINE.NU FAC SCHIMBURI.

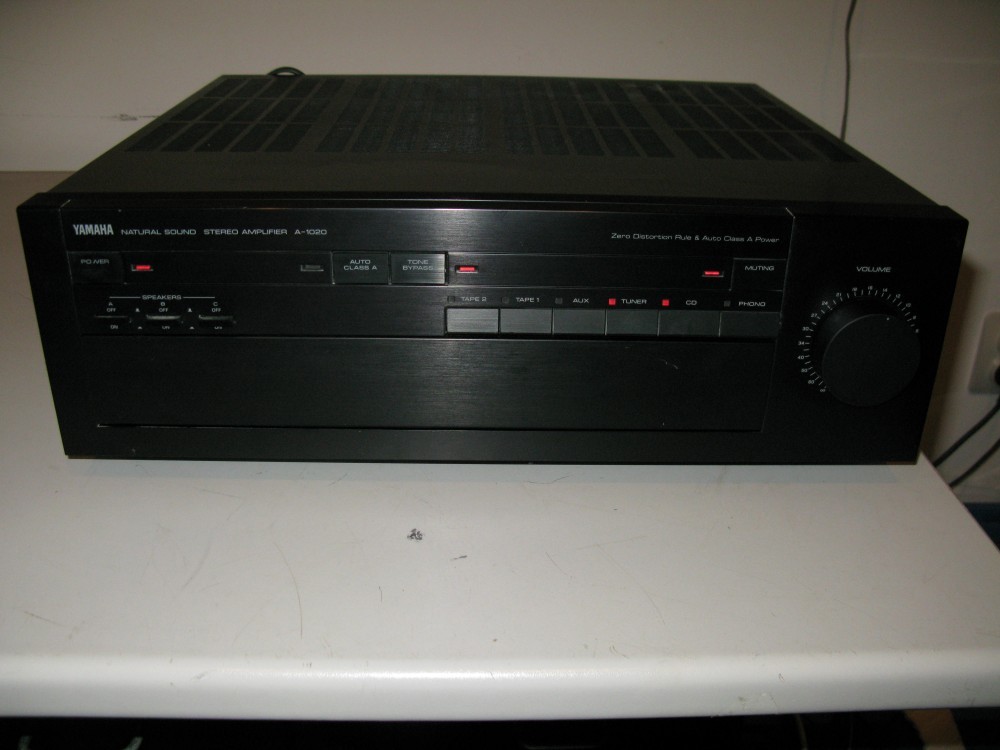

Yamaha A-1020, Class-A Stereo Integrated Amplifier

Specifications:
Manufacturer: Yamaha/Nippon Gakki, Japan
Continuous power: 2 x 125 watts into 8 ohms, 2 x 169 Watts into 4 ohms
THD: 0.003%
Damping factor: 45
Stereo separation: 65 dB
Tone controls: Bass: ± 10 dB at 20 Hz, Treble: ± 10 dB at 20,000 Hz
Inputs: 1 x Phono MM/MC (gold-plated RCA jacks), 1 x Phono MM (gold-plated RCA jacks), Tuner, 2 x Tape, Aux, CD
Outputs: 3 x speakers (screws), 2 x Rec Out (RCA), headphones (jack)
Power consumption: 450 Watts
Dimensions: 435 x 147 x 422 mm
Weight: 11.5 kilograms

Specialties: Record selector, mono/stereo switch, Class-A switchers, peak frequencies of the tone controller selectable between 125 to 500 Hz or 2500 and 8000 Hz, high filter 10000 Hz 12 dB/oct. switchable, Cover flap for secondary control elements, pre- and power amplifier separable.

Test in "Stereoplay" 10/1985: Top-class I
Retail price in Germany was: 1350,- DM
