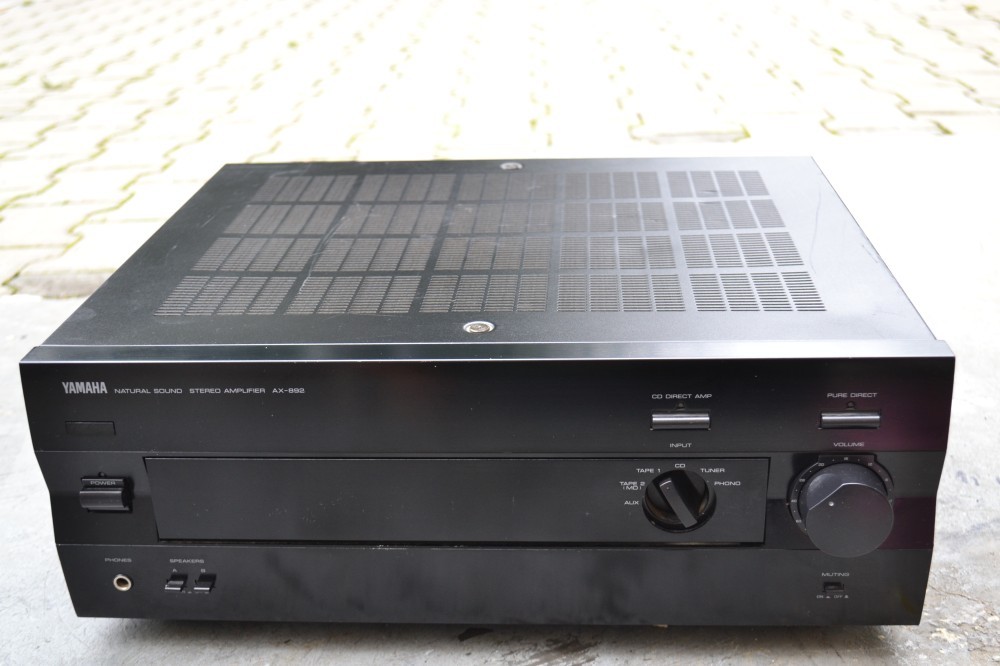

Amplificator Yamaha AX 892 cap de serie

Amplificator Yamaha AX 892 cap de serie: 6 intrari,4 iesiri, 270W consum, made in Malaysia, mufe aurite, 2 radiatoare, 8 finali, 4-16 ohmi, negru, reglaje bass, inalte, balance, loudness variabil, pure direct, cd direct, subsonic filter, muting, senzor telecomanda, poze reale.

General

• Manufacturer: Yamaha
• Model: AX-892
• Type: Integrated amplifier
• Years of manufacture: 1997 - 2004
• Made in: Malaysia
• Color: Black, Titanium
• Remote control: yes
• Power consumption: 270 W
• Dimensions: 435 × 171 × 396 mm (W×H×D)
• Weight: 13 kg
• Original price approx.: 1000 DM

Connections

• Number of inputs:
  • Phono MM/MC 2.5 mV / 47 kOhm, 160 µV / 220 Ohm.
  • CD, Tuner, AUX, 2 × Tape 150 mV / 47 kOhm
  • Main-In 1 V / 30 kOhm
• Number of outputs:
  • 2 × Loudspeaker
  • 2 × Rec-Out 150 mV / 470 Ohm
  • Pre-Out 1 V / 1.2 kOhm
  • Headphones 0.35 V / 680 Ohm

Technical Data

• Continuous power (at distortion)
  • 8 Ohm: 2 × 115 Watts at 0.015
  • 4 Ohm: 2 × 190 Watt (DIN)
• Dynamic power
  • 8 Ohm: 2 × 150 Watt
  • 4 Ohm: 2 × 250 Watt
• Total harmonic distortion: 0.008 %
• Attenuation factor: 320
• Frequency response: 10-50,000 Hz
• Signal-to-noise ratio: 110 dB
• Stereo channel separation: 65 dB
• Tone control:
  • Bass: ±10 dB at 20 Hz

Treble: ±10 dB at 20,000 Hz

• Loudness: adjustable
• High Filter: no
• Low Filter (Subsonic): 15 Hz / 18 dB, switchable
• Mute: yes
• Direct/Line-Straight: CD-Direct and Pure-Direct
