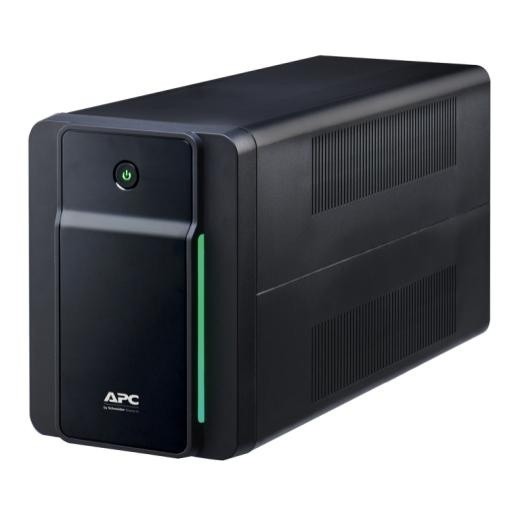

APC Back-UPS 1200VA, 230V, AVR, IEC Sock

APC Back-UPS 1200VA, 230V, AVR, IEC Sockets

Battery Backup & Surge Protector for Electronics and Computers

Includes: User manual

Max Configurable Power (Watts)

650 Watts / 1.2kVA

Output Frequency (sync to mains)

50/60 Hz +/- 1 Hz Sync to mains

Topology

Line interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

6 ms typical : 10 ms maximum

Output Connections

(6) IEC 60320 C13 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

IEC 60320 C14

Cord Length

1.2meters

• Operating altitude: 0 - 3000 m
• Operating temperature (T-T): 0 - 40 C
• LED indicators: Yes
• Manual: Yes
• Operating relative humidity (H-H): 0 - 95%
• Cable length: 1.2 m
• Input operation voltage (max): 300 V
• Output frequency: 50/60 Hz
• AC outlet types: C13 coupler
• Power plug: C14 coupler
• USB port type: USB Type-B
• International Protection (IP) code: IP20
• Waveform: Sine
• AC outlets quantity: 6 AC outlet(s)
• UPS topology: Line-Interactive
• Response time: 6 ms
• Typical backup time at full load: 1 min
• Battery life (max): 2 year(s)
• Certification: CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
• Output operation voltage (min): 230 V
• Input operation voltage (min): 140 V
• Output frequency regulation: 0.5 Hz
• Surge energy rating: 273 J
• Audible alarm modes: Low battery alarm
• Output operation voltage (max): 230 V
• Audible alarm(s): Yes
• Automatic Voltage Regulation (AVR): Yes
• Output voltage regulation: 10%
• Noise level: 40 dB
• Storage temperature (T-T): -15 - 40 C
• Typical backup time at half load: 5 min
• Input frequency: 50 - 60 Hz
• Input power factor: 0.54
• Output power capacity: 1.2 kVA
• Output power: 650 W
• Ethernet LAN (RJ-45) ports: 2
• Battery recharge time: 8 h
• USB 2.0 ports quantity: 1
• Compliance certificates: RoHS
• Cables included: Input power cable
• Package width: 235 mm
• Package height: 297 mm
• Package weight: 8.6 kg
• Width: 140 mm
• Depth: 390 mm
• Height: 190 mm
• Weight: 7.6 kg
• Battery technology: Sealed Lead Acid (VRLA)
• Product colour: Black
• Harmonized System (HS) code: 85078000
• Package depth: 495 mm
• Form Factor: Compact
