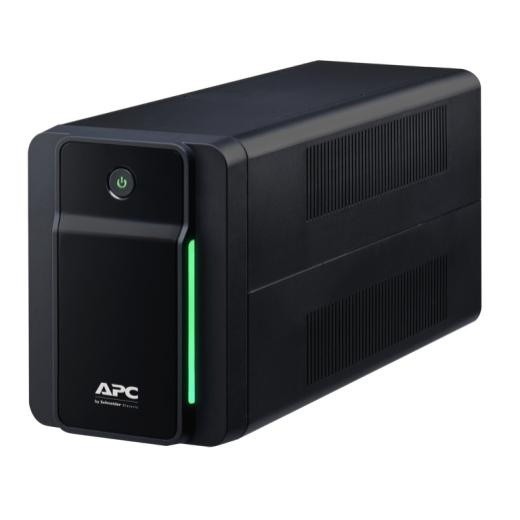

APC Back-UPS 750VA, 230V, AVR

APC Back-UPS 750VA, 230V, AVR, IEC Sockets

Battery Backup & Surge Protector for Electronics and Computers

Includes: User manual

Output power capacity

410 Watts / 750VA

Output Connections

(4) IEC 60320 C13 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

IEC 60320 C14

Cord Length

1.2meters

Output

Max Configurable Power (Watts)

410 Watts / 750VA

Output Frequency (sync to mains)

50/60 Hz +/- 1 Hz Sync to mains

Topology

Line interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

6 ms typical : 10 ms maximum

• Operating altitude: 0 - 3000 m
• Operating temperature (T-T): 0 - 40 C
• LED indicators: Yes
• Manual: Yes
• Operating relative humidity (H-H): 0 - 95%
• Cable length: 1.2 m
• Input operation voltage (max): 300 V
• Output frequency: 50/60 Hz
• Input frequency: 50/60 Hz
• AC outlet types: C13 coupler
• Power plug: C14 coupler
• USB port type: USB Type-B
• International Protection (IP) code: IP20
• Waveform: Sine
• UPS topology: Line-Interactive
• AC outlets quantity: 4 AC outlet(s)
• Response time: 6 ms
• Typical backup time at full load: 1 min
• Typical backup time at half load: 8.5 min
• Battery life (max): 2 year(s)
• Certification: CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
• Output operation voltage (min): 230 V
• Output power: 410 W
• Input operation voltage (min): 140 V
• Output frequency regulation: 0.5 Hz
• Surge energy rating: 273 J
• Input power factor: 0.63
• Audible alarm modes: Low battery alarm
• Surge protection: Yes
• Output operation voltage (max): 230 V
• Audible alarm(s): Yes
• Automatic Voltage Regulation (AVR): Yes
• Output voltage regulation: 10%
• Noise level: 40 dB
• Output power capacity: 0.75 kVA
• Storage temperature (T-T): -15 - 40 C
• Ethernet LAN (RJ-45) ports: 2
• Battery recharge time: 6 h
• USB 2.0 ports quantity: 1
• Compliance certificates: RoHS
• Cables included: Input power cable
• Package width: 197 mm
• Package height: 250 mm
• Package weight: 5.9 kg
• Width: 120 mm
• Depth: 355 mm
• Height: 160 mm
• Weight: 5.4 kg
• Battery technology: Sealed Lead Acid (VRLA)
• Product colour: Black
• Harmonized System (HS) code: 85078000
• Package depth: 430 mm
• Form Factor: Compact
