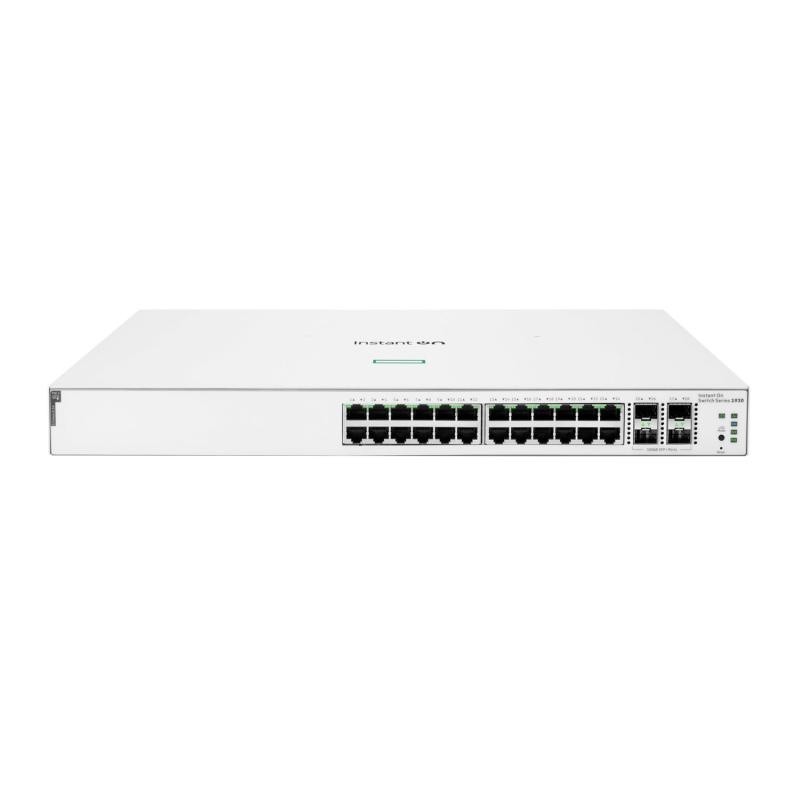

ARUBA ION 1930 24G 4SFP 195W SW

Lifecycle

• Obsolete Date 31-12-2099

Specifications

• Product dimensions (imperial) 1.73 x 17.42 x 10.42 in
• Product dimensions (metric) 4.39 x 44.25 x 26.47 cm
• Warranty Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration
• Input voltage 100 - 127 / 200 - 240 VAC
• Power consumption 280.0 W maximum, 30.0 W idle
• Ports 24 RJ-45 10/100/1000 ports, 4 SFP 1/10GbE ports
• Memory and processor ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer
• Management features Aruba Instant On Portal, Web browser, SNMP Manager
• Switching capacity 128 Gbps
• Throughput 95.23 Mpps, maximum
• PoE capability 195 W Class 4
• Weight 7.69 lb
• Weight 3.49 kg

Quickspecs

• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs
• QuickSpecs (HTML)

Overview

The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.

What's new

• Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
• Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
• 1G/10G SFP+ ports on 24-and 48-port models for fiber connectivity.
• Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
• Option to manage your switches through local web GUI.
• Limited Lifetime Warranty.

Features

Simplify Network Deployment and Management for Small Organizations

The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment.

8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.

The 24- and 48-port models include 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances.

The switch series is covered by the Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.

The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.

The Aruba Instant On 1930 switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

Keep Your Business Protected with Integrated Security Features

The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+).

The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.

Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.

Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.

Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.

Deliver High Perfomance

The Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.

Compatible products

• HPE Aruba Networking Foundational Care 3Y NBD Exch ION 1930 24G PoE Switch SVC
• HPE Aruba Networking Foundational Care 5Y NBD Exch ION 1930 24G PoE Switch SVC
• HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver
• HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver
• HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e Transceiver
• HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver
• HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver
• ARUBA ION 1G SFP LC SX 500M MMF XCVR
• ARUBA ION 1G SFP RJ45 T 100M CAT5E XCVR
• ARUBA ION 10G SFP+ LC SR 300M MMF XCVR
• HPE Networking Instant On 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
• ARUBA ION 10G SFP+ TO SFP+ 3M DAC CABLE

Documents

• Aruba Instant On 1930 Switch Series Data Sheet
• HPE Networking Instant On Switch 1930
• Are you ready to reinvent the future of work for SMBs?
• How HCI 2.0 simplifies and unlocks agility to speed digital transformation

• Operating temperature (T-T): 0 - 40 C
• AC input frequency: 50 - 60 Hz
• AC input voltage: 100 - 240 V
• Operating altitude: 0 - 3048 m
• Storage temperature (T-T): -40 - 70 C
• Built-in processor: Yes
• Quality of Service (QoS) support: Yes
• VLAN support: Yes
• Rack mounting: Yes
• Web-based management: Yes
• Power over Ethernet (PoE): Yes
• Rate limiting: Yes
• Access Control List (ACL): Yes
• Stackable: No
• Switch type: Managed
• 10G support: Yes
• Power supply included: Yes
• Flash memory: 256 MB
• IGMP snooping: Yes
• Jumbo frames support: Yes
• Link aggregation: Yes
• Full duplex: Yes
• Port mirroring: Yes
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Auto MDI/MDI-X: Yes
• Flow control support: Yes
• Power source: AC
• Installed SFP+ modules quantity: 0
• Basic switching RJ-45 Ethernet ports quantity: 24
• Spanning tree protocol: Yes
• Auto-sensing: Yes
• SFP module slots quantity: 4
• MAC address table: 16000 entries
• Switching capacity: 128 Gbit/s
• Packet buffer memory: 1.5 MB
• SSH/SSL support: Yes
• Switch layer: L2+
• Cloud-managed: Yes
• Operating relative humidity (H-H): 15 - 95%
• DHCP features: DHCP client
• Latency (10-100 Mbps): 4.7 s
• Latency (1 Gbps): 2.4 s
• Latency (10 Gbps): 1.3 s
• Power consumption (max): 280 W
• Total Power over Ethernet (PoE) budget: 195 W
• Storage relative humidity (H-H): 15 - 95%
• Processor frequency: 800 MHz
• Width: 442.5 mm
• Depth: 264.7 mm
• Height: 43.9 mm
• Weight: 3.49 kg
• Product colour: White
• Internal memory: 512 MB
• Processor model: ARM Cortex-A9
• Memory type: SDRAM / Flash
• Throughput: 95.23 Mpps
• Form Factor: 1U
