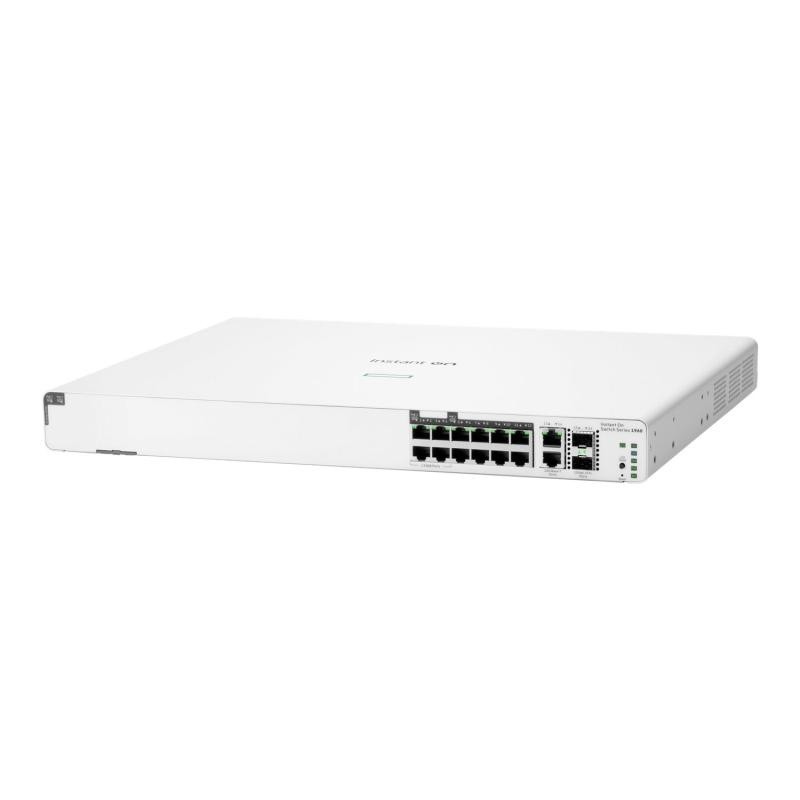

ARUBA ION 1960 8G 4P2.5 2XT 2XF SW

Lifecycle

• Obsolete Date 31-12-2099

Specifications

• Management features Aruba Instant On Cloud; Web browser; SNMP Manager
• Product dimensions (imperial) 15.86 x 17.42 x 1.73 in
• PoE capability 600W maximum, depending on model
• Throughput 238 Mpps, maximum; depending on model
• Weight 10.8 lb, maximum, depending on model
• Ports 48 10/100/1000 RJ-45 ports, 2 SFP+ 10GbE ports, 2 10GBASE-T ports, maximum, depending on model. PoE/PoE+ available on select models.
• Input voltage 100 - 240 VAC
• Operating temperature 0-40°C, 0-10,000 ft
• Weight 4.9 kg, maximum, depending on model
• Product dimensions (metric) 40.28 x 44.25 x 4.40 cm
• Power consumption 790W, maximum, depending on model
• Memory and processor Single Core ARMv7 Cortex-A9 @ 2Ghz, maximum, depending on model
• Switching capacity 320 Gbps, maximum, depending on model
• Stacking capabilities 4H height
• Warranty Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.

Quickspecs

• QuickSpecs
• QuickSpecs
• QuickSpecs (HTML)
• QuickSpecs (PDF)

Overview

Aruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.

What's new

• Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
• Limited Lifetime Warranty.
• Simplify network management by stacking up to (four) 4 Aruba Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
• For environments with heavy bandwidth needs, 10GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
• The Aruba 1960 aggregation switch comes with twelve (12) 10GBase-T and four (4) SFP+ ports, providing 10G connectivity to servers, network storage devices and access switches alike.
• Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.

Features

Each model of the Aruba Instant On 1960 Switch Series includes four 10GbE connections to connect to servers, network storage devices, or to other switches.

With PoE models, up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones, and up to 60W PoE power delivery is available for Class 6 PoE devices like pan-tilt zoom cameras and video-enabled IP-phones.

The 12-port, 24-port, and 48-port PoE models come with a power budget of 480W, 370W and 600W respectively to support the latest PoE-powered IoT devices.

High-level Gigabit with 10GbE Networking for Advanced Small Businesses

Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.

Ease of Use with Cloud-Managed Stacking

Each switch has a pull-out tag, known as a luggage tag, on the front panel of the switch.

Two connections of 10GBASE-T deliver 10GbE over copper Category 5/6a cabling for simple, affordable, high-bandwidth connections to a maximum distance of 100 meters.

Robust Security to Protect Your Network

The tag includes a QR code that includes switch ID information (SKU number, SKU name, serial number, and MAC address) for easy switch onboarding through Instant On mobile app.

Leverage 802.1X with a RADIUS server to ensure only known and authorized users can access your network.

Automated configurations and streamlined workflows allow users to manage all stack members through one single dashboard without the need for device reboot.

The Aruba Instant On 1960 Switch Series lets you use VLANs and Access Control Lists to set bounds on what data can be seen by which users.

The Aruba Instant On mobile app automatically detects members, making multiple stack members easy to setup and manage remotely.

The Aruba Instant On 1960 Switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

Simplify Network Deployment and Management for Small Organizations

The Aruba Instant On 1960 Switch series offers a complete portfolio for increased small business flexibility. It consists of six models including two (2) 24-port and two (2) 48-port models in PoE and non-PoE configurations, a 12-port multi-rate switch, and a 12-port 10-Gigabit aggregation switch.

The Aruba Instant On mobile app and cloud-based web portal make cloud-managed stacking easy — just follow the recommendations to stack up to four (4) Aruba Instant On 1960 switches and manage as a single entity.

Compatible products

• HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver
• HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver
• HPE Aruba Networking 1G SFP RJ45 T 100m Cat5e Transceiver
• HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver
• HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver
• HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
• HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
• ARUBA ION 1G SFP LC SX 500M MMF XCVR
• ARUBA ION 1G SFP RJ45 T 100M CAT5E XCVR
• ARUBA ION 10G SFP+ LC SR 300M MMF XCVR
• HPE Networking Instant On 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
• ARUBA ION 10G SFP+ TO SFP+ 3M DAC CABLE

Documents

• HPE Networking Instant On Switch 1960

• Operating altitude: 0 - 3000 m
• Operating temperature (T-T): 0 - 40 C
• AC input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz
• Wall mountable: Yes
• Storage temperature (T-T): -40 - 70 C
• Built-in processor: Yes
• VLAN support: Yes
• Rack mounting: Yes
• Web-based management: Yes
• Power over Ethernet (PoE): Yes
• Switch type: Managed
• 10G support: Yes
• SFP module slots quantity: 2
• Power supply included: Yes
• IGMP snooping: Yes
• Jumbo frames support: Yes
• Link aggregation: Yes
• Full duplex: Yes
• Port mirroring: Yes
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Auto MDI/MDI-X: Yes
• Flow control support: Yes
• Power source: AC
• Installed SFP+ modules quantity: 0
• Spanning tree protocol: Yes
• Auto-sensing: Yes
• MAC address table: 16000 entries
• Packet buffer memory: 1.5 MB
• SSH/SSL support: Yes
• Cloud-managed: Yes
• Operating relative humidity (H-H): 15 - 95%
• Stackable: Yes
• Authentication: Port-based authentication
• Authentication type: RADIUS
• Physical stacking (units): 4
• 2.5G Ethernet (copper) ports quantity: 4
• Auto-negotiation: Yes
• Basic switching RJ-45 Ethernet ports quantity: 8
• DHCP features: DHCP relay, DHCP snooping
• Latency (1 Gbps): 1.8 s
• Switching capacity: 116 Gbit/s
• Latency (10-100 Mbps): 4.1 s
• Latency (10 Gbps): 2.8 s
• Flash memory: 512 MB
• Half duplex: Yes
• Power consumption (max): 790 W
• Total Power over Ethernet (PoE) budget: 480 W
• Management protocols: SNMPv1, SNMPv2c, SNMPv3
• Supported network protocols: HTTPS
• Storage relative humidity (H-H): 15 - 90%
• Processor frequency: 800 MHz
• Width: 443 mm
• Depth: 350 mm
• Height: 43.9 mm
• Weight: 5.24 kg
• Internal memory: 1024 MB
• Processor model: ARM Cortex-A9
• Memory type: DDR3-SDRAM
• Throughput: 172 Mpps
• Form Factor: 1U
