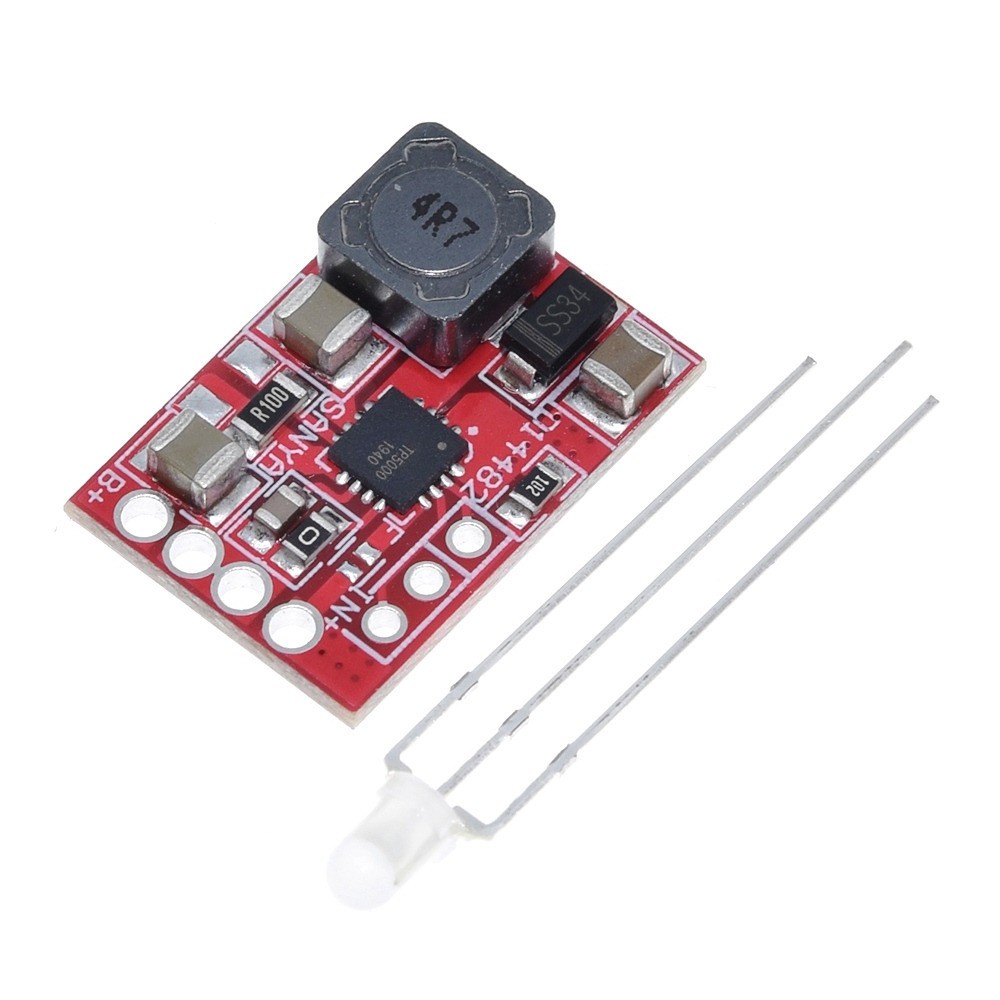

BMS 1S incarcare si protectie 1 acumulator Li-Ion sau LiFePO4 cu TP5000 (TPA865)

Produsul este nou!

Specificații în limba engleză:

Switch buck mode has higher efficiency and fever than linear charging circuit.

Charging current 1A, in constant current charge to maintain 1A.

No additional heat dissipation is needed, which reduces the influence of heating on charging current.

Reduce charging time.

Ordinary lithium ion lithium polymer batteries or lithium iron phosphate batteries can be selected, and the setting can be changed with only one jumper.

Input voltage: 4.5-9V

Output voltage: 4.2V/3.6V plus or minus 1% (PCB default lithium-ion battery 4.2V)

Output current: default 1A

The whole plate uses precious cermet capacitors, X7R temperature characteristics, performance + Safety + stability far exceed tantalum capacitors!

Copper band 5A large current small volume inductor, full closed magnetic field, low loss and low interference!

Single-sided machine mounting, the whole 4mm ultra-thin, small area and good heat dissipation, easy installation and sticking of radiator with copper exposed on the back

Based on DC-DC voltage reduction, the efficiency is much higher than that of linear charging circuit, and the fever is much smaller.

The charging current is 1A, but the input current is only about 0.7A.

Optional lithium iron phosphate batteries or ordinary lithium ion/lithium polymer batteries can be set with only one jumper

Small size, 1 dime size, 1A charging without additional heat dissipation

With overheating protection, overheating will automatically reduce the current to prevent burnout

Full-size 1210 precious metal multilayer ceramic capacitor X7R, the most stable temperature characteristics

Full of self-stop, double-color charging status indicator
