Boxe Braun model L 710/1

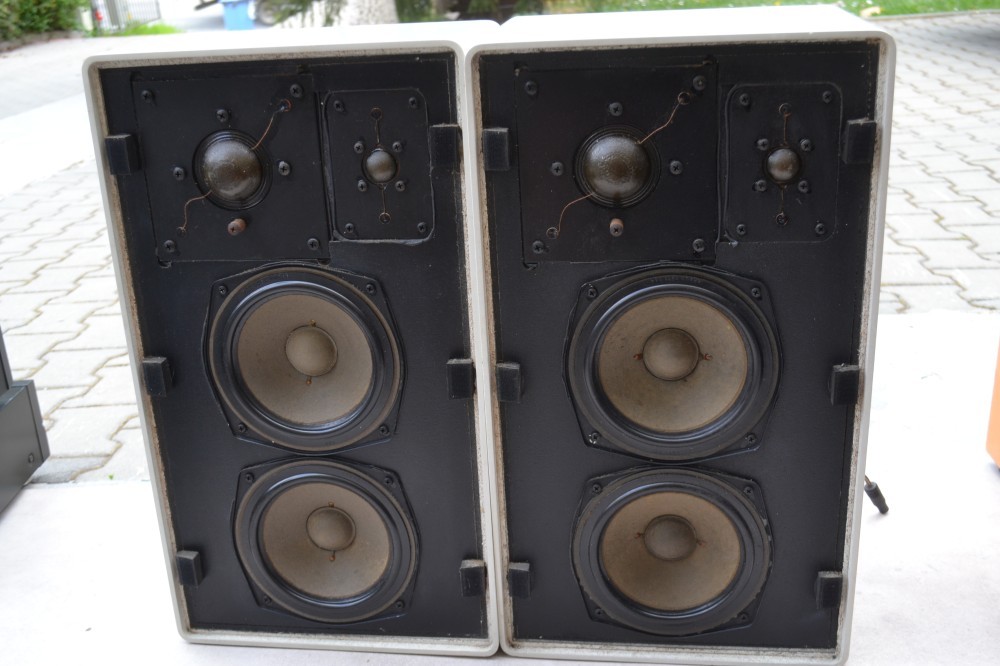

  Boxe Braun model L 710/1 : pe 3 cai, bass diametru de 2x17 cm, suspensii cauciuc, culoare alba, plase de protectie metalice, foarte grele, impedanta 4 ohmi, putere 40 W, nade in West Germany, dimensiuni H=55cm, L=31cm, A=24cm, bass tip compresie, poze reale.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: HiFi-Lautsprechereinheit L 710/1 - Braun; Frankfurt

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 310 x 550 x 240 mm / 12.2 x 21.7 x 9.4 inch

• Notes
• Zwei Tiefton-Systeme 18 cm, ein Mittelton-System 5 cm, ein Hochton-System 2,5 cm, Übertragungsbereich 25-25000 Hz, Nennbelastung 40 Watt, Impedanz 4 Ohm, Weichen 500 Hz und 4000 Hz, Fußgestell.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Price in first year of sale
• 598.00 DM

• Mentioned in
• -- Original-techn. papers. (Weiler Angebot 1973/74)
