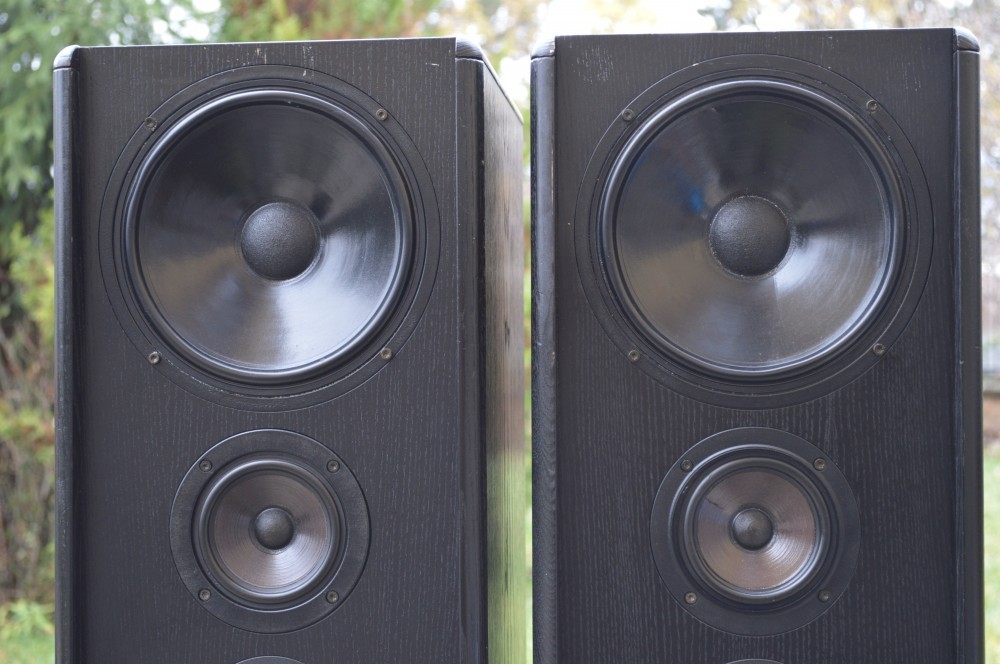

Boxe IQ Ted 4

Boxe  IQ Ted 4 : pe 3 cai, 4 difuzoare, bass tip reflex, cutiile sunt din lemn, tip coloana, impedanta  4-8 ohmi, 130W/190W, frecventa de raspuns 23-24000Hz, poze reale, lipseste o bucata pal sub rama de protectie pe care scrie "IQ", made in West Germany.

General

• Manufacturer: IQ
• Model: TED 4
• Year of construction: 1990
• Made in: Essen, Germany
• Color: real wood ash black, alternatively in cherry brown
• Dimensions: 270 x 1030 x 310 mm (W x H x D)
• Weight (approx.): 21 kg
• Original price (approx.): DEM 1800, - (pair)

Technical specifications

• Design: 3 1/2-way bass reflex tower speaker
• Chassis:
  • Bass: 2x 21 cm bass speaker Vifa M21WG-09 8Ohm or M21WJ-49 8Ohm
  • Midtone: Nokia LPM 105/19/135 or Nokia LPM 100/19/135
  • Tweeter: Vifa D25TG-05-06 or D26TG-05-06 calotte
• Power rating (nominal / music): 130 watts / 190 watts
• efficiency:
• Frequency response: 23 - 24,000 Hz
• Transition areas: (for LS with several chassis)
• Impedance: 4 ohms
• AUDIO code (AK): 45

Special features

• Real wood veneer
