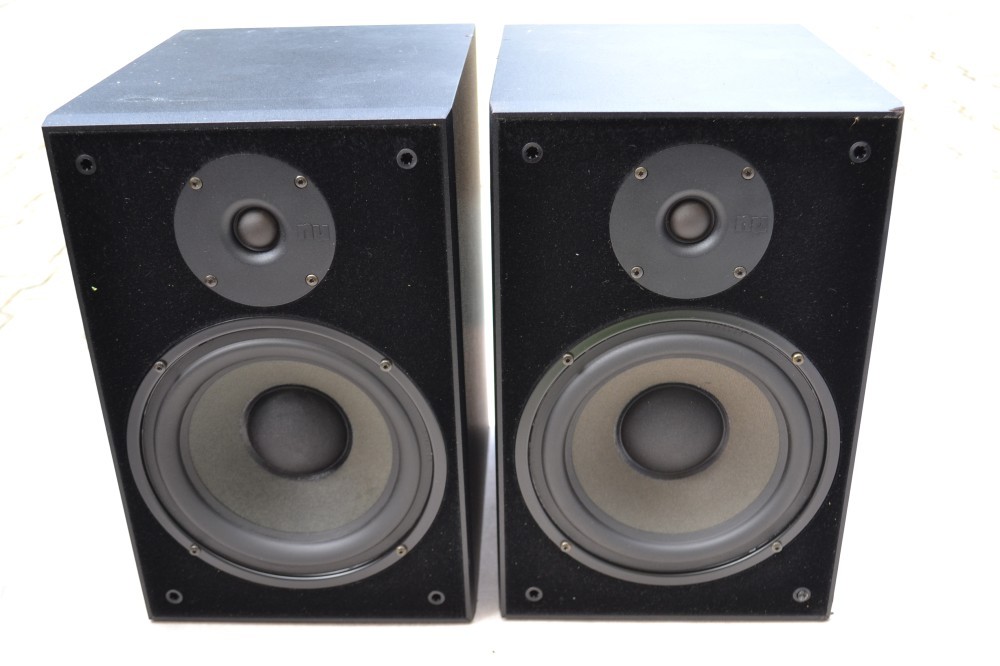

Boxe Nubert NuBox 360

 Boxe Nubert NuBox 360 : plase de protectie, poze reale, putere 100/150 W, dimensiuni H=38, L=25, A=30cm, frecventa de raspuns 58-20000 Hz, made in Germany.

General

• Manufacturer: Nubert
• Model: nuBox 360
• Years of manufacture: 1993 - ca. 2005 (in various evolutionary stages).
• Manufactured in: Germany
• Colour: black foil, beech, angular cabinet shape
• Dimensions: 380 x 245 x 292/305 mm (HxWxD), gross volume 27 litres
• Weight: 9,5 kg
• Original price approx.: 299 DM (unit price 1996,1999), 399 DM real wood veneer beech 1999 to approx. 2003; surcharge front cover blue, pink, green, grey: 20 DM

Technical data

• Construction: 2-way bass reflex, compact speaker.
• drivers:
  • Woofer: 1x 220 mm

Tweeter: 1x

• Power handling (nominal / music): 100 / 150 W
• Efficiency: 87.5 dB/1W/1m
• Frequency response: 58 - 20,000 Hz (±3 dB), 24 - 30,000 Hz according to DIN.
• Transitional ranges:
• Impedance: 4 Ohm

Special Features

• Can be upgraded with ABL-3/30, as the bass range of the nuWave 3 and nuBox 360 is virtually identical. Source: G. Nubert in the Nubert Forum, 13 February 2002, 02:07

Was built in different versions. I to V.

• End of 1995 : nuBox 360/II
• November 1996 : nuBox 360/III
• nuBox 360/IV: discontinued, as the foam surrounds disintegrate after 15-20 years, just like their predecessors.
• December 1997 : nuBox 360/V, rubber surrounds, thus costly crossover
• 2000: resetting fuses for the bass driver
• Summer 2003: somewhat more effective cabinet stiffening

• Was also available as nuLine 360 in nuLine cabinet with asymmetrical tweeter. Surcharge per pair 200 €.
• End of 2005 additionally nuBox 360 LE (last Edition) in Calvados (apple tree) / front silver grey metallic or Amari (mahogany-like) / front graphite metallic for 30 cents extra. Price: 152,30 €.
