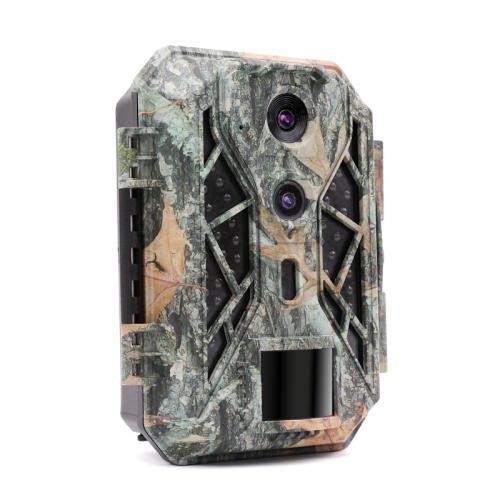

BRAUN Scouting Cam Black820 Dual Sensor

BRAUN Scouting Cam Black820 Dual Sensor

The secret observer for day and night
The Braun Scouting Cam Black820 delivers sharp day and night recordings for monitoring hunting grounds and for property protection even in 4K resolution

+++ two CMOS sensors (8MP / 2MP) for day and night +++ video resolution up to 4K +++ photo resolution up to 32 MP +++ 90° detection angle +++ trigger time 0.35 seconds +++ trigger distance up to 20 m +++ illuminated control panel +++ 2.4 '' color display +++ storage on SD card (up to 512GB) +++ weight only 322 g +++ time-lapse recordings +++ integrated microphone and loudspeaker +++

Trail cameras not only provide important information to foresters and hunters about their hunting grounds. The scouting cams also help landowners with property protection and protect against theft, vandalism or rubbish offenders. Be it the stray game or the sneaking burglar, all processes can be recorded even in high 4K resolution on the videos and photos of the Scouting Cam Black820 Dual Sensor from Braun Photo Technik.

The Braun Scouting Cam Black820 Dual Sensor has two CMOS image sensors: The 8 megapixel sensor (32MP interpolated) especially for high-quality daytime recordings and the 2MP sensor for excellent nighttime recordings. The two sensors not only ensure brilliant illumination in the dark, but also avoid the usual "clicking noise" when switching from day to night, which could frighten animals. The recordings can be saved on an SD memory card with up to 512GB. In addition, the wildlife camera also has a mini USB slot for connection to a PC and TV.

The exact resolution of the photos and videos, like numerous other parameters, can be set using the integrated, illuminated control panel and the 2.4 “TFT color display. The recordings can also be conveniently viewed on the color display. The video resolution can vary from 4K (10fps) to 2.7K (20fps) and 1080p (30fps) up to 720p (60fps) or 1080P / 720p / VGA (30fps with the night sensor). The image resolution can be changed between 32 to 5MP (8 to 2 MP with night sensor). The Braun Scouting Cam Black820 Dual Sensor has three different sensitivities of the PIR motion sensor with a detection angle of 90 degrees, a trigger distance of up to 20 meters and a trigger time of around 0.35 seconds.

In addition, the Black820 has an integrated microphone, a loudspeaker, password protection, a time-lapse mode, as well as an indication of date, time, moon phase and temperature. With the help of the continuous recording function, the camera can continue recording even if the memory card is full by overwriting the oldest files. The continuous recording function can also be deactivated. Thanks to a mounting strap or the practical bracket included in the scope of delivery, the robust and water-jet protected (IP66) wildlife camera can be easily attached to the desired location.

The operating temperatures range from -20°C to +60° C. The standby time is around eight months. Power is supplied by eight AA batteries or optionally by a 6V 2A power supply unit.

Image Sensor CMOS, 2MP (Night recordings)
CMOS, 8 MP Display Type TFT-LCD Display Size 2.4" (6.09 cm) Lens FOV 75°
FOV 100° (night sensor) Interface SD, mini USB, 6V DC Resolution (Image) 8 / 5 / 3 / 2 MP (night sensor)
32 / 20 / 16 / 12 / 8 / 5 MP Resolution (Video) 4K @ 10 fps / 2.7K @ 20 fps / 1080p & VGA @ 30 fps / 720p @ 60 fps
1080p / 720p / VGA @ 30 fps (night sensor) Triggering Interval 5 sec - 60 min Trigger Time 0.35 sec Fix method Strap, tripod, mount Exposure automatic File Format (Pictures) JPG File Format (Video) AVI Operation Temperature -20°C ~ +60°C IR LEDs 42 black LEDs (940nm) Password Security 4 digital numbers Speakers, Yes max. Night Vision / Lighting Distance 20 m Moon Phase yes Target recording time 1 sec — 24 h PIR Sensor (angle of detection) 90° PIR-Sensor (Sensitivity) High/Middle/Low Ccontinuous shooting 1 / 2 / 3 pictures Memory Medium SD (max. 512GB) Stand-by time approx. 8 months Stand-by current 0.1 mA Power Supply 8x AA batteries or 6V 1.5A power adapter Water & Dust Protection IP66 Date and Time Imprint yes Measurements 142x109x72 mm Weight 322 g Video length 3 sec - 10 min Record audio Yes (ON/OFF) Temperature stamp Yes Timelapse recording 3 sec - 24 h Endless capture Yes IR filter clicking noise No Illuminated keyboard Yes
