Cd Player Marantz CD 45 cu 2 X TDA 1540

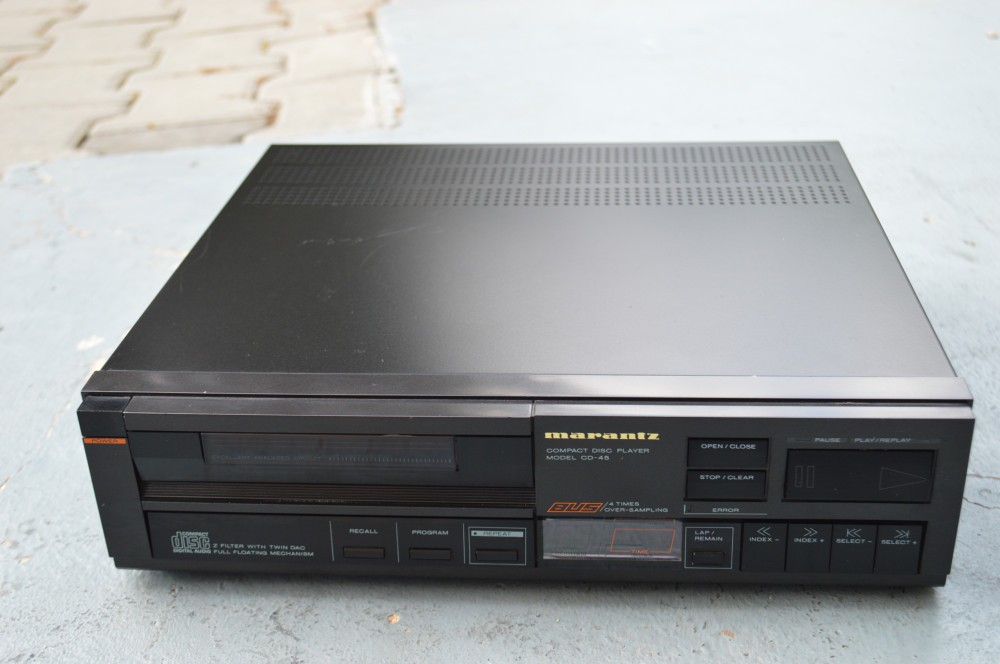

Cd Player Marantz CD 45 cu 2 X TDA 1540 : afisaj, format Midi, senzor telecomanda, multiple functii si setari, culoare neagra, poze reale, made in Belgium.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Compact Disc Player CD-45 CD45 NB TB - Marantz Sound United LLC;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 320 x 86 x 300 mm / 12.6 x 3.4 x 11.8 inch

• Notes

• A hi-fi stereo compact disc player with a digital display housed in a black metal case. Remote controllable via the Marantz Remote BUS and Easy BUS system. With a CDM-2/10 or CDM-2/29 CD mechanism, 2 x TDA1540P 14 bit linear DACS and a Z filter with 4 times oversampling. Fully floating sub-chassis to neutralize acoustic feedback, display of remaining and elapsed time, direct access to 99 tracks for quick track selection, random access memory for up to 20 tracks program playback, forward and backward track skip, variable speed forward and backward search with sound, repeat for all or selected track(s). With RCA phono sockets for Line output and Sync Rec output, terminals for Easy BUS and Remote BUS.

  Specification
  Number of channels	2
  Frequency range	20Hz - 20kHz ±0.3dB
  Dynamic range	90dB
  Signal to Noise Ratio	90dB
  Channel separation (at 1kHz)	90dB
  Total Harmonic Distortion (at 1kHz)	0.004%
  Wow and Flutter	quartz crystal precision
  D/A Conversion	16-bit equivalent through quadruple oversampling with digital filter and 14-bit D/A conversion
  Error Correction System	Cross Interleave Reed  Solomon Code (CIRC)

  Versions/Power requirements
  /NB  /  220 V AC 50Hz
  /TB  /  240 V AC 50Hz

  Power consumption:  25 watts

  Technically similar to the Philips CD150 model.

  Made in Belgium

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 229.00 GBP

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• -- Original prospect or advert (1985-86 Marantz Hi-Fi Video catalogue)
