Cd player Recorder Pioneer PDR 509

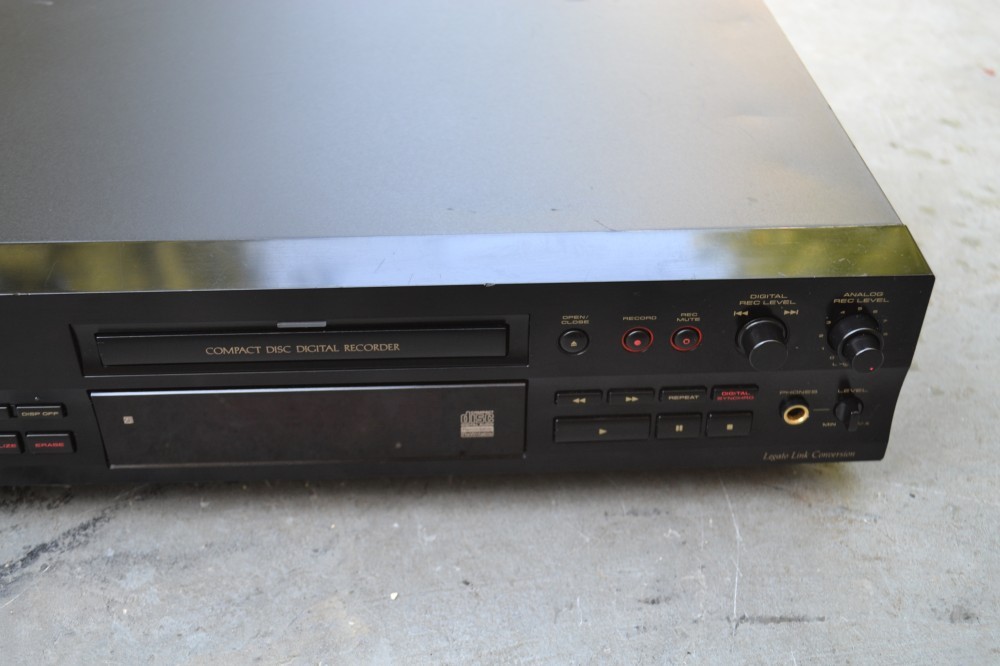

Cd Player Recorder Pioneer PDR 509 : culoare neagra, Legato Link Conver, Digital in/out, incarcare si afisaj central, mufa casti, made in Japan.

Number of Transistors
-1
Semiconductors
Main principle
Audio-Amplification
Wave bands
- without
Details
CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
Power type and voltage
Alternating Current supply (AC) / 120; 220-230 Volt
Loudspeaker
- For headphones or amp.
Material
Metal case
from Radiomuseum.org
Model: Compact Disc Recorder PDR-509 - Pioneer Corporation; Tokyo
Shape
Book-shelf unit.
Dimensions (WHD)
420 x 105 x 300 mm / 16.5 x 4.1 x 11.8 inch
Notes
A stereo hi-fi Compact Disc Digital Recorder/Player with remote control. Legato Link Conversion.

Specification
Model Compact disc audio system
Applicable discs CDs, CD-Rs and CD-RWs
Number of channels 2 channels (stereo)
Frequency characteristics 2 Hz to 20 kHz
Playback S/N 110 dB (EIAJ) (US & Canadian models)
112 dB (EIAJ) (Europe & UK models)
Playback dynamic range 98 dB (EIAJ)
Playback THD 0.002 % (EIAJ) (US & Canadian models)
0.0017 % (EIAJ) (Europe & UK models)
Playback channel separation 98 dB
Recording S/N 92 dB
Recording dynamic range 92 dB
Recording THD 0.005 % (US & Canadian models)
0.004 % (Europe & UK models)
Output voltage 2 V
Wow-flutter Less than measurement limit
Coaxial Digital output 0.5 Vp-p ±20 % (75 Ω)
Optical Digital output -15 to -21 dBm (wavelength: 660 nm)
Input jacks
Optical digital input jack
Coaxial digital input jack
Audio LINE input phono jacks
Control IN jack
Output jacks
Optical digital output jack
Coaxial digital output jack
Audio LINE output phono jacks
Versions/Power requirements
US & Canadian models / 120 V AC 60 Hz
Europe & UK models / 220-230 V AC 50/60 Hz

Power consumption 18 W

Net weight (2.2 lb = 1 kg)
3.9 kg / 8 lb 9.4 oz (8.59 lb)
Literature/Schematics (1)
- - Manufacturers Literature (Operating Instructions PDR-590 dated 1999)
Literature/Schematics (2)
- - Manufacturers Literature (Service Manual PDR-509 dated Aug 1999)
