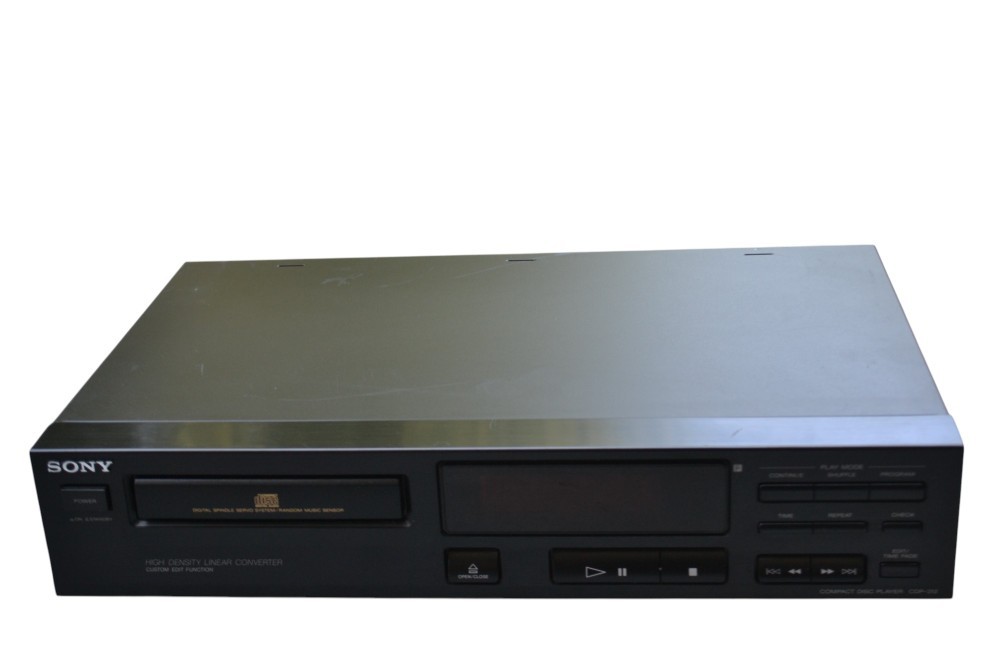

CD player Sony CDP 312

Cd player Sony CDP 312- MADE in France, negru, afisaj, poze reale.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 120; 220-230; 240; 110-120; 220-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Compact Disc Player CDP-312 - Sony Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 100 x 295 mm / 16.9 x 3.9 x 11.6 inch

• Notes

• A stereo hi-fi compact disc player with remote control RM-D320. High Density Linear Converter. RCA phono sockets for fixed Line Out.

  Specification
  Laser (KSS-240)	Semiconductor laser
  Wavelength	780-790nm
  Frequency response	2 Hz - 20 kHz ±0.5 dB
  Signal to noise ratio	More than 97 dB
  Dynamic range	More than 95 dB
  Harmonic distortion	Less than 0.005%
  Channel separation	More than 93 dB
  Outputs
  Line Out (Fixed)	Output level 2V (at 50 kΩ) Load impedance over 10 kΩ

  Versions/Power requirements
  Canadian model /  120V AC 60Hz
  AEP model /  220-230V AC 50/60Hz
  UK model /  240V AC 50/60Hz
  Australian model /  240V AC 50Hz
  E model /  110-120V, 220-240V AC 50/60Hz adjustable
