Cd Player Studer Revox A 725 Defect

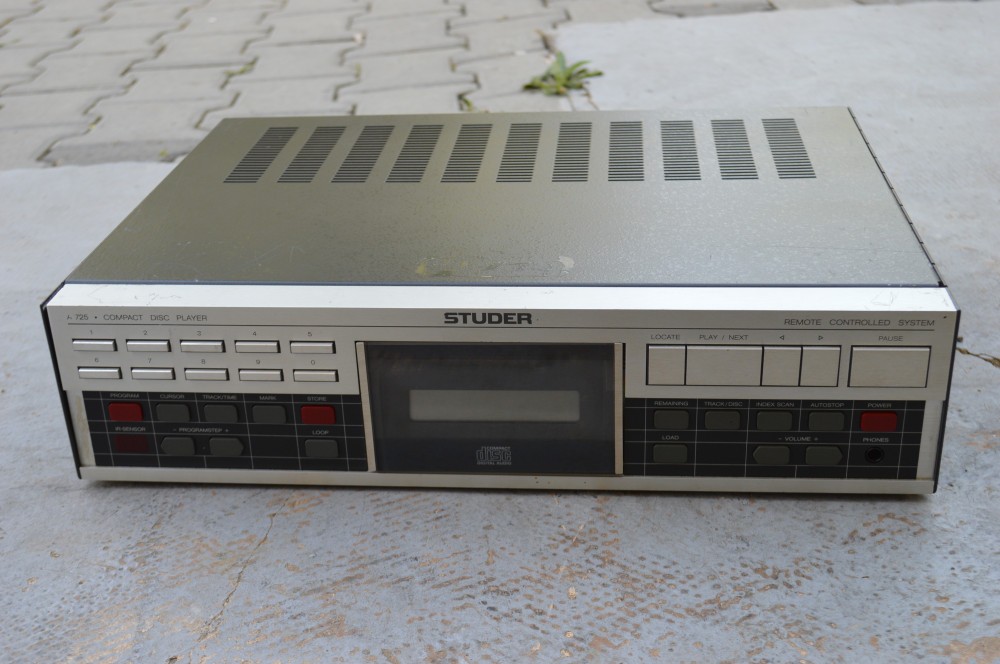

  Cd Player Studer Revox A 725 Defect : nu raspunde la butoane, de pe butonul ''1'' porneste, se aprinde afisajul dar nu scoate sertarul, poze reale.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 100; 120; 140; 200; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Compact Disc Player A725 - Studer GmbH, Willi ReVox;

• Shape
• Rack

• Dimensions (WHD)
• 450 x 109 x 332 mm / 17.7 x 4.3 x 13.1 inch

• Notes
• Model A725 is the first professional CD-Player from Studer.
  Model A725 QC (Quality Control) has a special output option for use in combination
  with a Compact Disc Test System from Koch Records, Austria.

  Uses the Philips CDM-1 drive and first generation Philips chipset:
  SAA7010 CD-Decoder
  SAA7000 Interpolation
  SAA7020 Error correction
  SAA7030 Fourfold-Oversampling and digital filter
  TDA1540 14 + 2 bit D/A converter (one per audio channel).
  IR remote control. Fixed (transformer balanced) and variable output.

  Erster professioneller CD-Player des Herstellers. A725 QC hat spezielle
  Ausgänge für die Anwendung in einem CD-Testsystem der Firma Koch Records, Österreich.
  Verwendet das Philips CDM-1 Dreharm-Laufwerk und den Philips CD-Chipsatz der 1. Generation.
  Nur analoge Ausgänge,
  Festpegel (symmetrisch erdfrei über XLR-Anschlüsse und Cinch) und regelbar (nur Cinch).
  Regelbarer Kopfhörerausgang.
  Ähnlich wie Revox B225, jedoch abweichende Ausstattung und Bedienphilosophie.
  Breite mit 19" Winkeln 483 mm.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 2,900.00 DM

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
