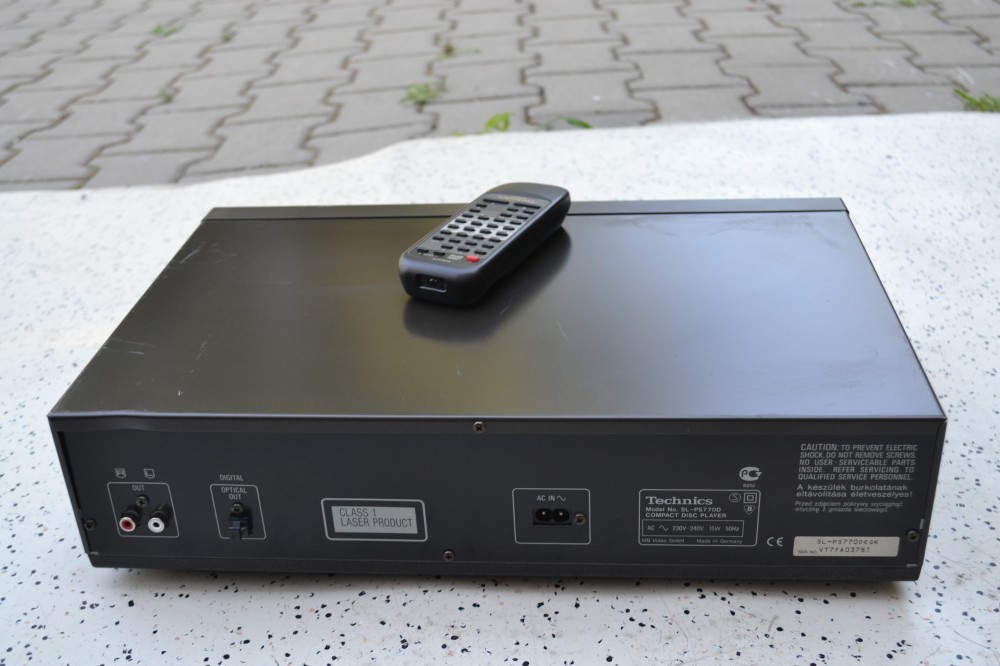

Cd player Technics SL PS 770 D cu telecomanda

Cd player Technics SL-PS 770 D cu telecomanda: optical out, peak search, auto cue, random, MASH,  acces direct, multiple functii, iesire casti cu volum separat, class AA, made in Germany .

The D/A converter of the SL-PS770D included an S-advanced MASH Class A DAC. This circuitry reduced noise and decreased crosstalk between channels by using a configuration of three LSIs, with one chip for S-advanced MASH and two chips for independent left and right PWM circuits. Using a Class A DAC for the D/A converter section achieved ideal PWM waveforms. Also, virtual-battery-operated power supply circuitry was included to prevent noise loop interference from the power supply and digital circuits. Use of separators mixed with bamboo fibre for the electrolytic capacitors enabled reproduction with unwelcome incidental noise limited. THCB (Technics hybrid construction base) achieved excellent vibration damping characteristics.

Specifications
Disc format: CD

Digital converter: MN64733-D, 1 bit MASH

CD Mechanism: CDM-12.1/15

Frequency response: 2Hz to 20kHz

Dynamic range: 100dB

Signal to Noise Ratio: 115dB

Total harmonic distortion: 0.0023%

Line output: 2V

Digital connections: optical

Dimensions: 430 x 114 x 290mm

Weight: 4kg

Accessories: remote control

Year: 1997

Price: GBP £250 (1997)
