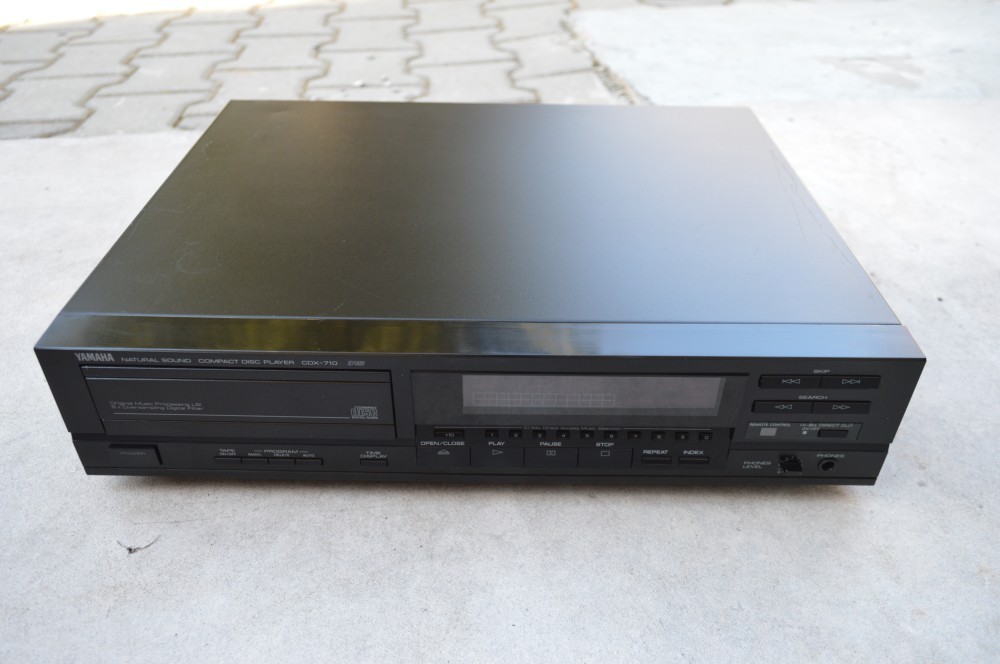

Cd player Yamaha CDX 710

  Cd player Yamaha CDX 710 : acces direct, iesire casti cu volum separat, senzor telecomanda, repeat, time display, digital out, negru, poze reale.

General

• Manufacturer: Yamaha
• Model: CDX-710
• Year built: 1988
• Made in: Japan
• Color: black, silver
• Power consumption: 20 W
• Dimensions: 43,5x10,3x35,2cm
• Weight: 5,5 Kg
• Original price approx.: 800,- DM

Connections

• Number of inputs:
  • list the inputs here
• Number of outputs: 3
  • Line-Out Stereo (2x Chinch), Digital-Out (coaxial, Chinch), Headphone-Out (6,3 mm stereo jack, adjustable)

Technical Data

• Transducer:
• Frequency response: 2-20000 Hz
• Dynamic range: > 100 dB
• Signal-to-noise ratio: > 106 dB
• Distortion factor: < 0,005%
• Kanaltrennung: >100 dB
• Output impedance: 560 Ohm
• Index search: Yes
• Shuffle: Yes (Program AUTO = Random Sequence Play)
• Repeat Functions: Disc, Title, A-B Sequence
• Title programming: 24 titles (also negative programming = delete, omit title)
• Overplay Aids: Yes
• CD-Text: No
• MP3 support: No
• Pitch control: No
• Auto play: No
• Plays CD-R/CD-RW:

Special Features

• HI-BIT Direct Out (switchable, analogue out with or without analogue filter)
• Timer Play: Start with first track of CD or first programmed track
• Memory Backup: Programmings remain stored even after disconnection from the mains (1 hour on = 1 week storage time)

Specifications

Disc format: CD

Digital converter: 2 x PCM56P-J

CD Mechanism: TAOHS-JP1

Frequency response: 2Hz to 20kHz

Dynamic range: 100dB

Signal to Noise Ratio: 106dB

Channel separation: 100dB

Total harmonic distortion: 0.005%
