Cititor Smartcard ChipDrive micro 120 v4.3(710)

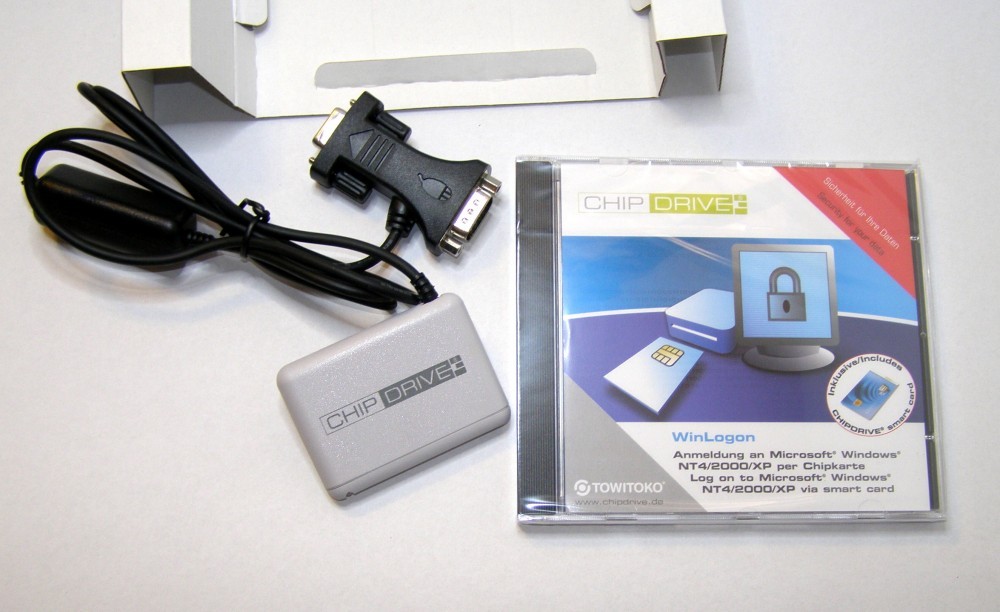

Cititor Smartcard ChipDrive micro 120 v4.3 Produs nou. A single serial port connection makes the micro 120 simple to install. Like the micro 110 the micro 120 has a serial passthrough connector cable for use with a serial mouse. For the power supply a NiMH battery is integrated into the cable that ensures card current supply in any environment. The NiMH battery recharges itself from the serial port automatically and never needs to be replaced. Integrated red status indicator light. Weight 110 grams EMI compatibility CE 89/336 Temperature range -10 to +50 C Card interface life 100000 mating cycles Contact material gold plated brass Card frequency 3.57 MHz Card current supply 0 to 55 mA Interface PC serial connection RS232 V.24 Power supply from serial port buffered by maintenance-free NiMH battery Display red status LED Dimensions 66 x 46 x 11 mm Body color RAL 7035 (light gray) Protocols T=0 T=1 2-Wire 3-Wire I2C over 40 memory card types supported Standards ISO 7816-3 ff. PC/SC OCF EMV3.0 GSM11.11 FCC UL CE Printable area 56 x 38 mm (2/0 to 4/4 colors) Connection cable 120 cm 9 pol. SUB-D black Interface speed T=0: 4800 .. 38400 Baud (PTS) T=1: 4800 .. 115200 Baud (PTS) Sync. protocols: 4800 .. 115200 CPU type 4 MHz Microchip controller Special features integrated mouse passthrough two M3 mounting threads NiMH rechargeable battery OEM-packaging Shipping contents PE-bag 120 x 160 mm CHIPDRIVE micro 110 or 120 connection cable installation guide sheet two adhesive pads
