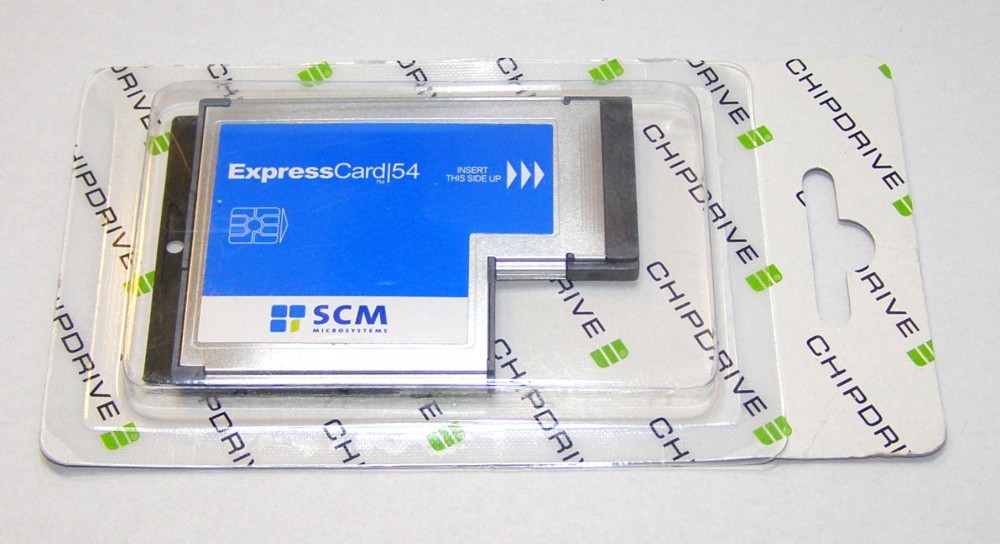

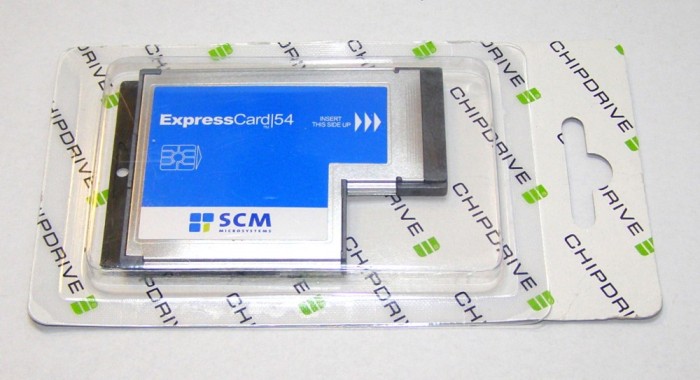

Cititor Smartcard SCM ExpressCard 54 (737)

Cititor Smartcard SCM ExpressCard 54 Produs nou. Product description The ExpressCard modules are smaller and compacter than todays PC Card. Furthermore they allow manufacturers to quickly qualify and easily integrate the new form factor which is based on the ubiquitous USB interface standard and brings all related benefits including high-speed performance reliability and proven technology. The reader is based on SCM STC II controller chip an embedded single chip solution for SmartCard readers that supports multiple interfaces multiple reader devices and all relevant security standards. The STC II chip was the industrys first to offer On-board Flash allowing future firmware and application enhancements. Suitable for HBCI banking. Technical specifications Host Interface - ExpressCard 54 - Full speed USB 2.0 (12 Mbps) / USB 3.0 compatible - CCID compliant SmartCard Interface - T=0 T=1 protocol support - Memory card support through SCM MCard API - Communication speed up to 344105 bps (DI) - Frequency up to 8 MHz (FI) - Support ISO 7816 Class A and AB SmartCard SmartCard Connector - 8 contacts - ISO location - 100000 insertions - Sliding contacts Dimensions: ExpressCard 54 (LWH 75 x 54 x 5 mm) Weight: 25 grams Operating Temperature: 0°C to 50°C 95% humidity non-condensing Operating System Windows 98 Windows ME Windows 2000 Windows XP Server2003 Windows Vista 32/64 bits Windows 7 32/64 bits Windows 8 32/64 bit Windows 10 32/64 bit API PC/SC CT-API (through wrapper on top of PC/SC) Approvals FCC Class B part 15 UL CE VCCI BSMI Australia/NZ MIC-Korea on request Microsoft WHQL 2000 XP Server 2003 ExpressCard EMV 2000 Level 1 Environmental RoHS WEEE Packaging content SCR3340 Hardcase
