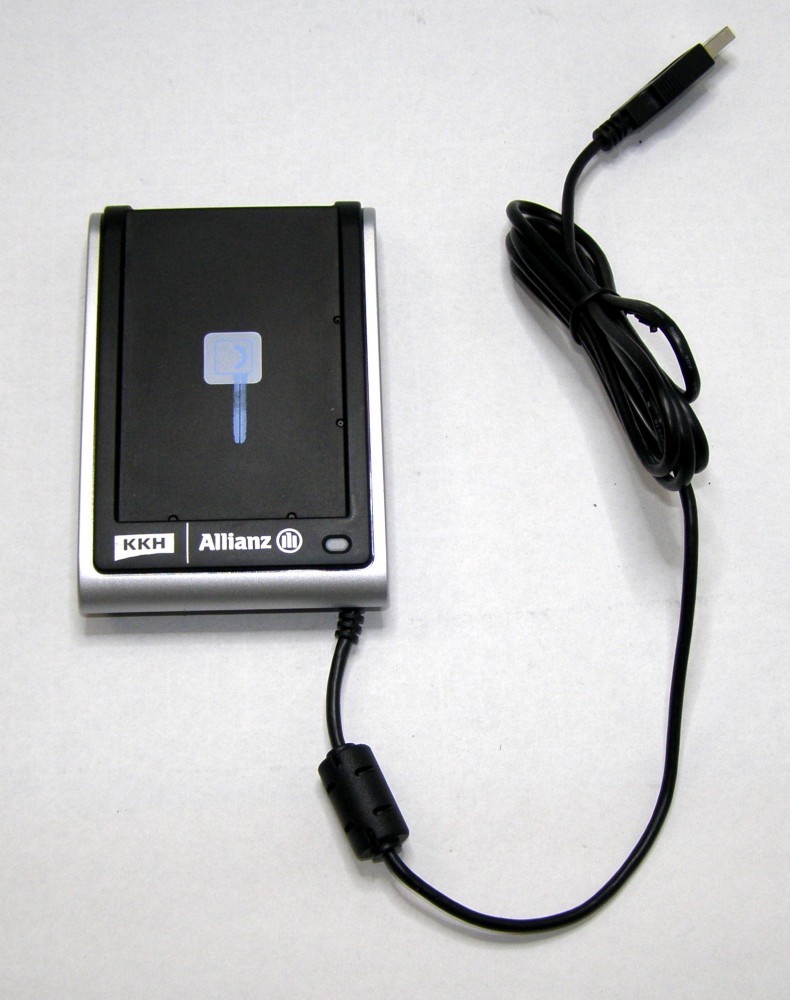

Cititor Smartcard SDI011(770)

Cititor Smartcard SDI 011 The SDI011 dual interface reader combines contact and contactless interface capabilities to support a wide variety of identification applications. It is widely used for applications such as electronic ID and ePassport e-Banking and e-Commerce. The SDI011 is based on ISO 7816 for the contact interface and on ISO 14443 at 13.56 MHz supporting type A and B compliant contactless smart cards. Applications - HBCI Banking - New ID card - Charging the money card - Business cards - Building access Host Interface Full speed USB (12 Mbps) / USB 3.0 compatible High Bus powered device CCID compliant SmartCard Interface - T=0 T=1 protocol support - Communication speed up to 344105 bps (PPS FI parameter) - Frequency up to 8 MHz (PPS DI parameter) SmartCard SmartCard Connector 8 contacts (ISO position) 100000 insertions Sliding contact Contactless ISO 14443 A and B (1356 MHz) Supported Standards - ISO 14443 Part 1 - 4 - MIFARE: Classic 1K & 4K Plus DESFire Ultralight - FeliCa - NFC Forum Tag Typ 1 2 3 4 Protocol support T=0 T=1 Communication speed: up to 848 Kbit/s Display: Three color status LED Power: through USB Bus Operating Temperature: 0°C to +50°C Operating System Windows 98 SE Windows ME Windows 2000 Windows XP 32/64-bit Windows Vista 32/64-bit Windows 7 32/64-bit Windows 8 32/64 bit Windows 2003 Server 32/64-bit Windows 2008 Server 32/64-bit
