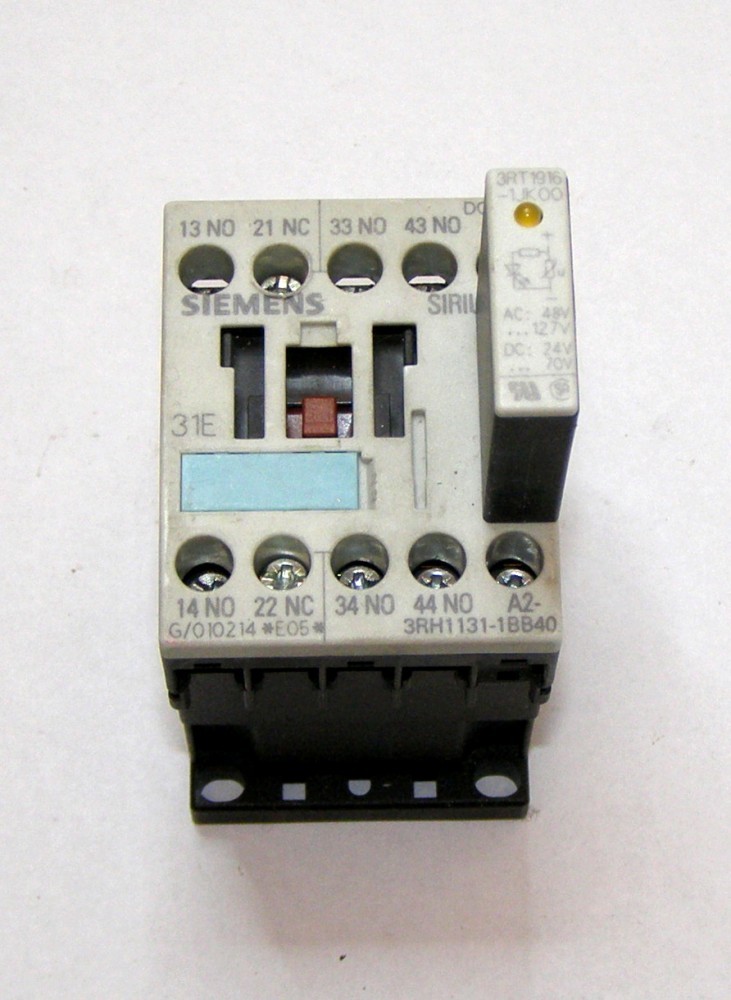

Contactor Siemens 3RH1131-1BB40 actionare 24 Vdc 3NO+1NC 6A 250 Vac(583)

Contactor Siemens 3RH1131-1BB40 actionare 24 Vdc 3NO+1NC 6A 250 Vac General details: product brand name SIRIUS Product designation contactor relay Size of the contactor S00 Protection class IP / on the front IP20 Degree of pollution 3 Insulation voltage / with degree of pollution 3 / rated value V 690 Installation altitude / at a height over sea level / maximum m 2000 Ambient temperature &bull during transport &degC -55 &hellip +80 &bull during storage &degC -55 &hellip +80 &bull during operating &degC -25 &hellip +60 Contact reliability one incorrect switching operation of 100 million switching operations (17 V 1 mA) Resistance against shock 10g / 5 ms and 5g / 10 ms Impulse voltage resistance / rated value kV 6 Item designation &bull according to DIN EN 61346-2 K &bull according to DIN 40719 extendable after IEC 204-2 / according to IEC 750 K &bull according to DIN EN 81346-2 K 3RH1131-1BB40 Page 1/ 12/23/2013 subject to modifications 5 © Copyright Siemens AG 2013Mechanical operating cycles as operating time &bull of the contactor / typical 30000000 &bull of the contactor with added auxiliary switch block / typical 10000000 &bull of the contactor with added electronics-compatible auxiliary switch block / typical 5000000 Control circuit: Type of voltage / of the controlled supply voltage DC Control supply voltage &bull for DC / rated value V 24 operating range factor control supply voltage rated value / of the magnet coil &bull for DC 0.8 &hellip 1.1 Pull-in power / of the solenoid / for DC W 3.2 Holding power / of the solenoid / for DC W 3.2 Auxiliary circuit: Product extension / auxiliary switch Yes Identification number and letter for switching elements 31 E Contact reliability / of the auxiliary contacts 1 faulty switching per 100 million (17 V 1 mA) Number of NC contacts / for auxiliary contacts 1 &bull delayed switching 0 &bull instantaneous switching 1 &bull asynchronous switching 0 &bull lagging switching 0 Number of NO contacts / for auxiliary contacts 3 &bull instantaneous switching 3 &bull delayed switching 0 &bull asynchronous switching 0 &bull leading switching 0 Number of changeover contacts &bull for auxiliary contacts 0 &bull of the auxiliary contacts / instantaneous switching 0 Operating current &bull at AC-12 / maximum A 10 &bull at AC-15 &bull at 230 V / rated value A 6 &bull at 400 V / rated value A 3 &bull at 500 V / rated value A 2
