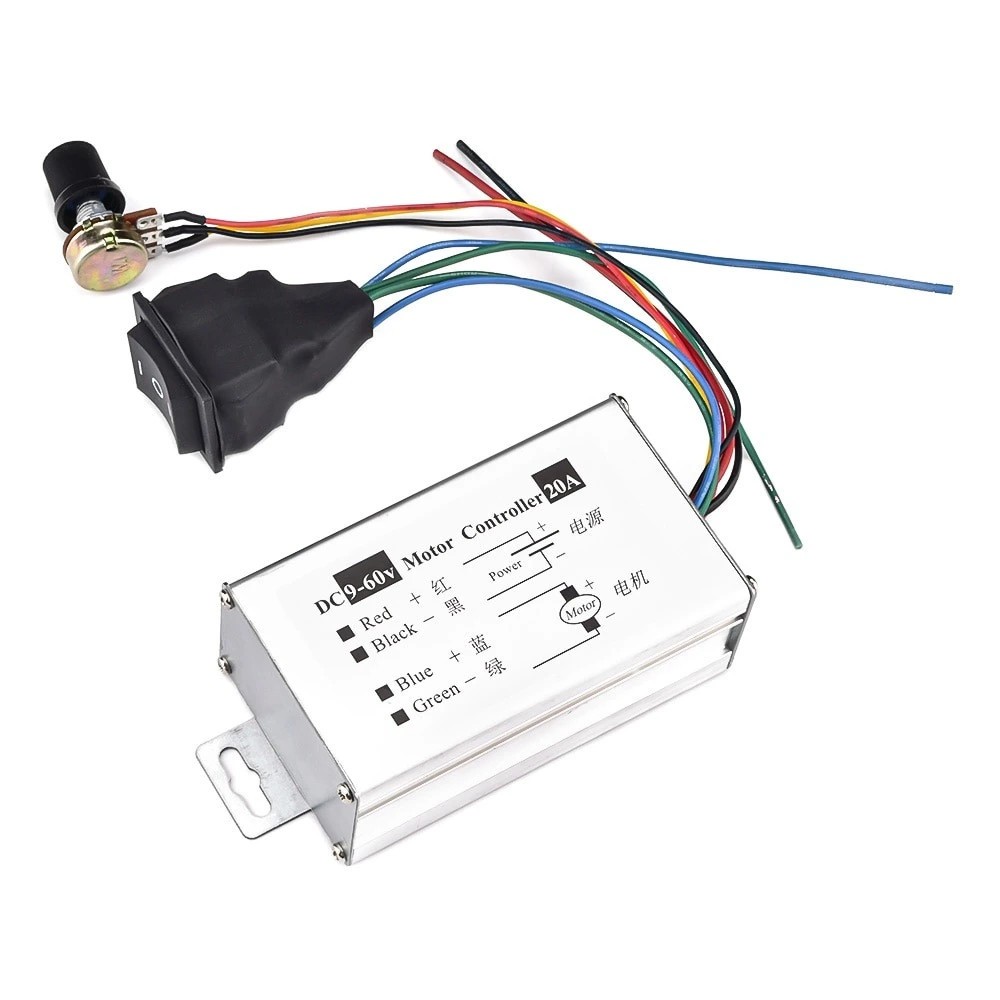

Controler de reglare a turatiei motorului 20A - 1200W PWM DC 9-60V (c.8128D)

Produsul este nou!

Specificații în limba engleză:

1. The speed governor can control the speed of the motor to change steplessly from the original 0%-100%

2. The technology is extremely advanced

3. Low heat generation has been widely and stably used in industrial production

4. High efficiency

5. Large torque

Specifications:

Input voltage: DC9-60V

Output Voltage: Linear under load

Output current: 0-20A (within 10A for long-term use, pay attention to keep the module unobstructed for heat dissipation)

Limit power: 1200W

Speed regulation type: PWM regulation

Speed regulation mode: potentiometer (linear)

Speed range: 0—100%

Control frequency: 25KHZ

Forward and reverse: support

Installation size: the center distance of the fixing hole on the back is 104MM

Potentiometer according to the installation hole: 7MM

Precautions:

1. The DC motor governor is connected to the DC power supply, and must not be directly connected to the household 220V AC power

2. Note that this is not a power supply module, the motor must be connected to adjust the speed, and the output of the multimeter will not change if the motor is not connected.

The motor can be connected regardless of positive or negative.

When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence.

3. This governor is used for brushed DC motors

4. Not suitable for speed regulation of DC brushless motor; nor can it be used as a voltage regulator or voltage stabilizer!

Power wiring:

Red thick - power input positive

Black and thick - power input negative

Blue thick - connect to the motor positive

Yellow thick - connect to the negative pole of the motor
