Controler regulator driver PWM 15A 400W MOS FET Trigger optocuplor releu mosfet

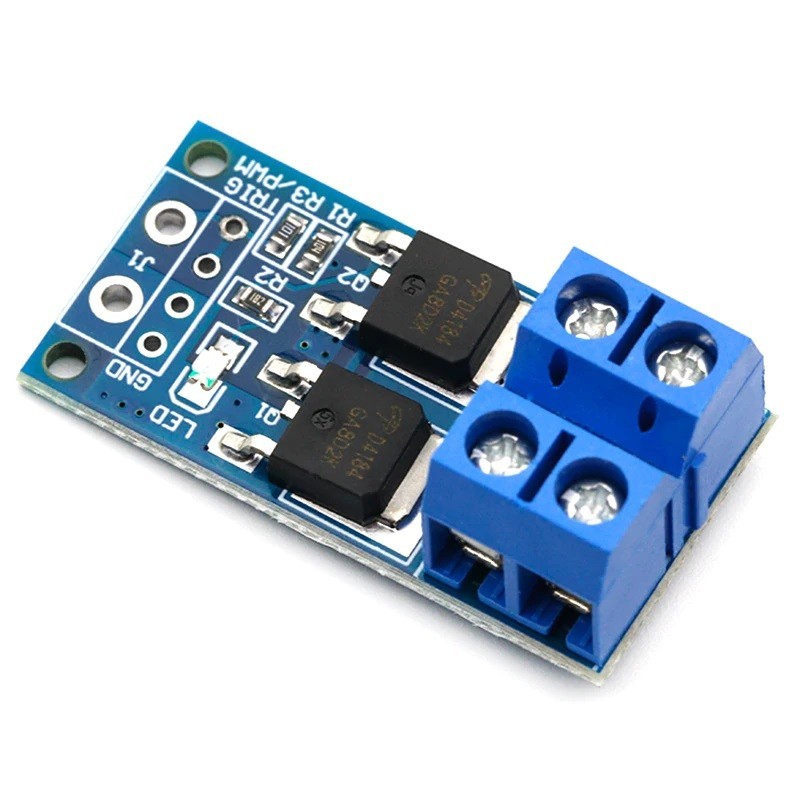

1. Using dual MOS parallel active output, it is 15A and 400W at normal temperature, which satisfies the use of most equipments;

2. Wide voltage, Support for PWM;

3. Easily control the high-power equipment.

Specifications and Applications

1: Working voltage: DC 5V--36V;

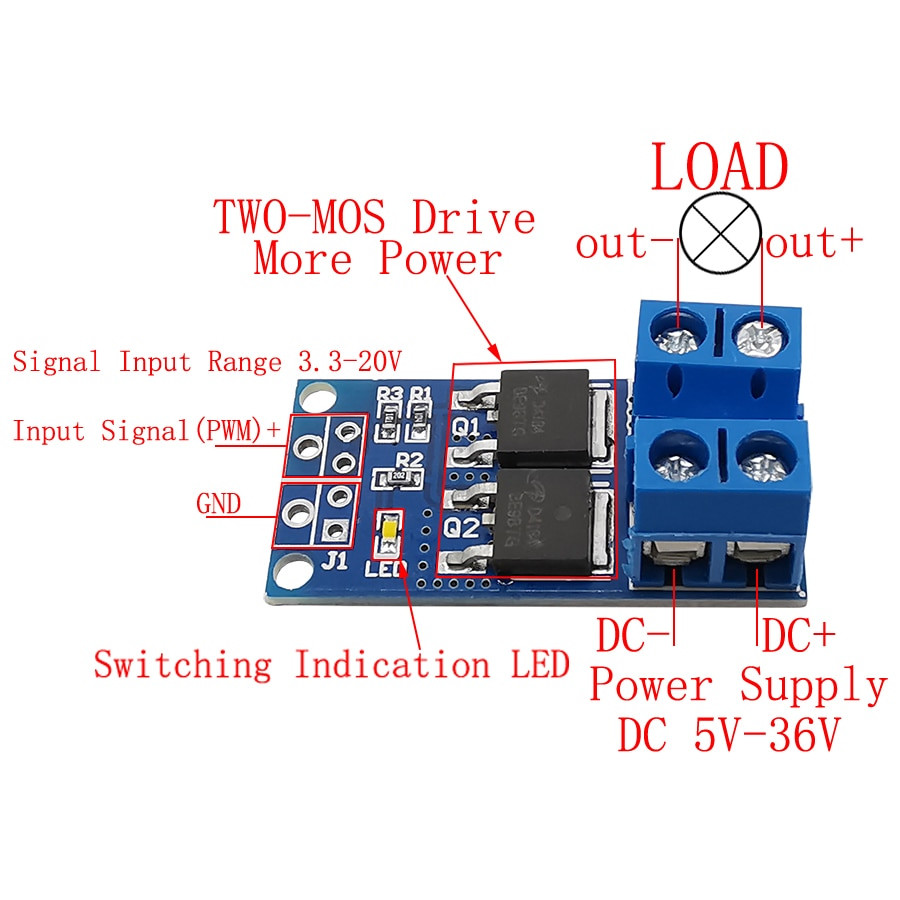

2: Trigger signal source: digital high and low level (DC3.3V--20V), can be connected to single-chip IO port, PLC interface, DC power supply, etc., can be connected to PWM signal, signal frequency 0--20KHZ perfect support.

3: Output capacity: DC DC 5V--36V, continuous current 15A at normal temperature, power 400W! The maximum current can reach 30A under auxiliary cooling conditions.

4: Application: The output can control high-power equipment, motor, bulb, LED strip, DC motor, micro pump, solenoid valve, etc. It can input PWM, control motor speed, brightness of lamp and so on.

5: Working temperature: -40-85 ° C;

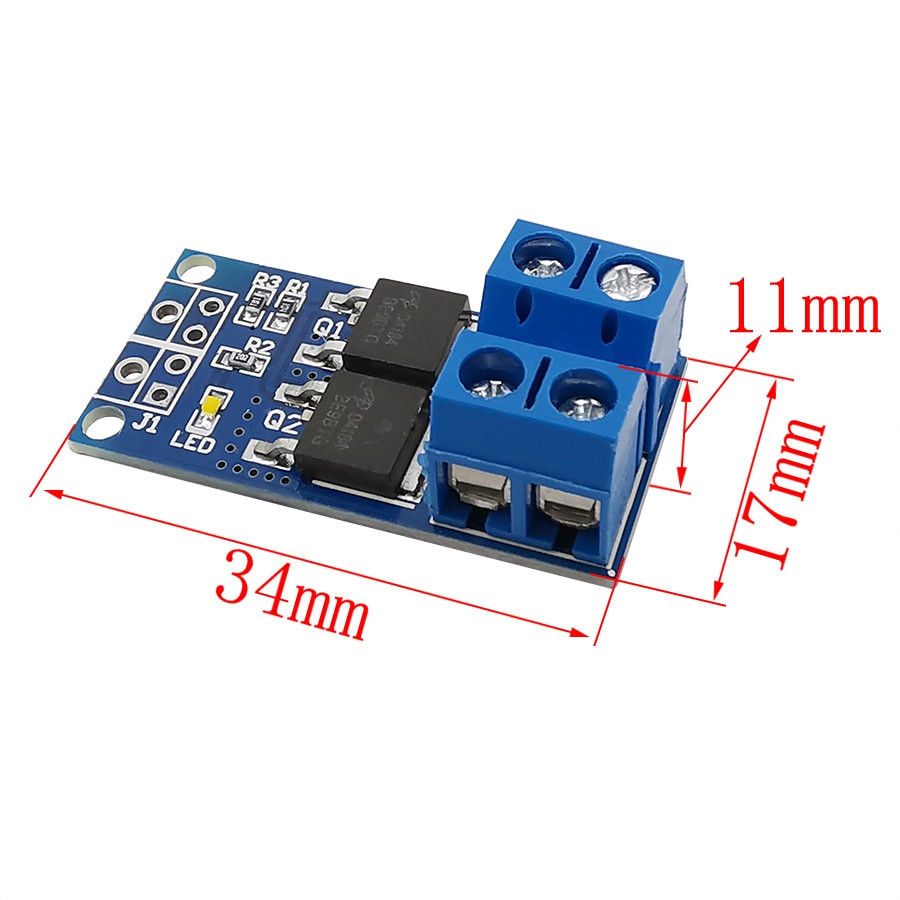

6: Size: Approx 34mm x 17mm x 11mm (1 inch = 2.54 cm)

Quantity: 1Pcs

NOTE:
1. The flaws of the product in the picture are caused by reflections during shooting, the picture may not reflect the actual color of the item.
2. Please allow ±0-2mm error due to manual measurement. pls make sure you do not mind before you bid. Thank you!
