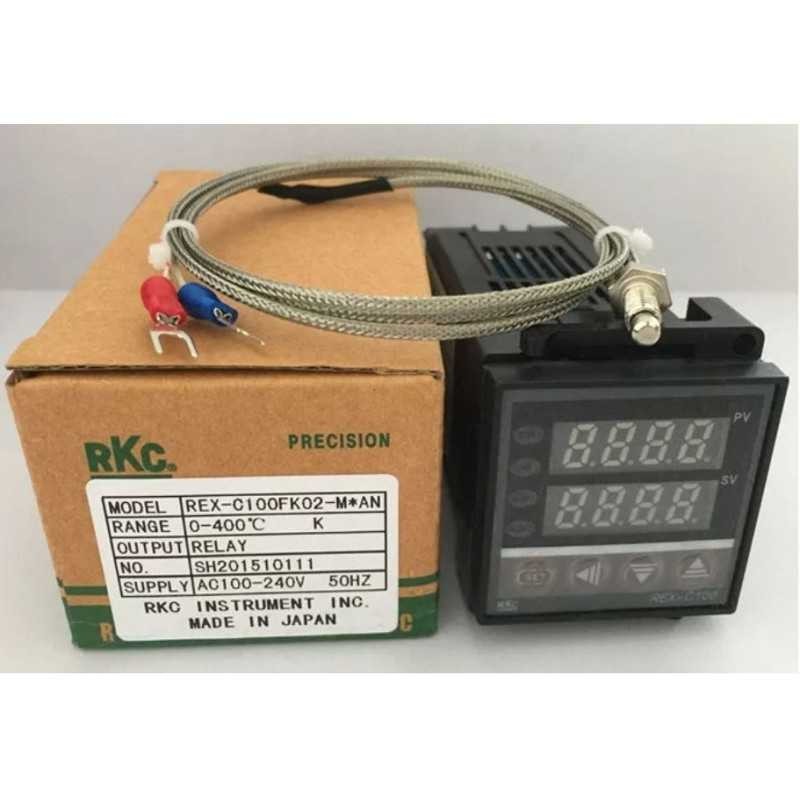

Controler temperatura termostat PID REX C100 FK02 MAN, RKC Japan 0-400 °C + Sonda K

Este exact produsul din poze nu alta varianta.
Utilizarea incorecta poate duce la distrugerea iremediabila!

Se livreaza impreuna cu sonda K si manual de utilizare in limba engleza.

REX-C100FK02-M * AN
Iesire: RELEU + alarma
Dimensiuni: 48mm × 48mm × 110mm
Precizia de masurare: ± 0,5%
Measuring accuracy: ±0.5%FS
Cold-end compensation tolerance: ±2C can be modified by software in 0~50C
Resolution: 14 bit
Sampling cycle: 0.5 Sec

Dimensions:48 x 48 x 110 (mm) ±0.2mm
Process value (PV), Setting value (SV)
Output, alarm and self-tuning can be indicated by: LED
PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
Relay output: contact capacity 250V AC 3A (resistive load)
Alarm function output: 1 way
Contact capacity of output: 250V AC 3A (resistive load)
Setting value (SV): identical to measuring range (PV)
Proportional band (P): 0~full range (ON/OFF control when set to 0)
Integral time (I): 0~3600 sec (No integral action when set to 0)
Derivative time (D): 0~3600 sec (No derivative action when set to 0)
Heat-reset proportional cycle: 1~100 sec

Detective temperature range 0 to 400C
