Copiator duplicator cartele taguri RFID EM 125kHz

Note

1. this duplicator only can copy 125KHz RFID cards/tags

2.cards/tags not included

3.batteries not included

4.Not supporting 13.56MHz frequency

5. Writing to TK/EM4100 and 4200 is NOT supported,
Only TK/EM4100 and 4200 can be read

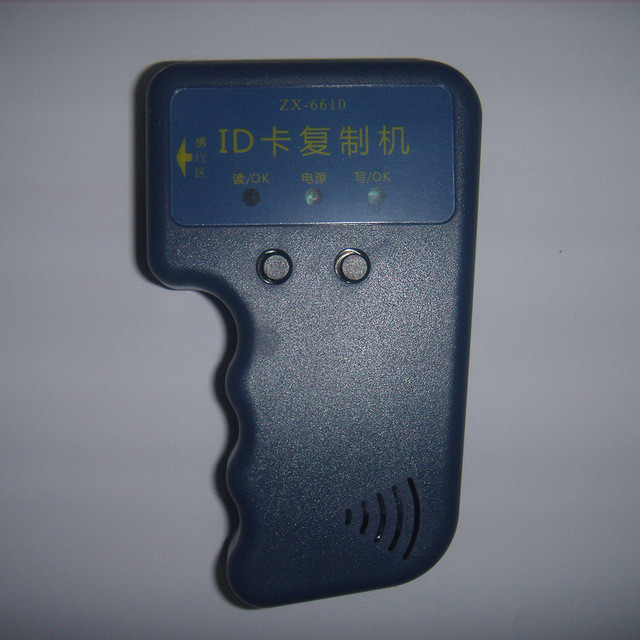

RFID Reader Duplicator 125khz

1. Handheld shape design, comfortable hand feeling and high quality.
2. 2 buttons for simple operations.
3. Standalone operation, no need to connect with computer / PC, easy to use.
4. Built-in individual LED lights and buzzer indicator.
5. Reading distance is 0 - 6cm.
6. Can only copy 125KHz RFID card, Compatible with T5577, CET5200, EM4305 and EN4305.

Parameter

Read: EM / TK (EM4100 TK4100 etc) cards or keys
Write: EM4305 CET5557 T5577 5200 EM4205 etc cards or Keys
Built-in: individual LED lights and buzzer indicator, transceiver antenna
Connection: USB cable connection to PC (Plug and Play, Driverless for Windows 2000, 2003, XP,Windows7/ 8 / 10 etc)
Power Supply: 3V (2 x AAA battery)(Batteries not included))
Times: Read / Write > 20000 times
Size: ( L*W*H ): 115 x 70 x 30mm
Weight: 85g

How to use

Read:
Put the inductive proximity card (EM4100 or TK4100 or has inside info EM4305 or T5577) in the induction area and hold the read key (left one). The buzzer will sound emitted by the green indicator for success. If the power light is only blinking, then the card reader failed.

Copy:
After the reading is successful, put the blank card in the induction area and hold the copy key(right one). The buzzer sound emitted by the yellow indicator for success. If the power light is only blinking, then the card reader failed.
