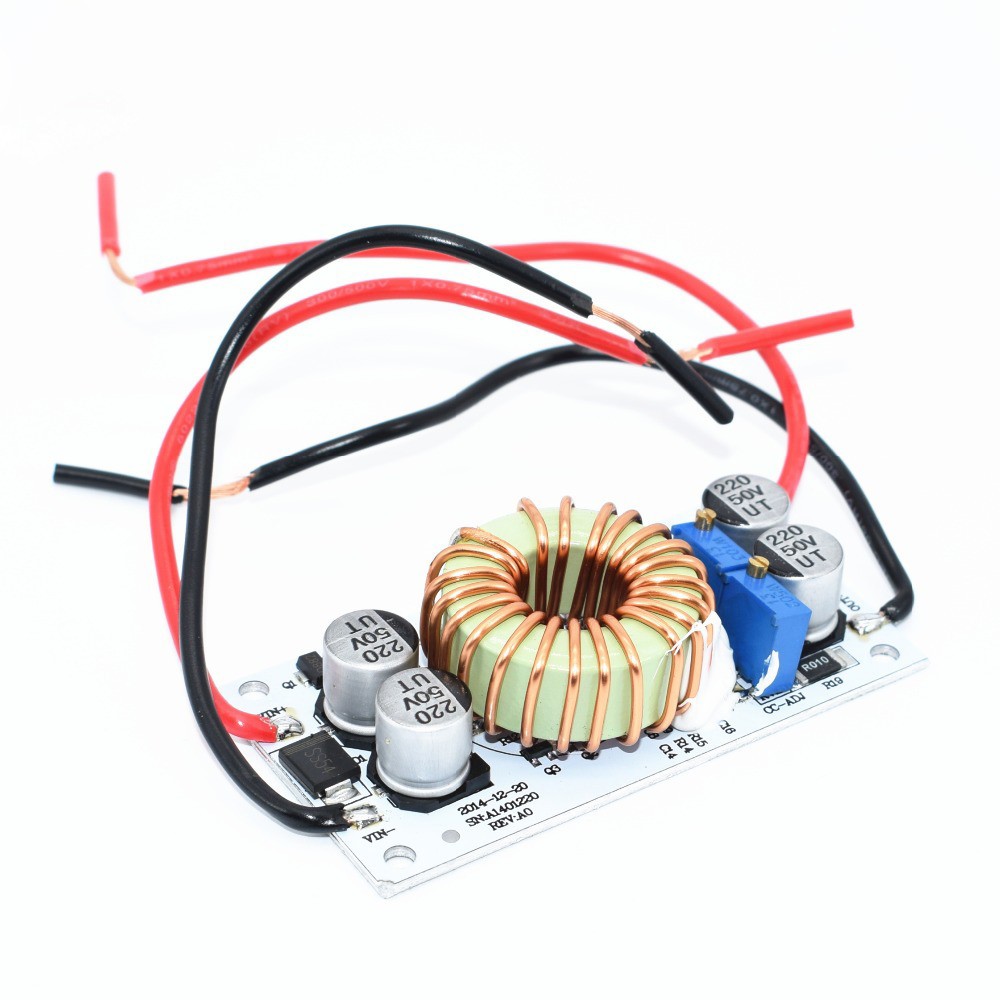

DC-DC converter step-up, de la 8.5-48V la 10-50V, 10A - 250W

Produsul este nou!

Specificații în limba engleză:

Module properties: non-isolated step-up module (BOOST)

Input voltage: DC 8.5V-48V

Input current: 10A (MAX) exceeds 8A please enhance heat dissipation

Quiescent current: 10mA (12V liter 20V, the output voltage, the higher
the current will increase too quiet)

Output voltage: 10-50V continuously adjustable

Constant] range: 0.2-8A

Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)

Operating frequency: 150KHz

Conversion efficiency: up to 96%

Overcurrent protection: There

Input reverse polarity protection: Yes,

Installation: 4 3mm screw holes

Connection method: Connection Output

Module size: Length 70mm width 36mm height 13mm

Single module: 50 g

Applications:

1. DIY a power supply, 12V can input and output can 12-50V adjustable.

2. the power supply for your electronic device, according to your
system can set the output voltage value.

3. as the car power supply for your laptop, PDA or a variety of digital
products supply.

4. DIY a mobile notebook power supply: 12V coupled with high-capacity
lithium battery pack, so you can go where light where books.

5. solar panel regulator.

6. to the battery, rechargeable lithium batteries.

7. driving high-power LED lights.

Pachetul conține:
• 1 bucată x DC-DC converter step-up, IN: 8,5-48V, OUT: 10-50V, (10A) 250W (cod produs: DC - 985X)

Se expediază în toată țara prin curierat rapid fără limită de kilometri în sistem ramburs.
