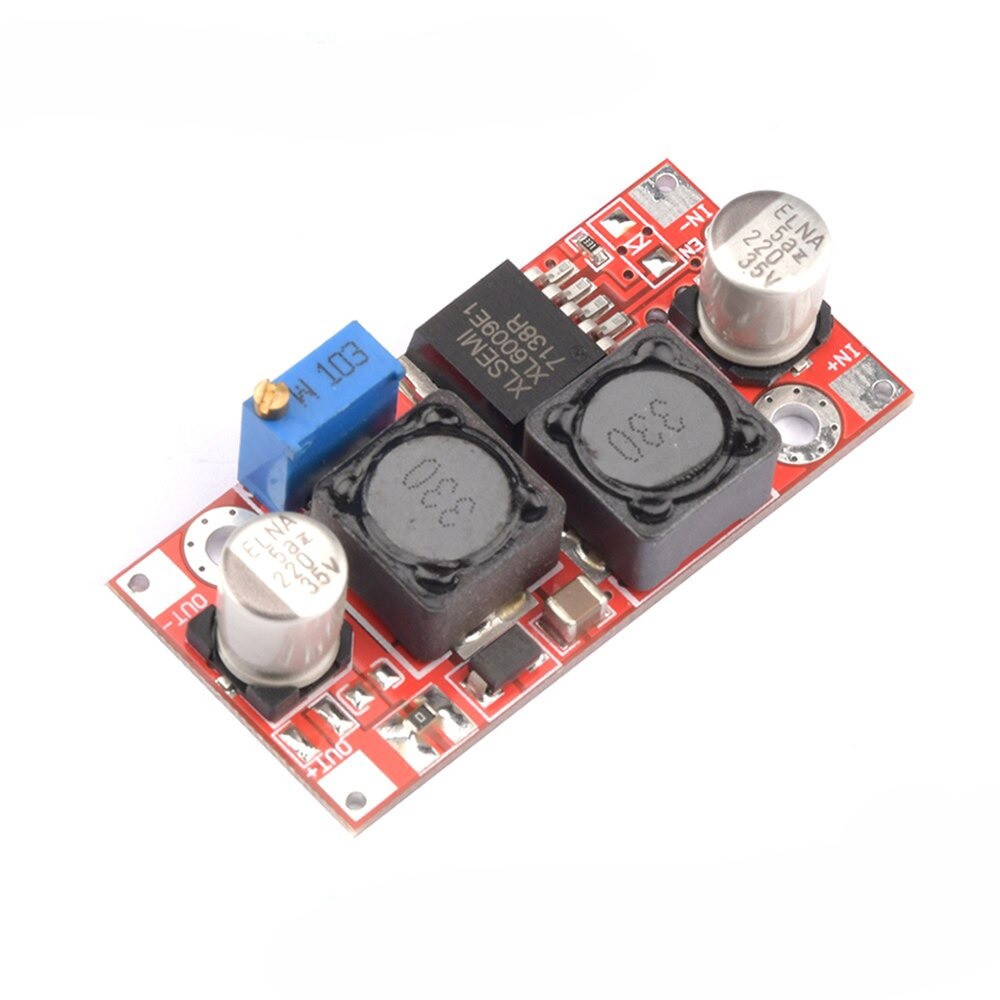

DC-DC converter step-up-down, IN: 3.8-32V, OUT: 1.25-35V (3A - XL6009) (DC.882D)

Produsul este nou!

Specificații în limba engleză:

For 12V electrical work hard at work, this automatic buck module solves this problem , regardless of the input voltage is 5V or 12V or 32V, the output can be stabilized at 12V.

Wide input voltage 5V-32V;

Wide Output Voltage 1.25V-35V (with automatic buck , scope of work, any voltage inputs can be arbitrarily regulated voltage output ) ;

Built- 4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A)

High switching frequency of 400KHz, the ripple is smaller and smaller . (LM2577 frequency only 50KHz)

Specifications:

Model Specification:DSN6000AUD Automatic Buck module

Module Properties:Non- isolated boost (BOOST)

Rectification:Non-Synchronous Rectification

Input Range:3.8V ~ 32V

Output Range:1.25V ~ 35V

Input Current:3A ( max ) , no-load 18mA (5V input , 8V output , no-load is less than 18mA. Higher the voltage , the greater the load current . )

Conversion efficiency:< 94% ( greater the pressure , the lower the efficiency )

Switching frequency:400KHz

Output Ripple:50mV ( the higher the voltage , the greater the current , the greater the ripple )

Load Regulation:± 0.5%

Voltage Regulation:± 0.5%

Operating Temperature:-40 ° ~ +85 °

Application:

Car regulator, solar photovoltaic, wind power and other applications of voltage instability

Pachetul conține:
• 1 bucată x DC-DC converter step-up-down, IN: 3.8-32V, OUT: 1.25-35V (3A - XL6009) (cod produs: DC.882D)
