Deck Aiwa AD F 810

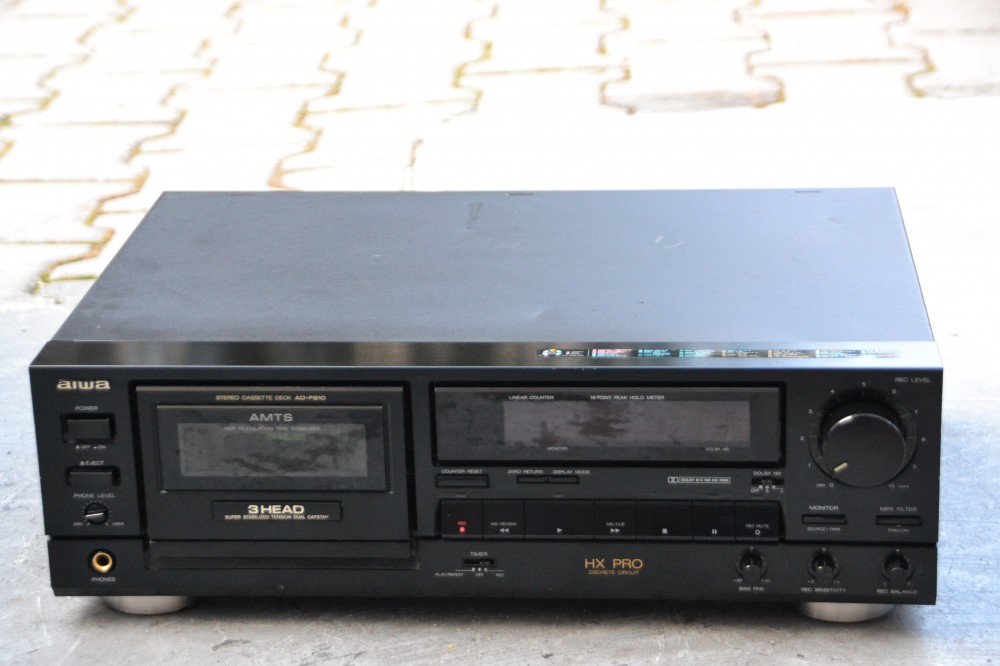

Deck Aiwa AD-F 810 - Made in Japan, 3 capete, AMTS, Hx Pro, bias fine, MPX filter, dolby B, C, HX PRO, display mode, dual capstan, iesiri casti cu volum separat, made in Singapore, poze reale.

General

Manufacturer: Aiwa
Model: AD-F 810
Type: Cassette Tape Deck
Years of manufacture: 1992 - 1994
Made in: Japan
Color: Black
Remote control:
Power consumption: 25 W
Dimensions: 430 x 140 x 318.3 mm (WxHxD)
Weight: 4,9 kg
Price: 800 DM

Connections

Number of inputs:
Maximum input sensitivity of the direct input jacks (Rec/Line IN): 50 mV (over 47 kOhm).
Number of outputs:
Normal output level of the direct input jacks (Play/Line Out): 370 mV (0 VU); suitable load impedance: above 47 kOhm;
Headphones: 0.8 mW (0VU); suitable load impedance: 32 Ohm

Specifications

Audio heads: 3
motors: 2
Synchronous fluctuations: 0.035 % (WRMS)
Band types:
Frequency response:
Metal: 15-20,000 Hz
CrO²: 15-19,000 Hz
Normal: 15-18,000 Hz
Distortion factor: 0.6
Signal-to-noise ratio: 80 dB (metal band, with Dolby C noise reduction 5 kHz or more)
Auto Reverse: no
Title search: yes
Dolby: B, C
MPX filter: yes
Fader:
Pitch control: no
CD synchro recording
