Deck Dual C 810

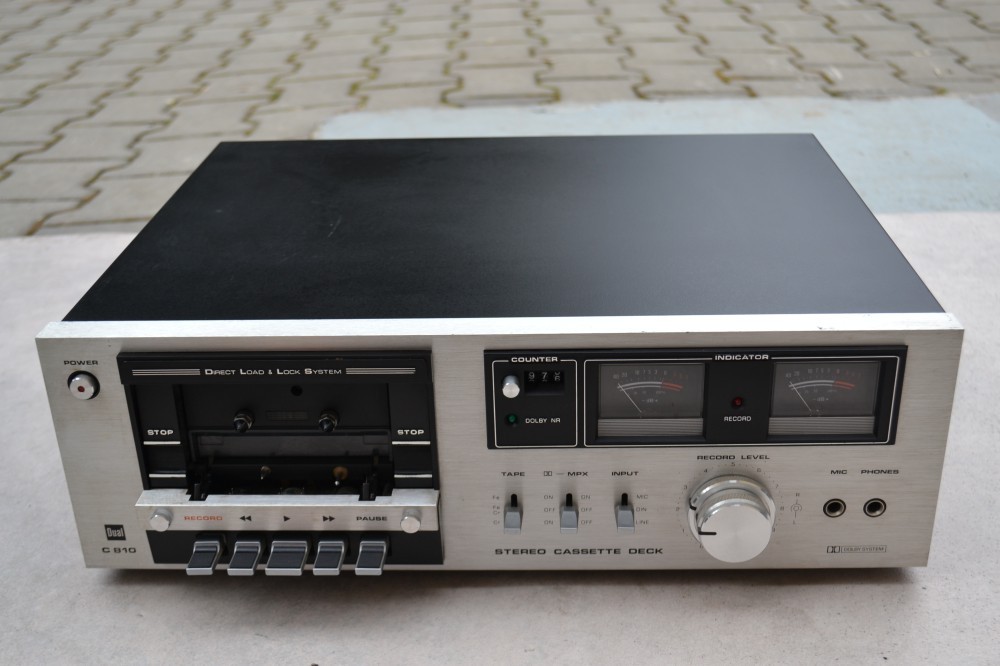

Deck Dual C 810: argintiu, made in Germaany, direct load and lock system, vu metre iluminate, counter, dolby nr, tape select, MPX filter, intrare microfon, iesire casti, pure direct, poze reale.

General

• Manufacturer: Dual
• Model: C 810

Type: Cassette Tape Deck

• Years of manufacture: 1978 - 1982
• Made in: Japan
• Color: Silver or Brown
• Remote control:
• Power Consumption:
• Dimensions (WxHxD): 440 x 150 x 360 mm.
• Weight: 8 kg
• Original price approx.: 568 DM

Connections

• Number of inputs:
  • Line In: 40 mV, 580 kOhm

Line In DIN: 0.5 mV, 6.3 kOhm

• • Microphone: 0.26 mV, 2 kOhm
• Number of outputs:
  • Line Out: 0 - 580 mV, 2 kOhm
  • Line Out DIN: 0 - 580 mV, 5.5 kOhm
• Headphones (6.3mm jack): 4 - 2'000 Ohm

Technical Data:

• Audio heads: 2
  • 1x head for recording and playback
  • 1x ferrite erase head
• Motor: 1
• Tape speed: 4,75 cm / s
• Synchronization fluctuation: 0,045 %.
• Tape types:
  • Normal: Type I
  • Cr02: Type II
  • FeCr: Type III
• Frequency response:
  • Normal Type I: 20 Hz - 16 kHz
  • Cr02 Type II: 20 Hz - 17 kHz
  • FeCr Type III: 20 Hz - 17 kHz
• Distortion factor: 0.5
• Signal-to-noise ratio:
  • Without Dolby: 59 dB

With Dolby: 66 dB

• Crosstalk attenuation:
• Auto-Reverse: no
• Dolby: yes
• Cancellation attenuation: > 70 dB
• Premagnetization frequency: 100 kHz
• Rewind time C-60 cassette: 65 seconds
