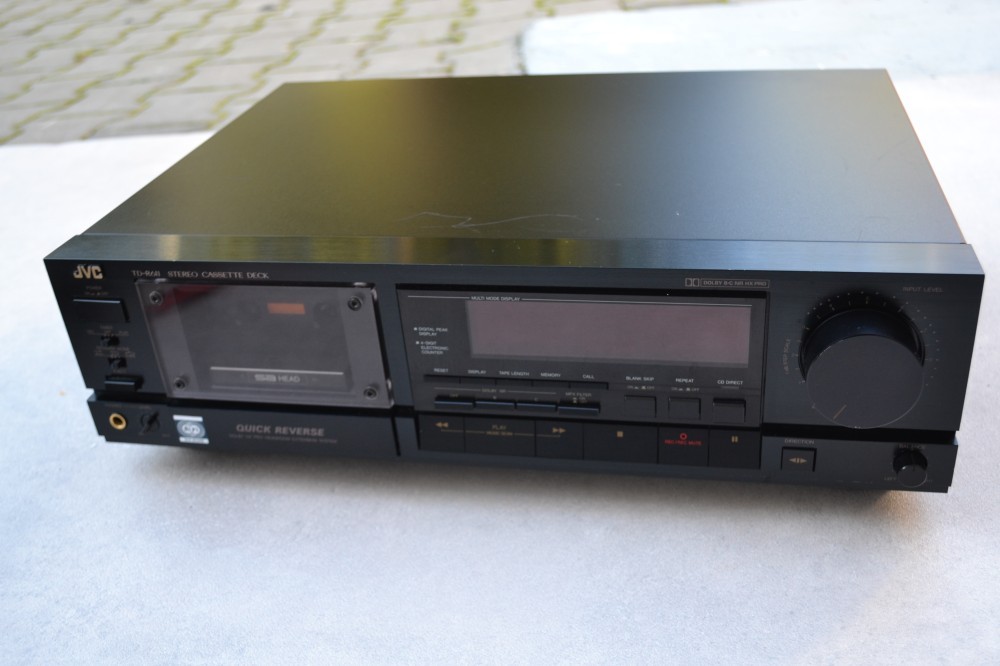

Deck JVC TD R 611

Deck JVC TD R 611: MADE IN Japan, SA Head, quick reverse, dolby B, C, HX Pro, afisaj mare, autoreverse, repeat, negru,  poze reale.

General

• Manufacturer: JVC
• Model: TD-R 611 BK
• Type: Cassette Tape Deck
• Years of manufacture: 1988 - 1989
• Made in: Japan
• Color: Black
• Remote control:
• Power consumption: 15 W
• Dimensions: 435 x 132 x 336 mm (WxHxD)
• Weight: 6.8 kg
• Original price approx.: 698 DM (1988)

Connections

• Number of inputs: 2

Line In (Cinch) 80 mV / 50 kOhm Mic 0.4 mV (600 Ohm - 10 kOhm)

• Number of outputs: 2
  • Line Out (Cinch) 300 mV / 5 kOhm
  • Headphone (6,3 mm jack) 0,3 mW / 8 Ohm (8 Ohm - 1 kOhm)

Technical Data

• Audio heads: 2
  • 1 x record/playback (SA-Head)
  • 1x two-column ferrite head for erasing
• Motors: 3
  • 1 x take-up reel, 1 x capstan, 1 x drive
• Fast rewind time: approx. 95 sec. at C-60
• Synchronous speed fluctuation: 0,16 %
• Tape types: Normal, Chrome, Metal
• Frequency response:
  • Normal: 15 Hz - 18,000 Hz (DIN), 20 Hz - 16,000 Hz (± 3 dB).
  • Chrome: 15 Hz - 18'000 Hz (DIN), 20 Hz - 16'000 Hz (± 3 dB)

Metal: 15 Hz - 19'000 Hz (DIN), 20 Hz - 17'000 Hz (± 3 dB)

• Distortion factor: 0.5 % (THD), 1.0 % (Metal, 1 kHz, 0 VU)
• Signal-to-noise ratio: 58 dB
• Auto reverse: yes
• Track search:
• Dolby NR: B + C u. HX Pro
• MPX filter: yes
• Fader:
• Pitch control:
• CD Synchro Recording: yes (CD Direct).
