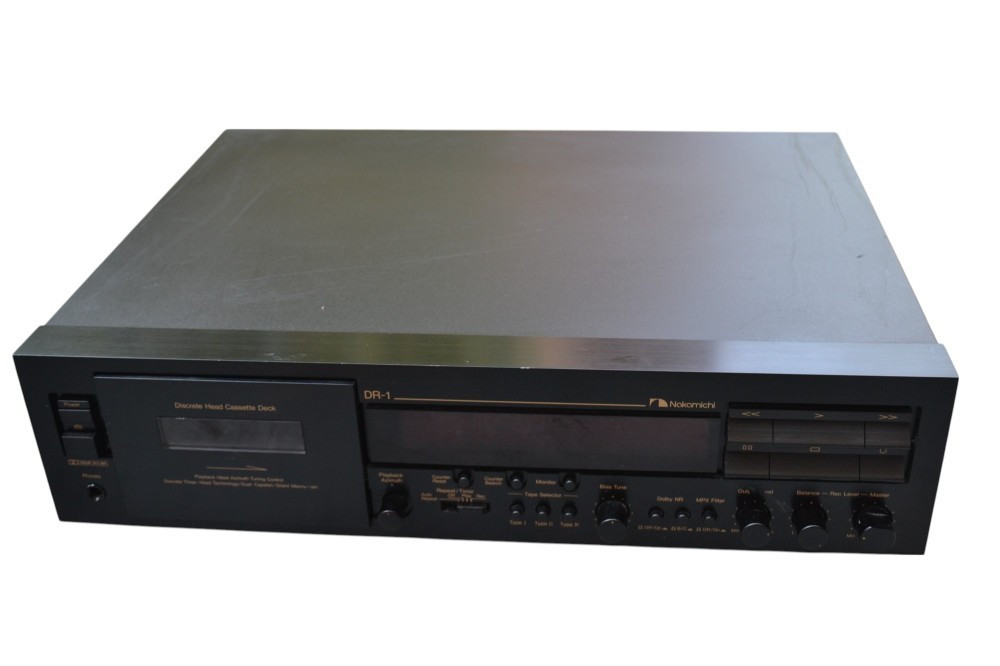

Deck Nakamichi DR 1

Deck Nakamichi DR 1: made in Japan, 3 capete, dual capstan, negru, dolby B, C, MPX filter, tape selector, silent mechanism, utut level, playback azimuth,  poze reale.

General

• Manufacturer: Nakamichi
• Model: DR-1
• Type: Cassette Tape Deck
• Years of manufacture: 1993 - 1995
• Made in: Japan
• Color: Black
• Remote control: No
• Power consumption: 26 watts
• Dimensions: 430 x 100 x 320 mm (WxHxD)
• Weight: 5.4 kg
• Original price: 1'698 DM (RRP 1993)

Connections

• Number of inputs:
  • Line 50 mV/40 KOhm
• Number of outputs:
  • Line 0.5 V/2.2 KOhm
  • Headphone

Technical Data

• Sound heads: 3
• Motors: 3
• Synchronous fluctuations: 0.035% WRMS
• Tape types: I, II, IV
• Frequency response: 20 - 21,000 Hz (± 3 dB)
• Distortion factor: < 0.8%
• Signal-to-noise ratio: 66/72 dB (Dolby B/C)
• Auto Reverse: No
• Title search: No
• Dolby: B + C
• MPX Filter: Switchable
• Fader: No
• Pitch control: No
• CD synchro recording: No

Special Features

• Rear tape control
• Double capstan
• Bias control
• Playback head azimuth adjustable
• Fluorescent level meter with 2 x 13 segments
• Output level adjustable
