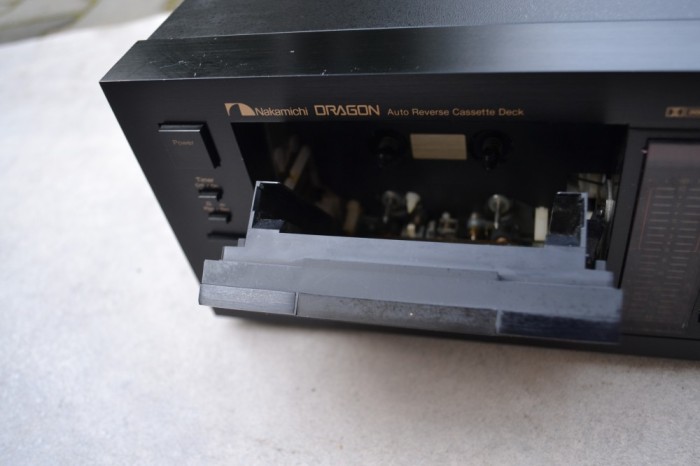

Deck Nakamichi Dragon

Deck Nakamichi Dragon : mufe aurite, culoare neagra, autoreverse, 3 capete, Double direct drive, silent mechanism, VUmetre, counter, dolby B,C, subsonic filter, autofader, memorii, autoazimuth, made in Japan.

Description

The Nakamichi Dragon is a truly unique deck.

It is a direct drive, auto reverse cassette deck incorporating the epoch making NAAC system for automatic azimuth correction of the playback head.

Thanks to the NAAC system, sound quality differences between forward and reverse are completely eliminated and perfect playback is possible under all conditions.

Furthermore, manual calibration facilities for record sensitivity and bias permit high precision adjustment to suit the requirements of every tape.

Specifications

Type: auto reverse, 3-head, single compact cassette deck

Track System: 4-track, 2-channel stereo

Tape Speed: 4.8 cm/s

Heads: 1 x record, 1 x playback, 1 x erase

Motor: 2 x capstan, 1 x reel, 1 x auto azimuth, 1 x mechanism

Tape Type: type I, CrO2, Metal

Noise Reduction: B, C

Frequency Response: 20Hz to 22kHz  (Metal tape)

Signal to Noise Ratio: 72dB  (dolby C)

Wow and Flutter: 0.04%

Total Harmonic Distortion: 0.8%

Input: 50mV (line)

Output: 1V (line)

Dimensions: 450 x 135 x 300mm

Weight: 9.5kg

Year: 1982
