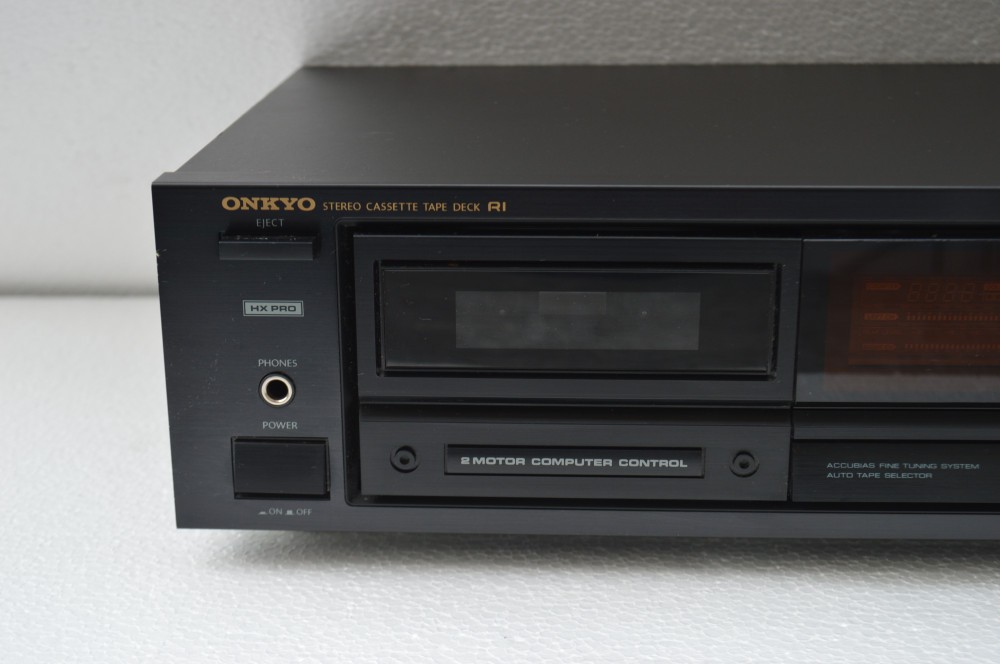

Deck Onkyo TA 2630

Deck Onkyo Integra TA 2360 : VUmetre, Counter, Dolby B,C, HxPro, MpxFilter, AccuBias, Autotape selector, poze reale, made in Japan.

Technical specifications

• Tape heads: 1x record/playback (hard permalloy), 1x erase head (ferrite head)
• Motors: 1x DC servo motor, 1x DC rotor
• Wow and Flutter: 0.070% (rms, weighted)
• Band types: normal band, chrome band, pure iron band
• Frequency Response:
  • 20 - 17,000 Hz at normal band
  • 20 - 18,000 Hz on chrome tape
  • 20 - 19,000 Hz with pure iron tape
• Distortion factor:
• signal-to-noise ratio:
  • 59 dB (iron tape, without Dolby)
  • With Dolby-B improvement of 10 dB above 5 kHz and 5 dB at 1 kHz
  • With Dolby-C improvement of 20 dB at 5 kHz
• Auto reverse: no
• Title search: yes (AMCS)
• Dolby: B/C (DolbyHX)
• MPX Filter: Yes, switchable
• faders:
• Pitch control:
• CD Synchro Recording: No
