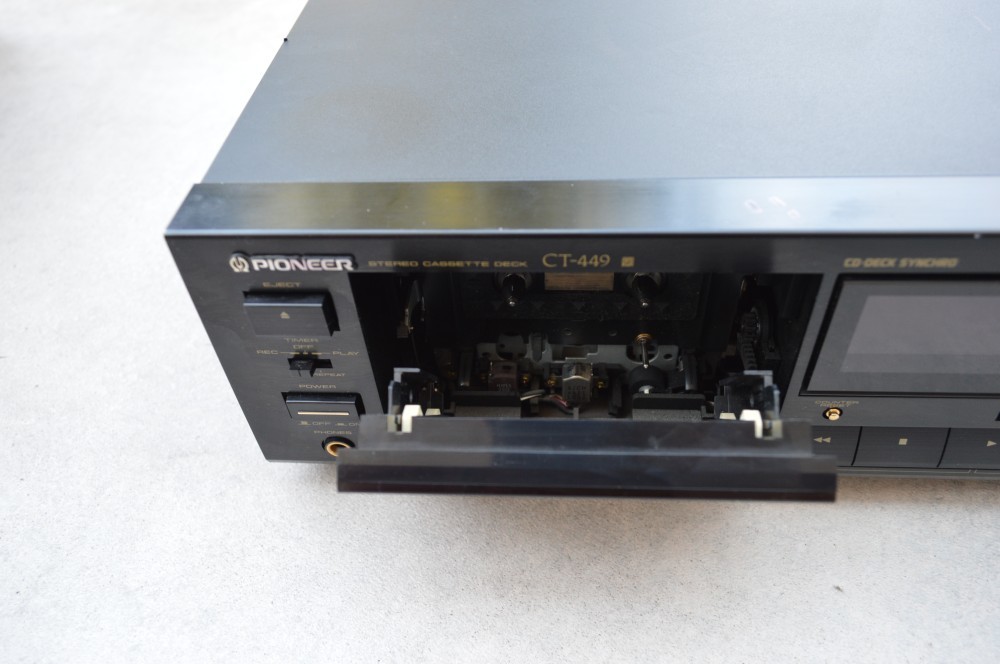

Deck Pioneer CT 449

Deck Pioneer CT 449: Made in japan, intrare 2 microfoane, afisaj mare, dolby B,C, HX Pro, 2 motoare, Auto BLE, Dolby HX Pro.

General

• Manufacturer: Pioneer
• Model: CT-449
• Type: Single
• Year built: 1991
• Made in: Japan
• Color: Black
• Remote control: via SR System remote control to be purchased separately
• Power consumption: 20 W
• Dimensions: 420 x 130 x 272 mm (W x H x D)

Weight: 4.3 kg

• Original price approx.: 600,- DM

Connections

• Number of inputs:
  • LINE (INPUT) 2 x cinch; 63 mV with 52 kΩ input impedance.
  • Microphone 2 x 6.3 mm jack socket on the rear; 0.4 mV
• Number of outputs:
  • LINE (OUTPUT) 2 x RCA; 316 mV with 3.3 kΩ output impedance.
  • Headphone output 6.3 mm jack socket, stereo, on the front panel with volume control; 0.9 mW, load impedance 8 Ω

Specifications

• Audio heads: 2 (1 x hard permalloy record/playback head;1 x ferrite erase head).
• Motors: 2 (1 x DC servo motor for tone shaft; 1 x DC motor for winding).
• Synchronous fluctuation: 0.05%.
• Band types: Fe, Cr and Me
• Frequency response: (± 6 dB; -20dB recording)
  • Normal band 20 to 17000 Hz
  • Chrome band 20 to 17000 Hz

Metal band 20 to 19000 Hz

• Distortion factor: < 0,7% (0dB)
• Signalrauschabstand:
  • Ohne Rauschuntersrückung >57 dB
  • With Dolby-B > 67 dB (at 5 kHz)
  • With Dolby-C > 76 dB (at 5 kHz)
• Auto Reverse: No
• Title search: up to 15 titles
• Dolby: B / C + HX-PRO system
• MPX filter: activated when Dolby B or C is active
• Fader: No
• Pitch control: No
• CD synchro recording: Yes
