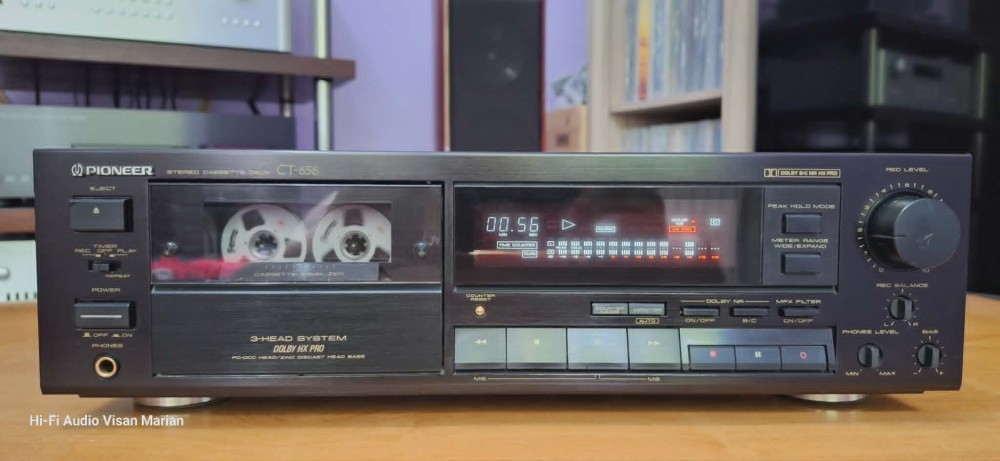

Deck Pioneer CT-656

- Stare Perfecta de Functionare,sunet f f bun,totul original la interior,fara reparatii -


General

Manufacturer: Pioneer
Model: CT-656
Type: Cassette Tape Deck

Year of manufacture: 1989
Colors: Black, Silver CT-656-S
Remote control: no
Power consumption: 18 W
Dimensions: 420 x 130 x 323 mm (WxHxD)
Weight: 5.7 kg
Original price approx.: 800 DM

Connections

Line (Input): High level (LINE) 56 mV / Input impedance: 56 kOhm
Line (Output): High level (LINE) 316 mV / Output impedance: 5 kOhm
Headphones: load impedance 8 Ohm (volume max.)


Technical data
Audio heads: 3
PC-OCC winding/hard permalloy playback head/hard permalloy pickup head combination x1
Erase head (ferrite) x 1
Motors: 2
1 x DC servo tone shaft motor,
1 x DC coil motor
Synchronous fluctuation: 0.05% WRMS
Belt types: Normal Type-I, Cromdioxid Type-II, Metal Type-IV.
Frequency response (+/- 6 dB):
Normal band 15 to 20000 Hz
Chrome band 15 to 20000 Hz
Metal band 15 to 21000 Hz

Distortion factor: less than 0.7% (0 dB)
Signal-to-noise ratio
Without Dolby: > 58 dB
With Dolby B: + 10 dB (at 5 kHz)
With Dolby C: + 19 dB (at 5 kHz)
Auto Reverse: no
Title search: ± 15 titles
Dolby Noise Reduction: B + C
MPX filter: Yes
Fader: No
Pitch control: No
CD Synchro Recording: -No- (CD deck synchro with matching Pioneer CD player)

Special Features

Counter with two display modes(4-digit electronic counter).
Level display switchable (normal/extended level range)
Back tape control option (automatic switching between sound source and recorded sound)
Title search (+/- 15 titles)
Headphone output (with level control)
Pre-magnetization control
MPX filter
Recording mute for automatic insertion of blanks
Automatic tape selector
Timer start function for recording and playback
Repeat playback
Dolby Noise Reduction System (B/C)
Dolby HX Pro
FL level meters (12 segments +1) with peak level memory function * FL level meters (12 segments +1) with peak level memory function
