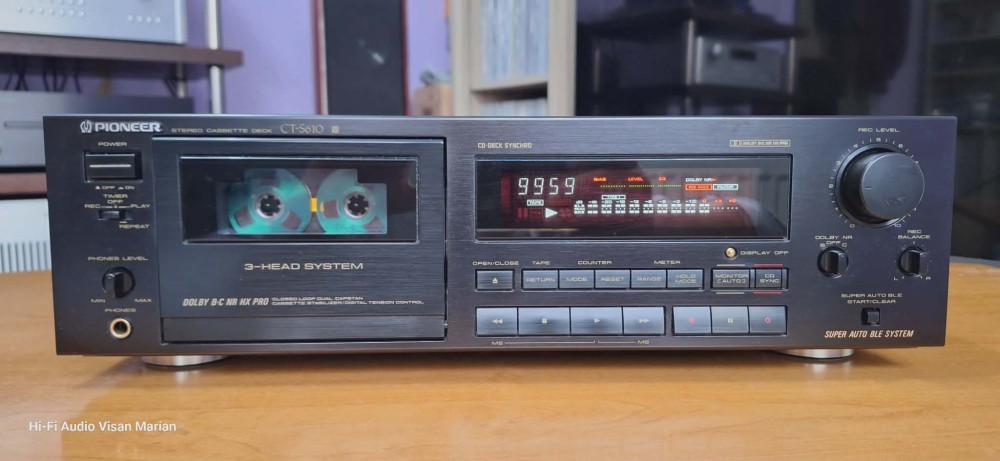

Deck Pioneer CT-S610

- Stare Perfecta de Functionare,sunet f f bun,totul original la interior,fara reparatii - Pioneer CT-S 610 General Manufacturer: Pioneer Model: CT-S610 Type: Single Years of manufacture: 1992-93 Made in: Japan Color: Black, Champagne Remote control: no Power consumption: 21 watts Dimensions: 420 x 127.5 x 323 mm (W x H x D) Weight: 6.0 kg Original price approx.: 750,- DM Connections Number of inputs: 3 Line (Input) = 100 mV/54 kOhm CD Synchro (2.5 mm jack) Pioneer System Bus (3.5 mm mono jack) Number of outputs: 3 Line (Output) = 500 mV/3.2 kOhm Pioneer System Bus (3.5 mm mono jack) Headphones = 3.4 mW (load impedance 8 Ohm, Phones Level control max.) Technical data Audio heads: 3 1 x recording and 1 x playback combination head (hard permalloy), 1 x erasing head (ferrite-sendust) Motors: 3 1 x DC servo tone motor, 1 x DC coil motor, 1 x DC auxiliary motor Synchronous fluctuation: not more than 0.023% (RMS), not more than 0.056% (DIN) Band types: all Frequency response: Normal band 15 to 20000 Hz (at recording level -20dB). Chrome band 15 to 20000 Hz (at recording level -20dB) Metal band 15 to 21000 Hz (at recording level -20dB) Distortion factor: < 0.6% (at -4 dB: 160 nWb/m) Signal-to-noise ratio: >60 dB for Dolby B: >70 dB (at 5 KHz), for Dolby C: >79 dB (at 5 KHz), Rewind time (C-60 band): 90 seconds Auto-Reverse: no Title search: ± 15 titles Dolby: yes, B + C + HX-Pro MPX filter: yes Fader: no Pitch control: no CD synchro recording: yes Special Features Pioneer "Reference Master" drive Closed Loop Dual Capstan drive (2 tone shafts, 2 pressure rollers, closed circuit) Cassette Stabilizer Digital Tension Control (digital tape tension control) Vibration and resonance free construction (honeycomb housing) Automatic ejection (motor-driven opening/closing) Three-headed monitor automatic:coils of oxygen-free single crystal copper(PC-OCC) Super Auto BLE system (automatic band alignment) Dolby HX Pro System Dolby Type B and C Level meter with 2-mode peak level hold selection (Peak Hold) Level meter range selectable (wide/extended = meter range) Four-digit electronic tape counter with mode selection (Normal/Time) Automatic monitoring selection (band/program source) Display Off - Display Off Title search ( up to 15 titles forward or backward searchable) Tape Return / Return Play = zero rewind function / automatic playback start Recording mute function to create spaces between titles Tape type selection: automatic. Normal (Fe), Chrome, Metal Playback/recording timer start function Headphone jack adjustable, Repeat playback (up to 15x) System remote control compatible, Gold-plated RCA jacks and headphone jack Resonance feet
