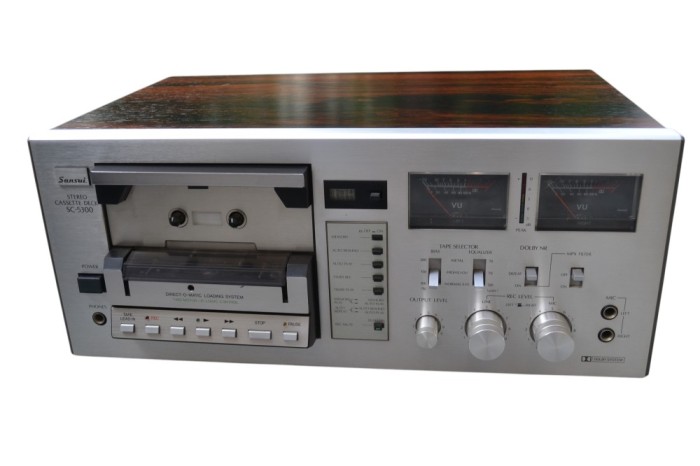

Deck Sansui SC 5300

Deck Sansui SC 5300: Made in japan, direct Q matic, loading system, 2 motoare, eq logic control, vu metre iluminate, tape selector, bias, mpx filter, 2 intrari microfon, memory autoplay, output level, dolby system, carcasa lemn, poze reale.

General

• Manufacturer: Sansui
• Model: SC-5300 (Version Sansui SC-5330 in black)

Type: Cassette Tape Deck

• Years of manufacture: 1979 - 1980
• Made in: Japan
• Colours: Silver, Black
• Remote control: -
• Power consumption: 35 W
• Dimensions (WxHxD):
  • SC-5300: 436 x 188 x 304 mm

SC-5330: 430 x 187 x 304 mm Width SC-5330 with handles: 482 mm

• Weight: 8,5 kg (Weight SC-5330 with handles: 8,8 kg)
• Original price approx.: 3'525 DM

Connections

• Number of inputs:
  • Line In: 70 mV / 33 kOhm
  • DIN In: 0.12 mV
  • Microphone: 0,2 mV / 200-5.000 Ohm
• Number of outputs:
  • Line Out adjustable: 400 mV
  • DIN Out adjustable:
• Headphone (6.3 mm jack): 100 mV / 8 Ohm

Technical data:

• Audio heads: 2
  • 1 × FH head for recording and playback
  • 1 × double-slit ferrite head for erasing
• Motor: 2
  • 1 × FG-Servo DC for tape drive
  • 1 × DC motor for reels
• Belt speed: 4.8 cm/s
• Synchronous fluctuation: 0.038 % WRMS
• Tape types: I, II, IV
• Frequency response:
  • Normal I = 20-17,000 Hz
  • Chrome II = 20-19,000 Hz
  • Metal IV = 20-21,000 Hz
• Distortion Ratio:
• Signal to Noise Ratio:
  • without Dolby: 69 dB
  • with Dolby: +5 dB at 1 kHz, +10 dB above 5 kHz
• Crosstalk attenuation: 65 dB at 1 kHz
• Cancellation attenuation: >70 dB
• Premagnetization and erasure frequency: 85 kHz
• Rewind time: 70 seconds for C-60

Special features:

• 2 × microphone
• Dolby system
• MPX filter
• LED peak indicator
• Pre-magnetization and equalization selector switch
• Output level control
• Timer recording, playback
