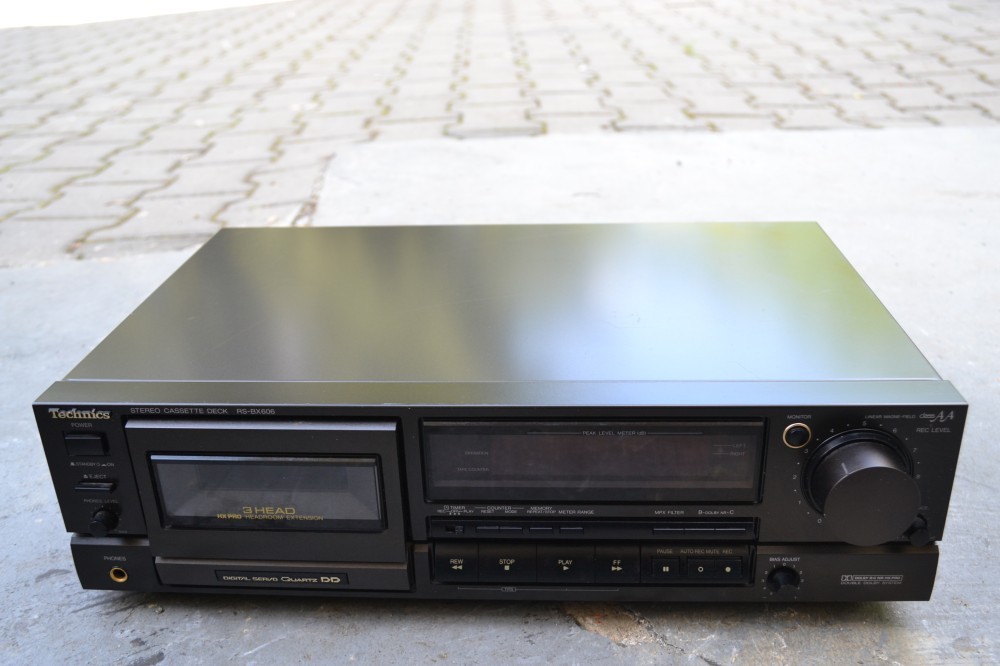

Deck Technics RS BX 606

Deck Technics RS BX 606 : 3 capete, HxPro, Digital Servo Quartz DD (Direct Drive), class AA, afisaj mare, Dolby B,C, Monitor, Bias Adjust, intrare casti cu volum separat, made in Japan.

Country: Japan
Manufacturer / Brand: Technics (brand)
Year: 1991–1993 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Cassette Deck RS-BX606 - Technics brand
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 125 x 300 mm / 16.9 x 4.9 x 11.8 inch
Notes
Frontloading 3-Head Class AA Stereo Cassette Deck with Dolby B + C, Double Dolby NR Circuits, MPX Filter, Dolby HX Pro and Metal Tape Capability.
4-Digit Digital Counter, Linear Tape Counter, Digital Peak-Reading Meters.

Type: 3-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.76 cm/s
Heads: 1 x combination record/playback, 1 x erase
Motor: 1 x capstan, 1 x reel
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C, HX Pro
Frequency Response: 20Hz to 20kHz (Metal tape)
Signal to Noise Ratio: 74dB (Dolby C)
Wow and Flutter: 0.05%
Input: 60mV (line)
Output: 0.4V (line)
Dimensions: 430 x 125 x 300mm
Weight: 4.3kg

Net weight (2.2 lb = 1 kg) 4.3 kg / 9 lb 7.5 oz (9.471 lb)
