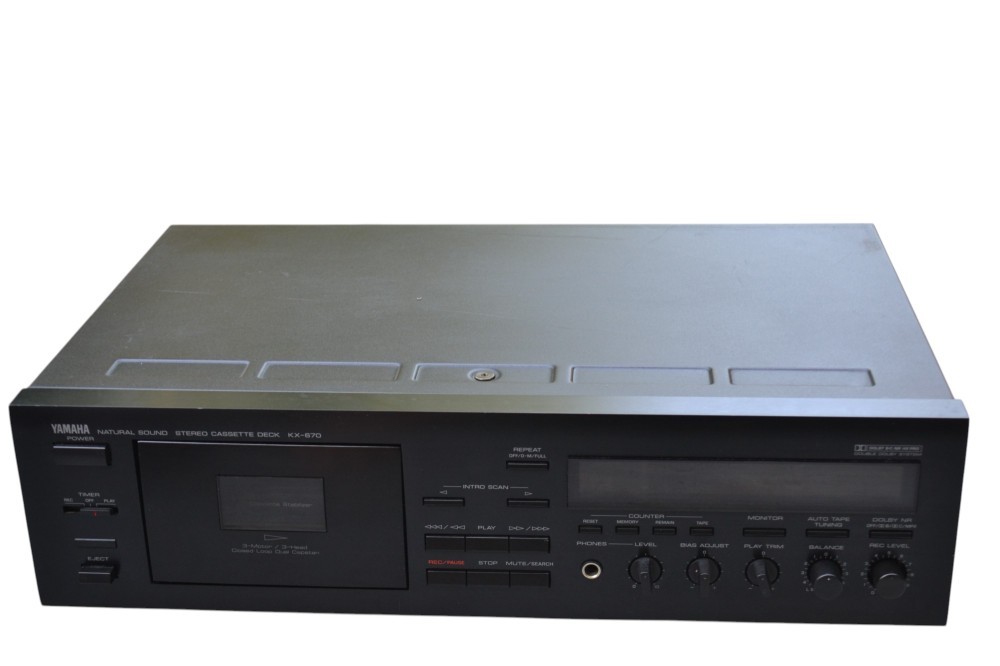

Deck Yamaha KX 670

Deck Yamaha KX 670: 3 capete, 3 motoare, dual capstan, dolby B, C, HX Pro, culoare titan, iesire casti cu volum separat, bias adjust, balance, vumetre, MPX filter, counter, repeat. Senzor de telecoamdna, Made in Malayesia.

General

• Manufacturer: Yamaha
• Model: KX-670
• Type: Single
• Years of manufacture: 1993-1995
• Made in: Malaysia
• Color: titanium, black
• Remote control: optional (RS-KX 1)
• Power consumption: 16 watts
• Dimensions: 435 mm × 131 mm × 283 mm (W × H × D)
• Weight: 5.2 kg
• Original price approx.: 650 DM

Connections

• Number of inputs:
  • Line
• Number of outputs:
  • Line

Headphones

Technical data

• Sound heads: 3
• Motors: 3
• Synchronisation fluctuations: ±0.04 %/0.07 % WRMS/ 0.18 % DIN
• Band types: Type I, II, IV
• Frequency response:
  • Type I: 20-18,000 Hz ±3 dB

Type II: 20-19,000 Hz ±3 dB Type IV: 20-21,000 Hz ±3 dB Distortion factor: <0,8 %

• Signalrauschabstand: >60 dB, 76 dB with Dolby C
• Auto Reverse: no
• Title search: yes
• Dolby: B/C, HX-Pro;
• MPX filter: switchable
• Fader: yes
• Pitch control: no
• CD synchro recording: no

Special Features

• Dual capstan drive belts!
• 2 rewind speeds
• Timer switch
• automatic title play
• automatic tape type switching
• calibration computer
• Bias control
• Dolby HX-Pro
• Play Trim
• real-time totalizer
• Totalizer Memory
• Repeat Segment and Total
• Press search button, then fast forward button - finds beginning of music (beginning of cassette)
• Headphone output level adjustable.
