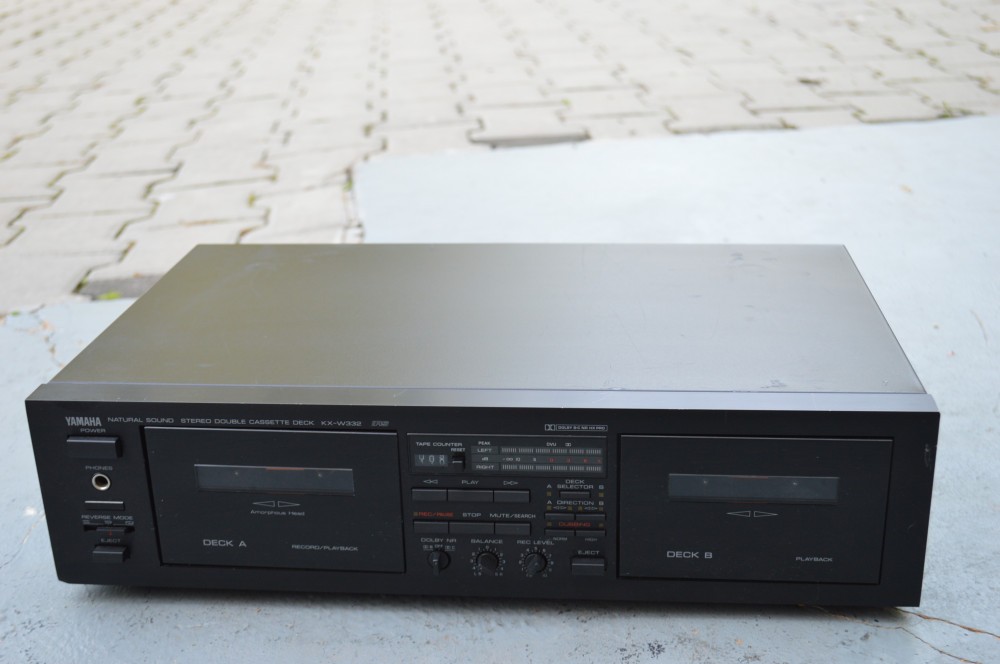

Deck Yamaha KX W 332

  Deck Yamaha KX W 332 : dublu deck, autoreverse pe ambele parti, cunter, VUmetre, dolby b,c, HxPro, Amorphous Head, poze reale, made  in Japan.

General

• Manufacturer: Yamaha
• Model: KX-W 332
• Type: Double
• Years of manufacture: 1991-1992
• Manufactured in:
• Color: titanium, black
• Remote control: optional (RS-KW 5 T)
• Power consumption:
• Dimensions: 435 mm × 117 mm × 268 mm (W × H × D).
• Weight: 4.9 kg
• Original price approx.: 600 DM

Connections

• Number of inputs:
  • Line
• Number of outputs:
  • Line

Headphones

Specifications

• Sound heads:
  • Deck 1: 2
  • Deck 2: 1
• Motors:
  • Deck 1: 2
  • Deck 2: 2
• Variation in synchronism: ±0.08 %/0.15 % WRMS/DIN
• Band types: Type I, II, IV
• Frequency response:
  • Type IV: 20-20,000 Hz ±3 dB
• Distortion factor: <0,8 %
• Signalrauschabstand: >58 dB
• Auto-Reverse: yes, both decks
• Title search: yes
• Dolby: B/C
• MPX filter: no
• Fader: no
• Pitch control: no
• CD synchro recording: no

Special Features

• automatic tape type switching
• double speed copying
• HX-Pro
• sequential playback
