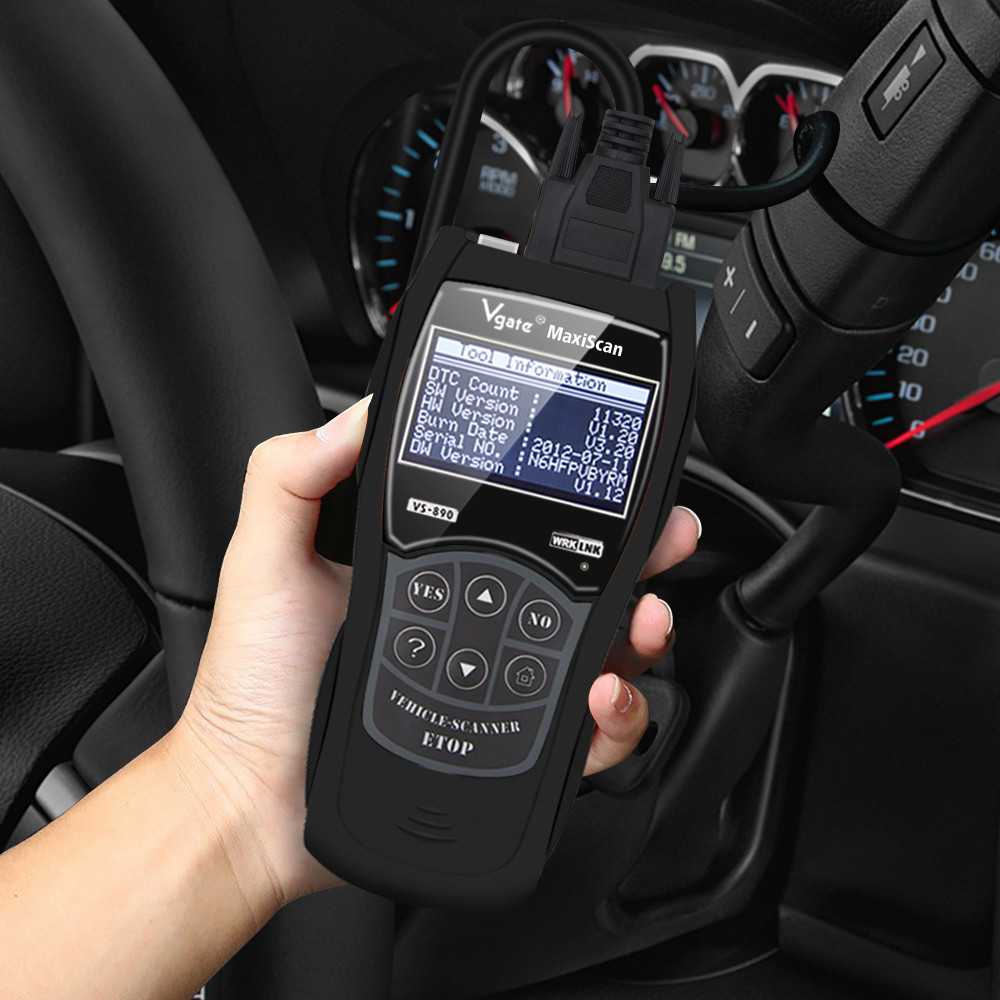

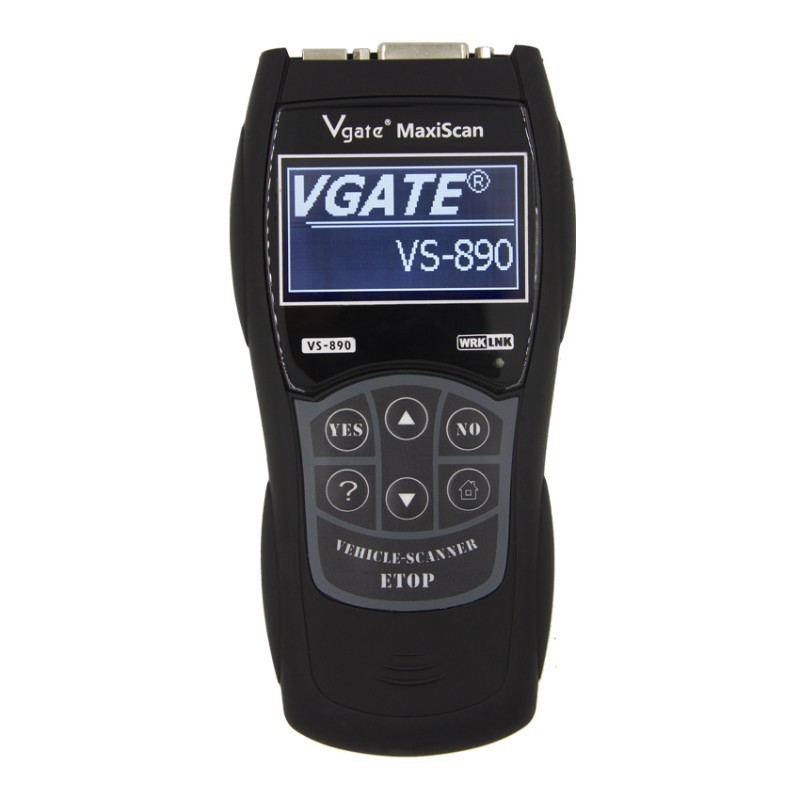

Diagnoza Auto Techstar? Vgate Maxiscan VS890, Multimarca OBD2, cu Display

VS890 Meniu Principal?

Suporta Protocoalele:

SAE J1850 PWM

SAE J1850 VPW

ISO9141

KWP FAST INIT

KWP 5BAUD INIT

CAN 11BIT 500K

CAN 29BIT 500K

CAN 11BIT 250K

CAN 29BIT 250K

CAN_USER1 11B 125K

CAN_USER1 29B 125K

CAN_USER2 11B 50K

CAN_USER2 29B 50K

Full CAN BUS support pentru masini noi

11 Bit and 29Bit CAN

Capabil de comunicare cu multiple sisteme ECU

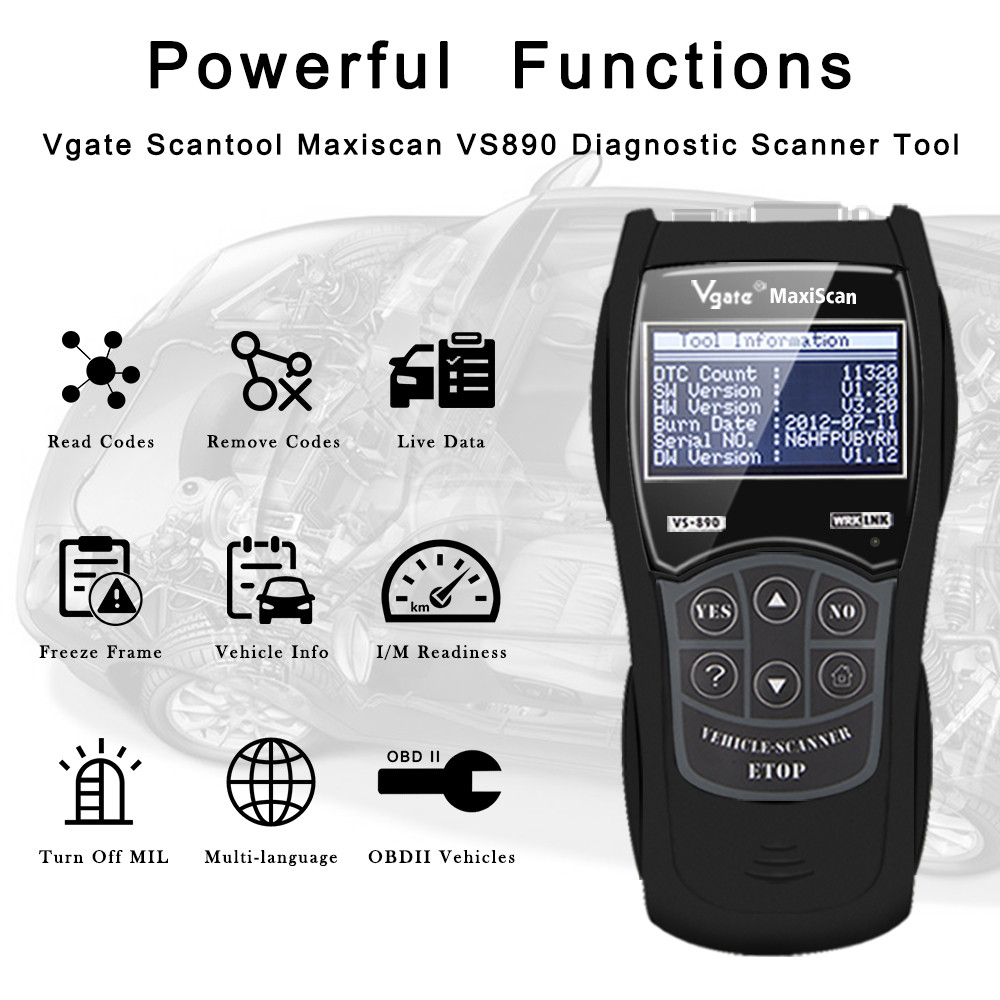

VS890 Caracteristici:

1. Culoare: negru

2. Ecran LCD: 3 inch, wide visible area, high contrast .Se poate citi chiar si in lumina puternica

3. ABS+PC Plastic de inalta calitate (drop test de la 6 metri distanta trecut cu succes.)

6. Passed EMI/EMC test.

7. Tastatura de inalta calitate de tip PET 6-key film.(3M harmless glue)

8. CE,FCC,RoHs Certified

9. Suporta input manual DTC Look-up

10. Citeste DTCs

11. Sterge DTCs

12. Data stream

13. Freeze Frame

14. I/M Readiness

15. O2 Monitor Test

16. On-Board Mon Test

17. Component Test

18. Vehicle Info.

19. Modules Present

20. Unit of Measure

21. State Emission

22. Read All DTCs

23. Read Stored DTCs

24. Read Pending DTCs

25. Detailed help information

26. Capable of showing probable cause of a DTCs.

27. Reset engine MIL

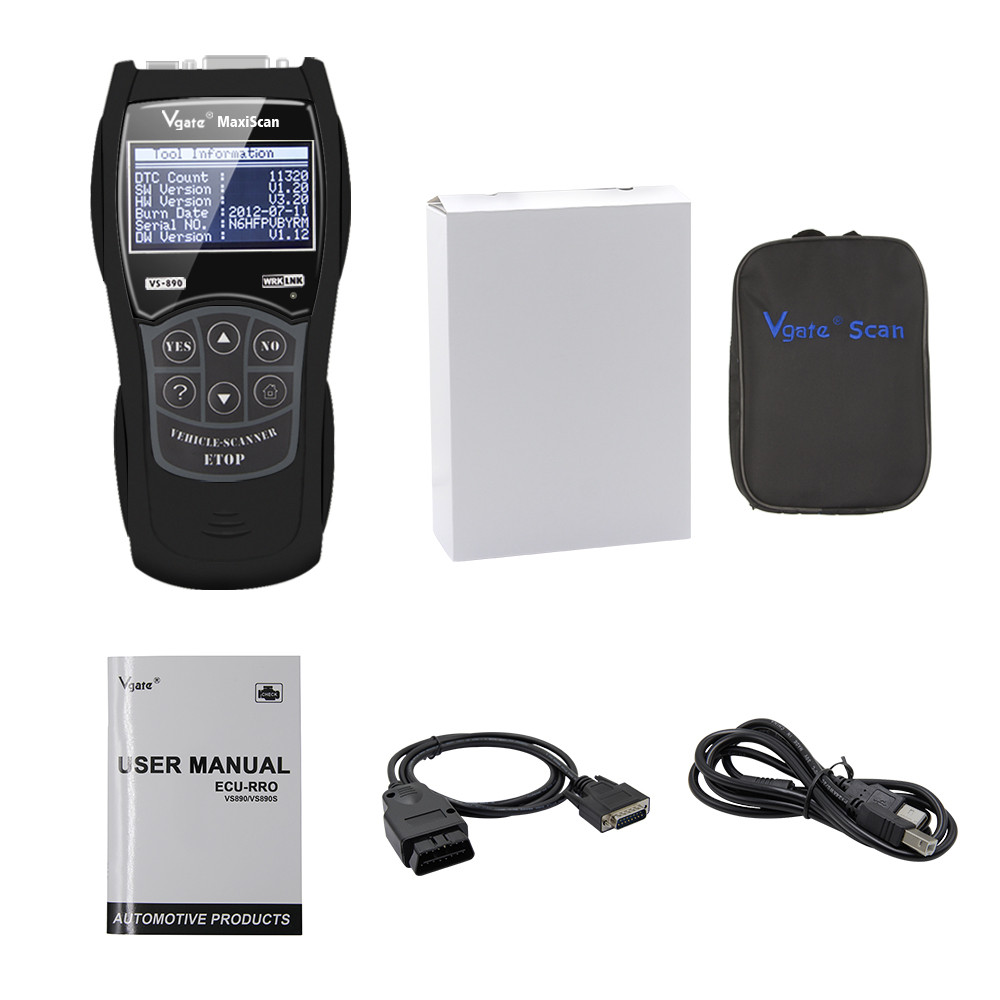

Pachetul Contine:

1 pc * VS890 Main Unit

1 pc * Manual de utilizare

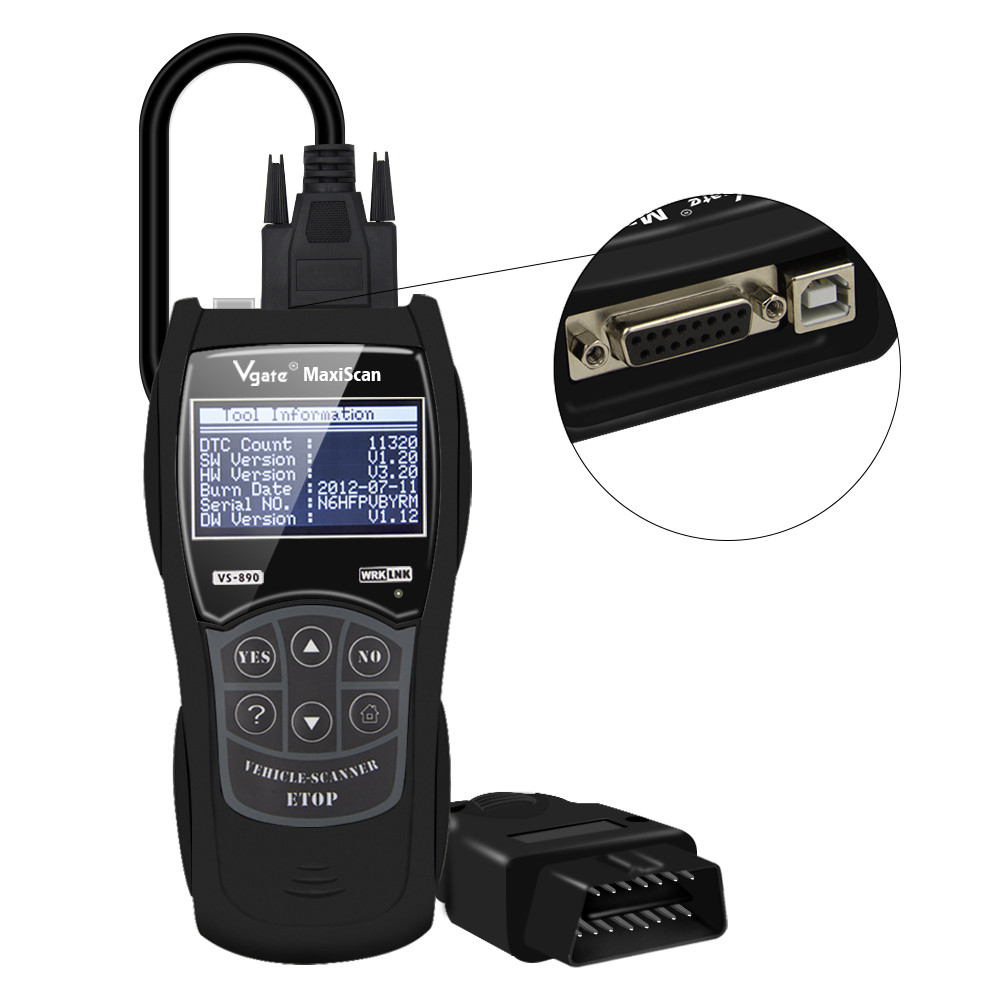

1 pc * OBD2 Cable

1 pc * USB cable
