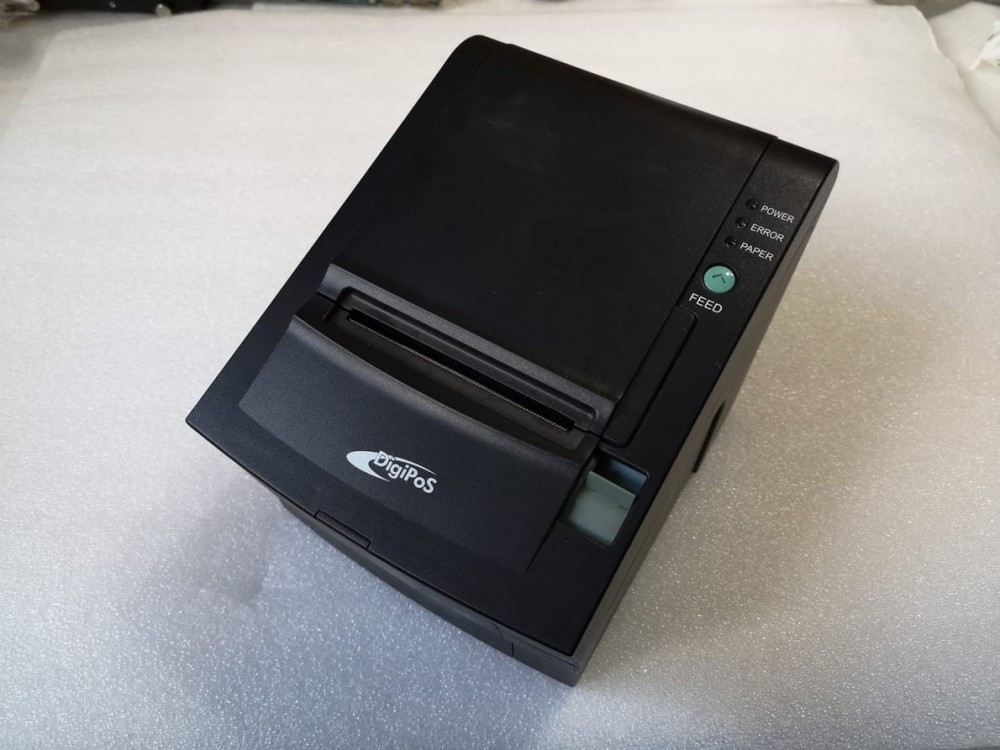

DigiPos DS-800, 80mm, port serial, negre

Description Print Font Font: 9 x 24 (FontA) 12 x 24 (Font B) Column Capacity: 64 Columns (FontA) 56 Columns (Font B) Dot Density (DPI) 203 x 180 (Font A) 180 x 180 (Font B) Dot Pitch (mm) 0.125 x 0.141 (FontA) 0.141 x 0.141 (Font B) Effective Printing Width 72mm, 576 Dots (FontA) 72mm, 512 Dots (Font B) Character Set: 95 Alphanumeric 32 International 128x7 graphics Bar Code: EAN-8, EAN-13, CODE 39, CODE 93, CODE 128, ITF UPC-A, UPC-E, CODABAR, PDF 417 Paper Handling: Drop In, Auto Cutter, Near End Sensor Interface Options RS-232C Bi-directional parallel Print Speed 150mm / sec (47 lps, 0.125" conversion) max. Thermal Paper Dimensions (mm): Width: 80mm ± 0.1 Roll Diameter: Maximum 83 Roll Core: 12.5mm ± 0.5 Thickness (mm): 0.06 to 0.09 Current consumption Approx 1.5A (mean) Power 24 VDC +/- 5% (Supplied via a DigiPoS 24V Power Supply Module) Power Consumption Approx. 38 W D.K.D. Function 2 drives Overall Dimensions (mm) 152 (W) x 194 (D) x 148 (H) Weight Approx 1.6 Kg Factory Options N / A Reliability MTBF 19 x 10 (4) hours Reliability MCBF 60 x 10 (6) lines1000
