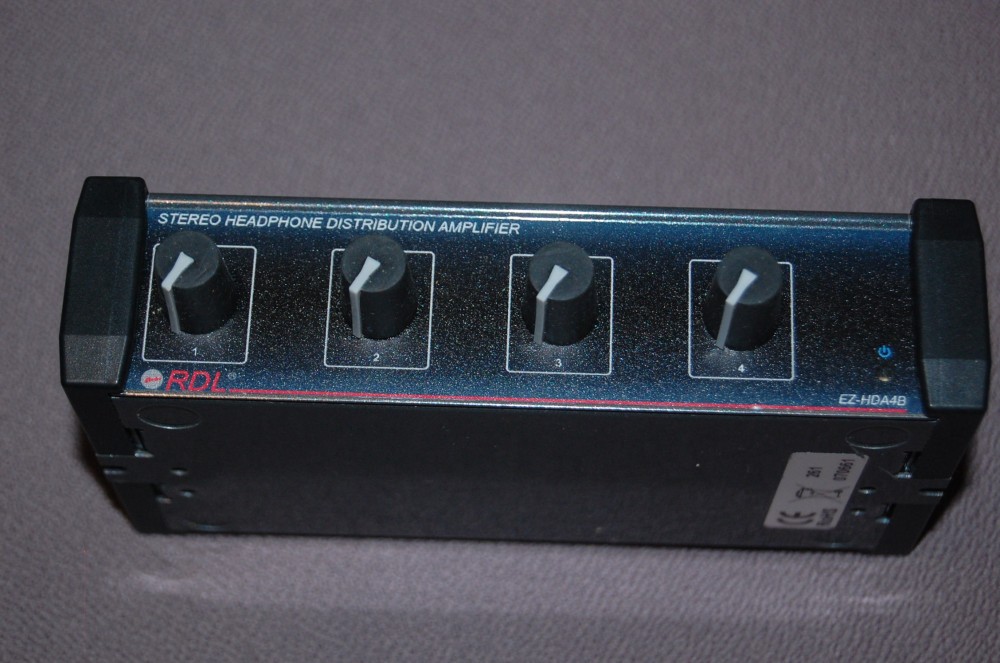

Distribuitor casti RDL STEREO HEADPHONE DISTRIBUTION AMPLIFIER model EZ-HDA4B

Distribuitor casti RDL STEREO HEADPHONE DISTRIBUTION AMPLIFIER model EZ-HDA4B poze absolut reale functioneaza impecabil vine insotit de alimentator specificatii: The EZ-HDA4B contains four stereo headphone amplifiers with individual front-panel volume controls. Headphone outputs are provided on rear-panel MINI jacks. One stereo input signal feeds all the amplifiers. Stereo RCA jacks, a MINI jack and a 1/4" jack are provided for connecting the input source. The EZ-HDA4B is used in music stores, houses of worship, studios, museums, home component systems and commercial sound systems. Inputs (3):Stereo on dual RCA jacks, stereo mini jack or 1/4” (6.3 mm) TRS, > 10 kΩ, -10 dBV nominal, +8.5 dBV max. (RCA and 1/4”), -16 dBV nominal, +2 dBV max. (Mini) Outputs (4):Stereo on Mini jacks (rear panel), 60 mW (100 Ω load) Level control:Off to +2.5 dB gain (RCA and 1/4” inputs, 100 Ω output load), Off to +9 dB gain (Mini input, 100 Ω output load) Frequency Response:20 Hz to 50 kHz (±1.5 dB, 100 Ω load) THD+N:< 0.1% (10 mW output, 100 Ω load) Crosstalk:< -75 dB (1 kHz) Noise:< -95 dB (below 10 mW output, 100 Ω load, maximum gain) 24 Vdc power supply current Case dimensions:5.75” (14.6 cm)W x 3” (7.6 cm)D Mounting size:1/3 rack width. Package Type:Cardboard Box Package Dimensions:9.5 x 7 x 2.25 in.
