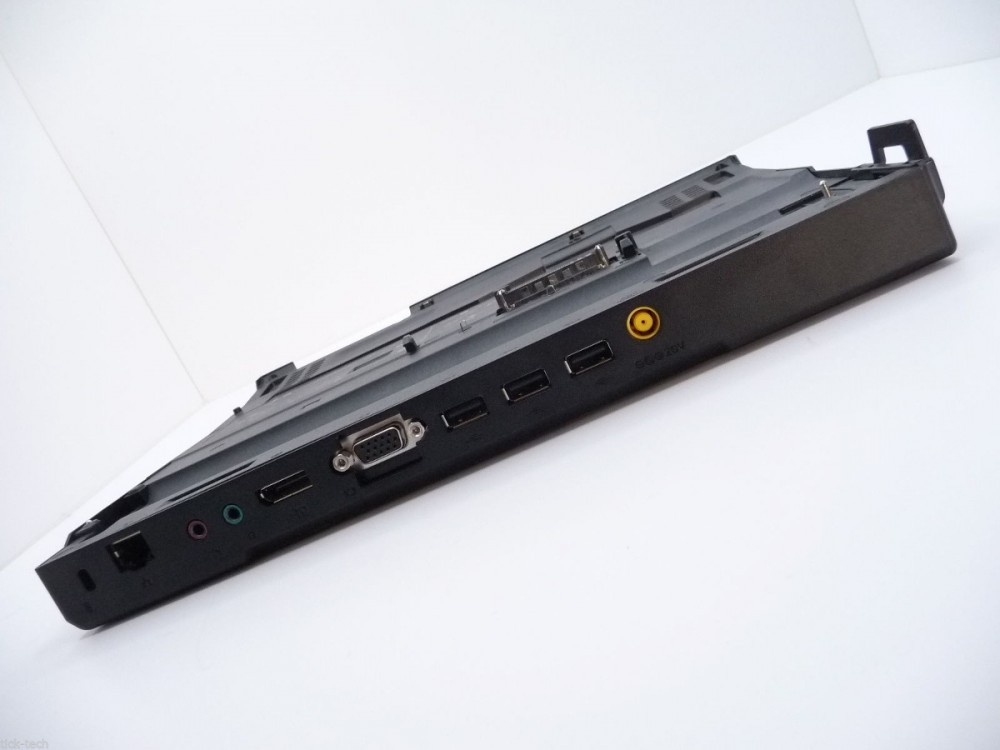

Docking Station Lenovo ThinkPad X200 X200s X201 X201i X201s Port Replicator Dock

*nu vine cu unitate
*nu vine cu incarcator

Se poate monta si unitate DVDRW / 2nd Hard Disk / alte unitati compatibile

The ThinkPad X200 UltraBase (43R8781) snaps easily onto your ThinkPad X200 Series and X201 Series ultraportable or tablet system for portable expansion. It features:
An Ultrabay Slim for device expansion for the following available options:
ThinkPad Serial ATA Hard Drive Bay Adapter III
An Ultrabay Slim is also compatible to the following discontinued options::
ThinkPad Serial ATA Hard Drive Bay Adapter II
ThinkPad DVD Burner Ultrabay Slim 9.5mm Drive - SATA
Integrated second battery charger to charge a spare battery, all X200 Series or X200 Tablet Series batteries, by:
Opening the access door on the X200 UltraBase
Connecting the spare battery to the X200 UltrabBase integrated battery charger
Standard communication and device ports, including Gigabit Ethernet (RJ-45), and four USB 2.0.
Video capabilities for attaching up to two external monitors:
DisplayPort monitor port supporting 2560 x 1600 maximum resolution.
VGA analog port supporting 2048 x 1536 maximum resoution.
Audio capabilities: Microphone in, Headphone out, and integrated stereo speakers.
Integrated key lock and cable lock slot physically secures the ThinkPad system and ThinkPad X200 UltraBase
The cable lock and key lock operate seperately
The cable lock secures the ThinkPad X200 UltraBase to the workspace (desk, table, pole, furniture, wall)
The cable lock slot supports attachment of Kensington Cable Locks from Lenovo.
The separate key lock, on the side of the ThinkPad X200 UltraBase, secures the ThinkPad to the ThinkPad X200 UltraBase
To remove the ThinkPad, from the ThinkPad X200 UltraBase, the user turns the seperate key. The user does not need to remove the cable lock from the ThinkPad X200 UltraBase
Includes two security keys
Compatible for use with Lenovo Easy Reach Monitor Stand
Supports attachment of one of the following power adapters:
ThinkPad 65W AC Power Adapter
ThinkPad 90W AC Power Adapter
Lenovo 90W Ultraslim AC/DC Combo Adapter
ThinkPad and Lenovo 90W Slim AC/DC Power Adapter
Notes:
Attach two monitors for multiple monitors by using the DisplayPort and VGA analog video ports. The ThinkPad X200 display is disabled (blank).
The X200 UltraBase DisplayPort supports attachment of the following DisplayPort monitor cables:
DisplayPort to Single-Link DVI-D Monitor Cable up to 1920 x 1200 maximum resolution
DisplayPort to VGA Monitor Cable up to 1920 x 1200 maximum resolution
The X200 UltraBase will charge both the installed battery and the battery attached to the charger simultaneously when the AC adapter is plugged into the UltraBase.
The integrated second battery charger on the X200 UltraBase allows for charging of the second battery only. It does not function as a supplementary or auxiliary battery for the system.
The X200 UltraBase does not include a power adapter. It requires the power adapter provided with the system or one of the following:
ThinkPad 65W AC Power Adapter
ThinkPad 90W AC Power Adapter
Lenovo 90W Ultraslim AC/DC Combo Adapter
ThinkPad and Lenovo 90W Slim AC/DC Power Adapter
Lenovo Easy Reach Monitor Stand requires removal of the Lenovo Easy Reach Monitor Stand optional support pegs.

Physical specifications:
ThinkPad X200 UltraBase (43R8781):
Approximate height: 27 mm (1.0 in)
Approximate width: 295 mm (11.6 in)
Approximate depth: 233 mm (9,2 in)
Approximate weight: 0.73 kg (1.6 lb)
ThinkPad X200 UltraBase (43R8781) packaged in a carton:
Approximate height: 97 mm (3.8 in)
Approximate width: 305 mm (12.0 in)
Approximate depth: 363 mm (14.3 in)
Approximate weight: 1.4 kg (3.1 lb)
Operating environment:
Temperature: 5 degrees C (41 degrees F) to + 35 degrees C (95 degrees F)
Relative humidity: 8% to 80% (non-condensing)
Storage environment:
Temperature: - 20 degrees C (- 4 degrees F) to + 60 degrees C (140 degrees F)
Relative humidity: 5% to 95% (excluding rain)
Hardware compatibility
Description     Machine - Models
ThinkPad X200, X200s, X200t, X200 Tablet
All
ThinkPad X201, X201i, X201s, X201t, X201 Tablet
All
Lenovo Easy Reach Monitor Stand*
All
ThinkPad 65W AC Power Adapter
- - - - -
ThinkPad 90W AC Power Adapter
- - - - -
Lenovo 90W Ultraslim AC/DC Combo Adapter
- - - - -
ThinkPad 90W Slim AC/DC Power Adapter
- - - - -
