Produsul este nou!
Produsul este la fel
cu cel prezentat in fotografii!
Specificații în limba
engleză:

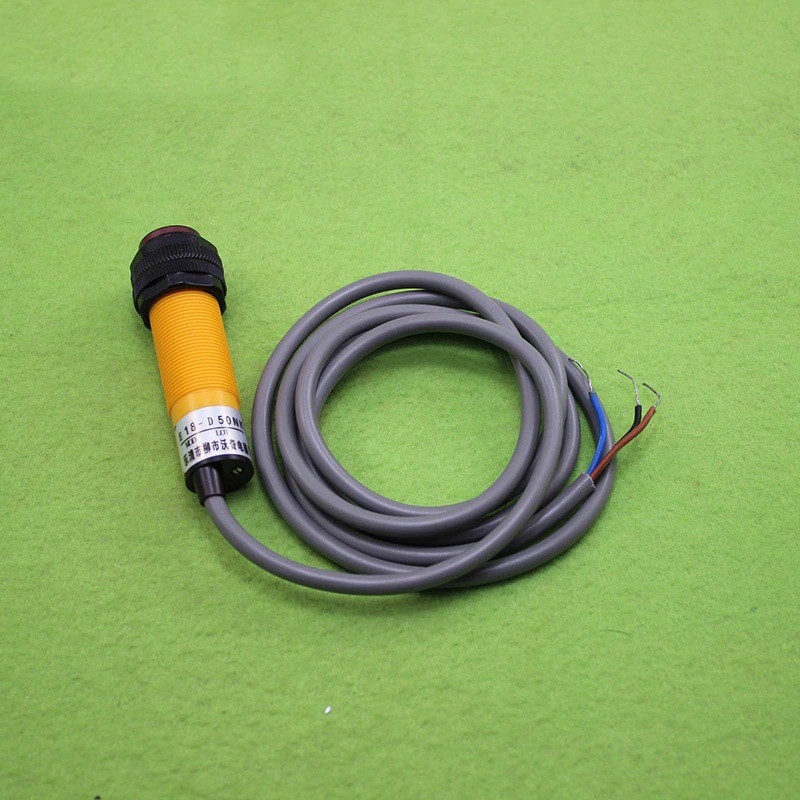

Model: E18-D50NK diameter 18MM length 65MM length 1.2M
This is a kind of photoelectric sensor, which combines
transmitting and receiving. Detection range can be adjusted
according to the requirements 1. The sensor has the detection
distance, by visible light interference is small, the price is
cheap, easy assembly, easy to use and other characteristics, are
widely applied to robot obstacle avoidance, pipeline piece and so
on numerous occasions.
Electrical characteristics:
U:5VDC
I:100mA
Sn:3-50CM
Induction type: diffuse reflection;
Induction distance: 0-50cm adjustable;
Operating voltage: 6-36V can be;
Brown positive, blue negative data
Working environment: temperature +70 to -40 degrees
celsius;
Protection level: IP61-IP67;
The corresponding time: the functional reset time is below
2.5MS;
Detection of objects: transparent, opaque body;
Differential distance: the detection distance is below
20%;
Insulation resistance: greater than or equal to 20M ohm;
Matters needing attention:
1 switch on the power supply should first check the wiring is
correct, check whether the voltage parameters for the rated
value;
2 switch load can not be short circuit, the power of the load
should not exceed the maximum output current;
Model: E18-D50NK
This is a kind of photoelectric sensor, which combines
transmitting and receiving. Detection range can be adjusted
according to the requirements 1. The sensor has the detection
distance, by visible light interference is small, the price is
cheap, easy assembly, easy to use and other characteristics, are
widely applied to robot obstacle avoidance, pipeline piece and so
on numerous occasions.
Electrical characteristics:
U:5VDC
I:100mA
Sn:3-50CM
Size:
Diameter: 17MM
Sensor length: 45MM
Lead length: 45CM
Application:
1, production line goods automatic counting equipment
2, multi-function reminder
3, maze robot
matters needing attention
For action to protect the reliability and long service life,
avoid outside of the relevant provisions of the outside temperature
(outdoor) conditions, close to the sensor, although as waterproof
structure, if installed on the cover is used, do not make water and
water volume of cutting oil poured into, can better improve the
reliability and service life. Please avoid in chemicals, especially
the use of alkali, acid, nitric acid, sulfuric acid, Ming thermal
climate etc..
Photoelectric sensor (photoelectric switch) NPN often
open
Model: E18-D50NK.
Technical parameters of photoelectric switch E18:
1, the output current DC/SCR/ relay output:100mA/5V Control
power supply
2, consumption of current DC<25mA
3, response time <2ms
4, pointing angle: less than or equal to 15 degrees, the
effective distance of 3-50CM adjustable
5, the detection of objects: transparent or opaque body
6, the working environment temperature: ~+55 degrees C
-25
7, the standard detection object: the sun light 10000LX the
following incandescent lamp 3000LX
8, shell material: plastic
Pachetul conține:
• 1 bucată x E18-D50NK (cod produs: e.016)
Predare personală în Galați.
Se expediază în toată țara prin Poștă sau curierat în sistem
ramburs.
• DPD - 15,5 lei
• FAN COURIER - 15,5 lei
• Urgent Cargus - 15,5 lei
• Poșta Romană (Prioripost) - 15,5 lei
Trimit în
tară și cu verificare colet. La prețul
transportului se adaugă 4 lei.
Dacă aveți nelămuriri sau întrebări vă rog nu ezitați să
sunați sau să-mi
scrieți.
