Ecler APA 1000 Amplificator

Amplificator in tehnologie SPM (Switching Power Mosfet) . Inalta eficienta. Control de gain pe panoul frontal cu sistem de blocare inpotriva utilizarii neautorizate. Complet protejat. indicatoare de Clip si protectie termica pe panoul frontal. Ventilatie fortata cu actionare progresiva (controlata de temperatura). Sistem automat anticlip (limmiter). Filtru subsonic . Selector Stereo-Bridge-Parallel. Sensibilitate de intrare adaptabila. Intrari XLR3 si JACK balansate. Iesiri Speakon. Sasiu masiv de Otel. Inaltime 2U (89mm).

POWER 20-20kHz 1% THD
2 Ohm Stereo: 682 W RMS
4 Ohm Stereo  440 WRMS
4 Ohm Bridge: 1364 W RMS
8 Ohm Stereo  275 WRMS
8 Ohm Bridged  882 WRMS

POWER 1kHz 0.1% THD
4 Ohm Stereo 400 WRMS
8 Ohm Stereo  252 WRMS
8 Ohm Bridged  800 WRMS
Peak Power 2Ohm/1kHz 1.5Kw
Frequency response (-1dB)  7Hz-50kHz
High pass filter (-3dB) 25Hz/Butt./18dB/oct.
THD+Noise @ 1kHz Full Pwr.  Imd. Dist. 50Hz & 7kHz, 4:1  TIM 100  S+N/N 20Hz-20kHz @ 1W/4W  >80dB
Damping factor 1kHz @ 8W  >300
Slew Rate  ±65V/μs
Channel crosstalk @ 1kHz >75dB
Input connector XLR3 balanced
Input CMRR/ref. Max. PWR)  >60dB @ 1kHz
Input Sensitivity / Impedance  0dBV/>22kW
Signal present indicator  -40dB
Output connectors Speak-on
Clip indicators -1.5dB real clip
Anticlip limiter  1% & 5% aprox.
Mains Depending on your country. See characteristics in the back of the unit.
Power consumption (max. Out) 1250VA
Dimensions
Panel  482.6x88 mm
Depth 410 mm
Weight 15.450kg

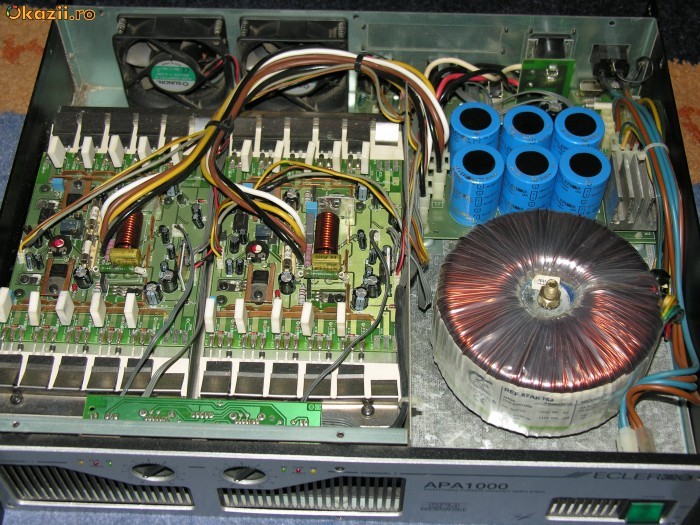

Predecesorul lui DPA 1000 prezinta aceeasi arhitectura interna a cablajului, acelasi transformator toroidal radiatoare si filtraj. Pot sa ofer aceasta dovada comparativa la DPA 1400/ APA 1400.

Se poate ridica din Bacau/Brasov/Bucuresti/Iasi
