Ecran LCD 84x84 nokia 5110
Cost unic de transport la toate comenzile acestui vanzator
Disponibilitate:
In stoc
1 disponibil
Vandut de:
94.12% pozitive
(din 46
)
)
Descriere
Raporteaza produsVânzatorul este direct răspunzator pentru produsul afișat în această pagină.
Specificatii
Culoarea poate sa difere de cea din poza
Pinii pot veni lipiti sau dezlipiti.
Feature:84 X 48 dot matrix LCD,can show
4 lines of characters
Use serial interface
communicate with the master processor,the number of interface
signal line reduced greatly, only 8 signal lines including power
and GND.Support different types of MCU,such as the SPI,MCS51 serial
mode 0 of AVR.Transfer rate up to 4Mbps,can full speed write
display data without waiting time.
Can use the conductive glue to
connect the module with the printed board,without connecting
cable.The metal hooks on the module can fix the module on the
printed board,which is very easy to install and
replace.
LCD controller/driver chip has
been bound to LCD chip,the volume of LCD is small
Low power supply,the working
current in normal situation is lower than 200μA,and has power-down
mode.
Specification:
Power supply voltage:
2.7V-3.3V,5V is OK,but part of the screen becomes black when
tested
Data interface level:
2.7-5V
Backlight power supply voltage:
highest 3.3V

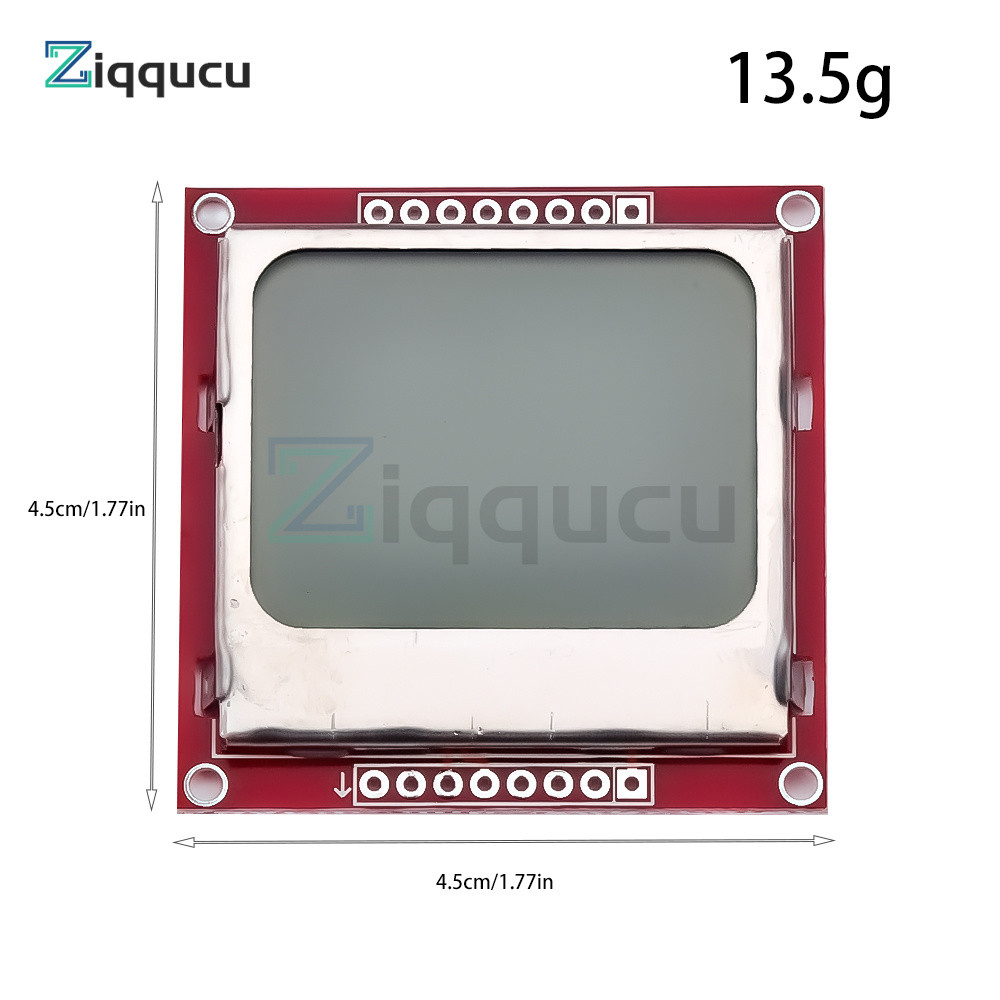

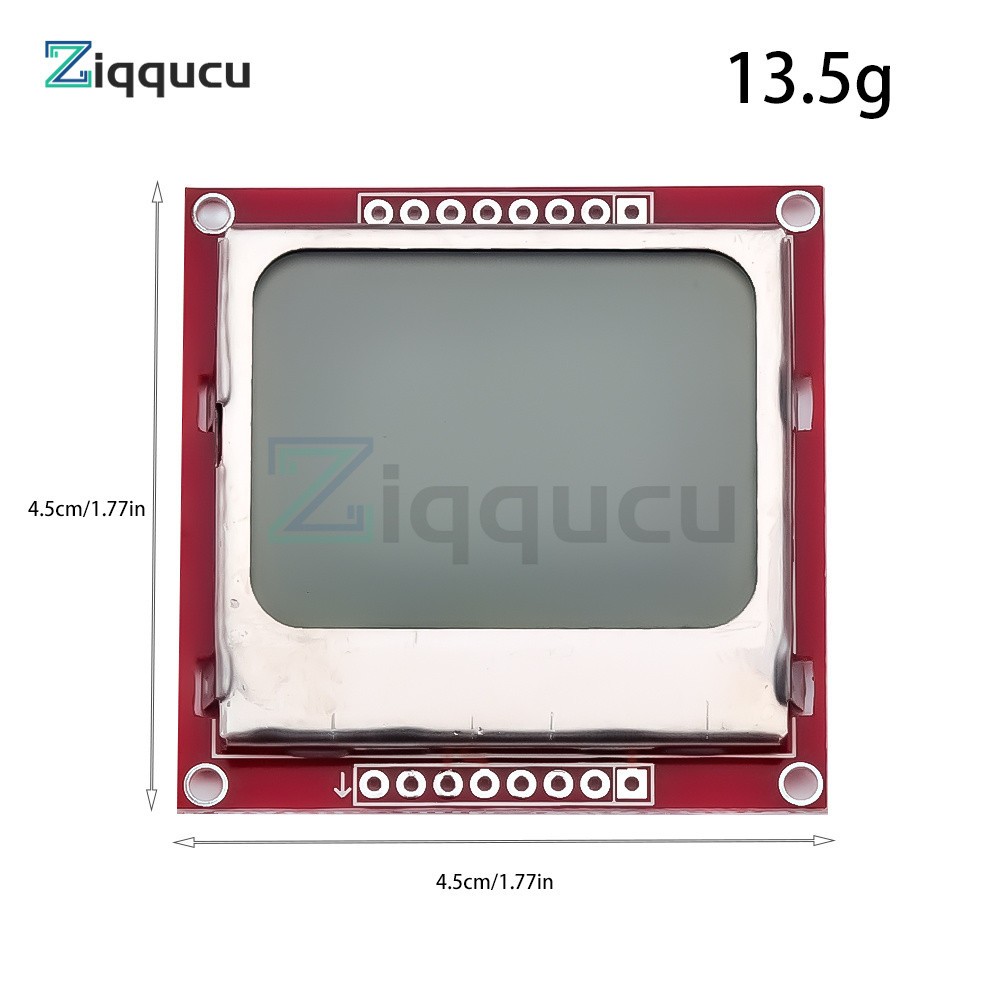

Module size: 43.6mm x
43.1mm(width X height)
Installation diameter:
2mm
Backlight: White/Blue
(Optional)

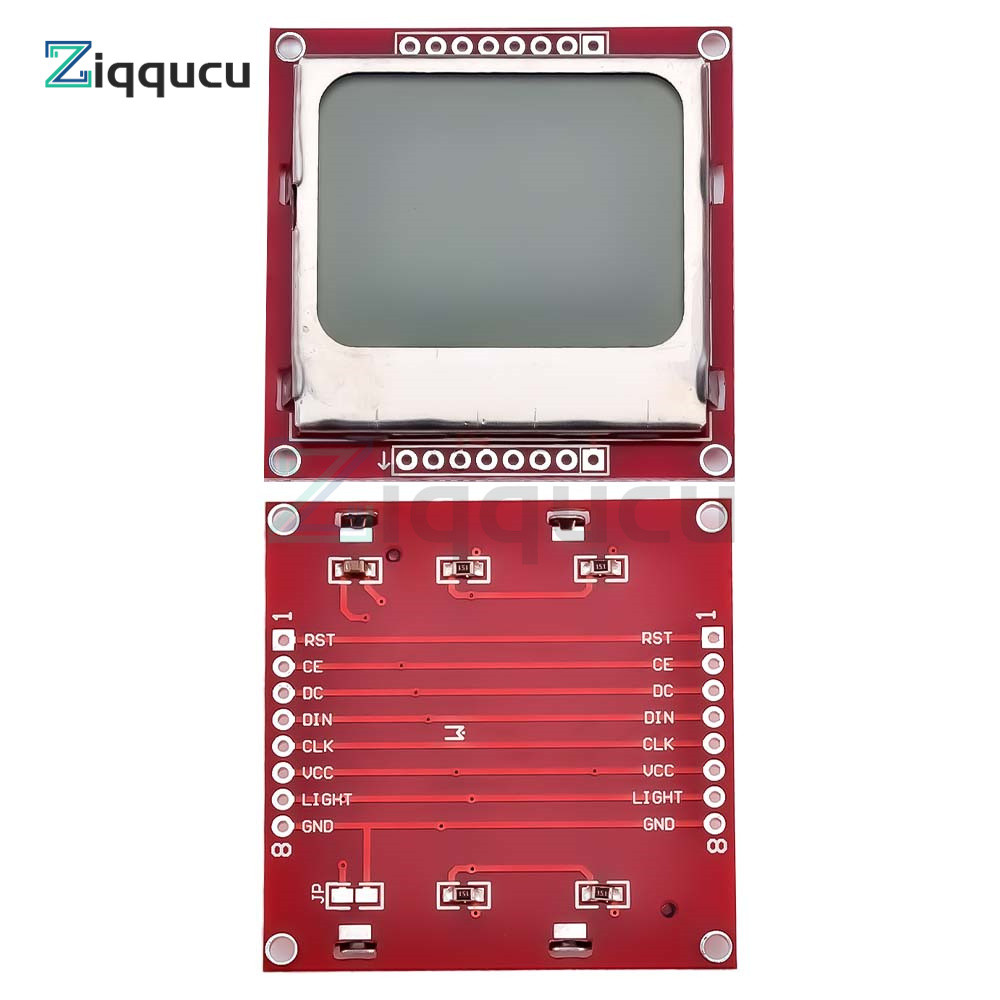

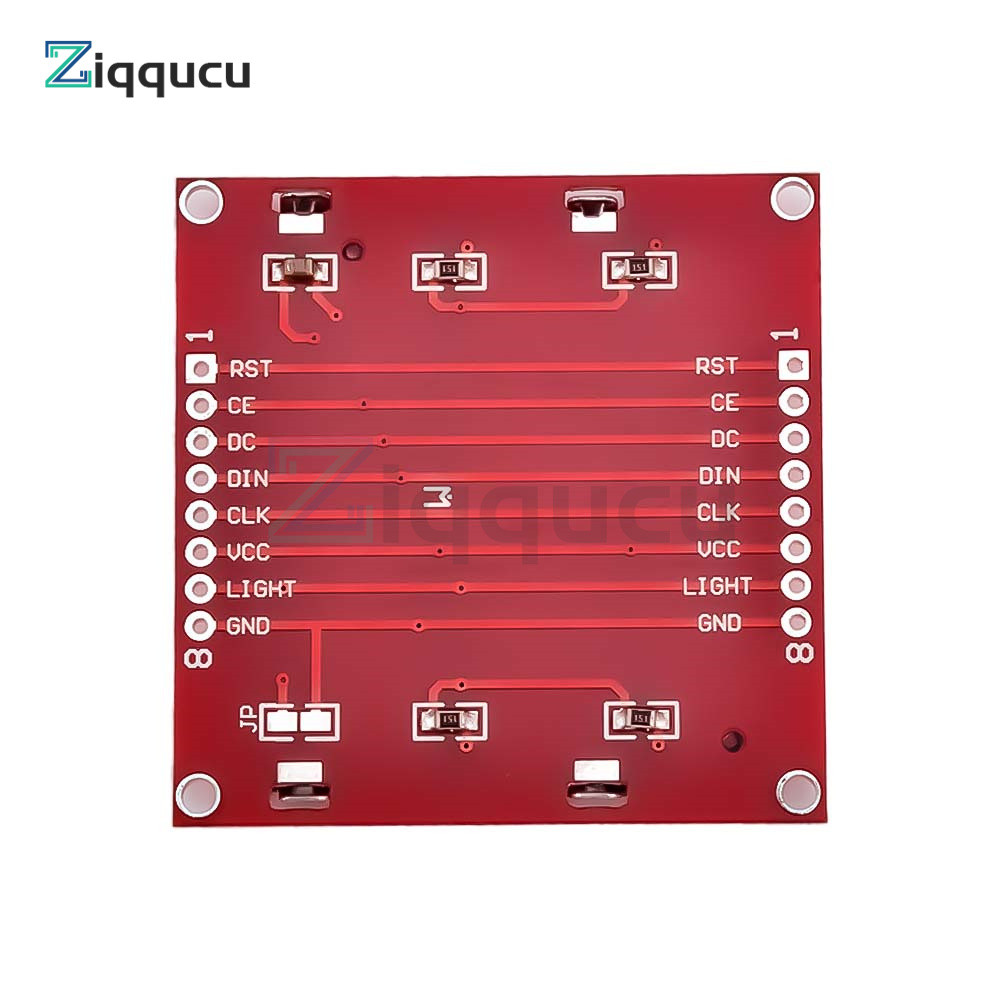

Pin
Feature:
1 RST---------
reset
2 CE------------chip
selection
3 DC-----------data/commands
choice
4 DIN-----------serial data
line
5 CLK------------serial Clock
Speed
6
3.3V------------VCC
7 LIGHT--------- backlight
control terminal
8 GND-----------power
negative
Note:
1. "LIGHT" linked with GND, the
backlight to be lit.
2. Need you to compress the
screen and PCB tighter, might got loose after the
delivery.
3 Use a 3.3V controller,
otherwise the display could be quite vague.

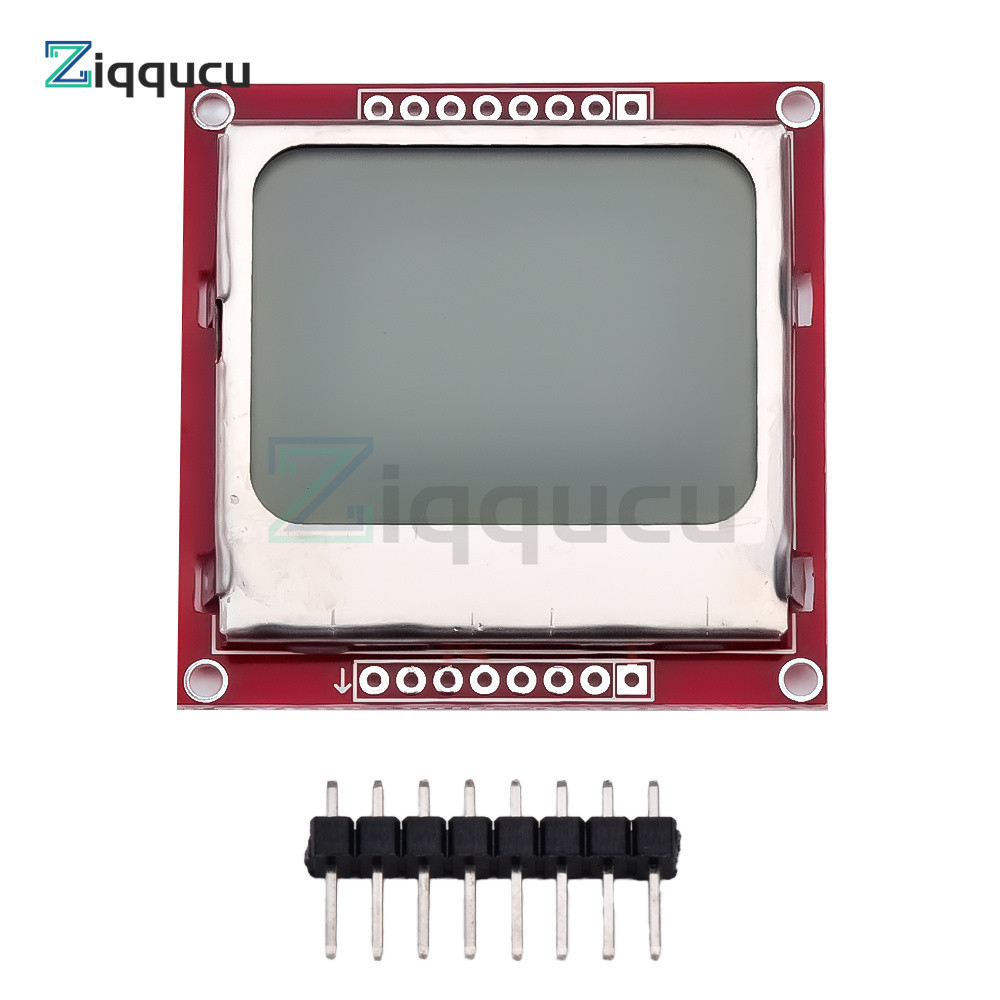

Package
Included:
1 * 5110 LCD Display
Module
