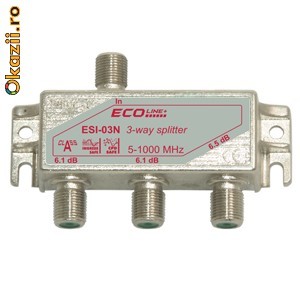

ESI-02N - ESI-03N splittere interior ECO-LINE + mufe PPC compresie

VAND splittere interior cu 2 , 3 si 4 iesiri +

mufe compresie RG6 PPC

conectica PPC are urmatoarele specificatii :

Bandwidth: 0 MHz to 3 GHz
Impedance: 75 Ohms (nominal)
Return Loss: Minimum -30 dB to 3 GHz
Insertion Loss: Less than .10 dB to 3 GHz
Operating Voltage: 90 V (at 60 Hz continous AC)
Operating Temperature: -40° F to + 140° F (-40° C to 60° C)
Cable Retention: 50 lbs (22.73 kg) minimum
Meets or Exceeds all SCTE Specifications

Splitterele ECO-LINE :

The Ecoline+ series of Splitters & Taps have been especially developed to meet the needs of the European market and distinguishes itself from any other range in the business. With the Ecoline+ a new standard of splitters and taps has been set fully equipped with a number of innovative technologies. The products within the Ecoline range excel both in electrical and mechanical performance. It is a really complete series, containing all housing types that could be found in the previous Ecoline and Ruby-line series. It has an easy to install design with a compact housing of which some models are stackable. All Fconnector contacts meet the SCTE standards (ANSI SP 406-1998) and are of unequalled quality. The material of the inner spring has been designed specially for connecting coax cables with an inner core of 0.51 to 1.20 mm, even when varying thicknesses are connected after each other. The ports were tested to withstand linear forces according to SCTE 72-2003. The intermodulation performance, which is an important factor in high level return path signals, has been greatly improved through a newly developed ferrite and specially designed circuits. The high frequency shielding exceeds Class A requirements (CENELEC EN-50083-2:1998) over the whole frequency range from 5 MHz to 1000 MHz. Next to that there are additional options as Solder back or T/G back cover, round F-pin, epoxy sealed F connectors, Ingress Safe, NiSn plating etc. Extensive research in a number of labs worldwide has shown that NiSn plating is the best plating material for products used in the CATV networks. The most important feature is the prevention against Common Path Distortion (CPD), the nightmare of every Cable operator.

Features

• Cenelec Class A screening effectiveness
• ModemSafe® secured
• High return loss
• Excellent intermodulation distance
• SCTE compliant F-connectors
• Easy to install: compact and stackable in-line model
• 7 mm ground space to fit cable underneath
• IngressSafe® circuit
• NiSn plated housing for CPD reduction

Ingress Safe

Another exiting new technology is called Ingress Safe®.  Due to a phenomenon called: phase cancellation, the ingress levels in the CATV network can be drastically reduced. Our Ingress Safe® is an unique and patented Technetix technology to reduce subscriber ingress significantly. As there is correlation between the frequency and phase of ingress signals with common origin from two adjacent subscribers we can use this phenomenon to reduce ingress near to the source. In a common splitter phase related ingress will add up with approximately 13Log(n) to 17Log(n) where n is the number of ports. This means the addition of ingress reduces the C/N between 3.9 dB to 5.1 dB in a 2-way splitter. Each Ingress Safe® model is fitted with integrated ingress reduction. A 180 degree phase shifting device is added to the output of the splitter. This means that the ingress from one subscriber is added in the splitter out-of-phase with the ingress from a second subscriber, thereby cancelling each other out. Measurements show that ingress safe units in the distribution network can improve the carrier to noise ratio up to 8 dB.

Modem Safe

All Ecoline+ products are equipped with Modem Safe® technology.  Modem Safe® is a highly effective surge protection solution. It blocks high level surge pulses and unwanted DC voltage, thus protecting sensitive equipment. Besides the blockage of these surges and voltages, it also prevents the internal ferrites becoming magnetized. When ferrite material is magnetized, the intermodulation behaviour becomes worse resulting in an increase of passive intermodulation products. Thanks to the Modem Safe® circuitry, the intermodulation behaviour of the Ecoline-splitters is excellent and will not deteriorate over time like common splitters

Cantitatile sunt de 100 buc. splittere si 500 mufe PPC
