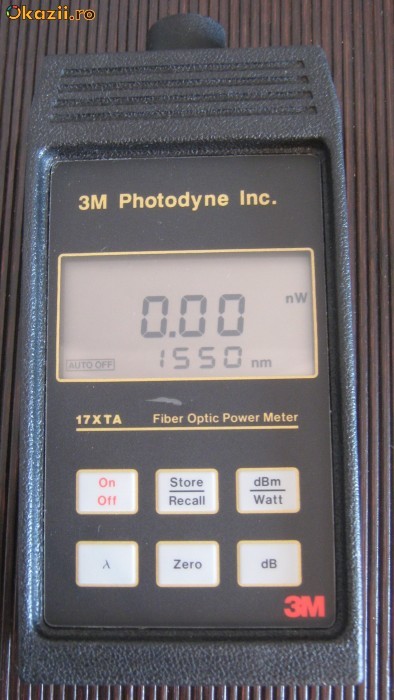

Fiber Optic Power Meter- 3M Photodyne Fibre Optic Power Meter

Fiber Optic Power Meter-3M Photodyne Fibre Optic Power Meter

This unit has the following features:

• Fiber Optic Power Meter
• Wavelength: 820, 850, 1300, and 1550 nm
• Measured value display: selectively dB, dBm, or Watt
• 9 V battery operation or mains operation with charger
• 10 memory settings
• Auto-off-function

• STANDARD CAL WAVELENGTHS:              820nm, 850nm, 1300nm, 1550nm

  SECONDARY CAL WAVELENGTHS:            30 secondary cal wavelengths at

                                                                                10nm, intervals from:

                                                                                800-900nm

                                                                                1250-1350nm

                                                                                1500-1600nm

  MEASURING RANGE (LOG)

                    1300 – 1550 nm                                  + 5dBm to -67dBm

                    820   -  850 nm                                    +5dBm to -60dBm

  MEASURING RANGE (LINEAR)

                   1300 – 1550 nm                                   3mW to 0.2nW

                    820   -  850 nm                                    3mW to 1.0nW

  MEASURING RESOLUTION

                          LOG:                                                  0.01dBm, 0.01dB

                          LINEAR:                                            0.01nW,  0.001uW, 0.001mW




Nu se livreaza cu baterie sau alimentator.

Sursa de lumina Fluke FOS 850/1300 si patch cord-ul de fibra optica nu se vinde impreuna cu 3M Photodyne Fibre Optic Power Meter.

Va rog sa priviti si celelalte aparate pe care le am la licitatie.

Pentru usurinta urmati link-ul: http://www.okazii.ro/catalog?user_list=honki55&sort=timp_ramas_desc

Va multumesc pentru atentia acordata.
