Frecventmetru digital 5 digiti kit 0-50Mhz ( kit sau montat ) !
Descriere
Raporteaza produsVânzatorul este direct răspunzator pentru produsul afișat în această pagină.
Specificatii
Produsul sub forma de kit are pretul din anunt !
Produsul gata asamblat testat si functional costa 89 lei !
- Frequency range 1 Hz ... 50 MHz
- Five digits resolution (display for example x.xxxx kHz, x.xxxx
MHz,
or xx.xxx MHz)
- Measuring signal amplitude can be up to 30 v
- 4-40 m passive crystals can measure
- Automatic range switching with different gate times
- Optional addition or subtraction of a frequency offset
(programmable)

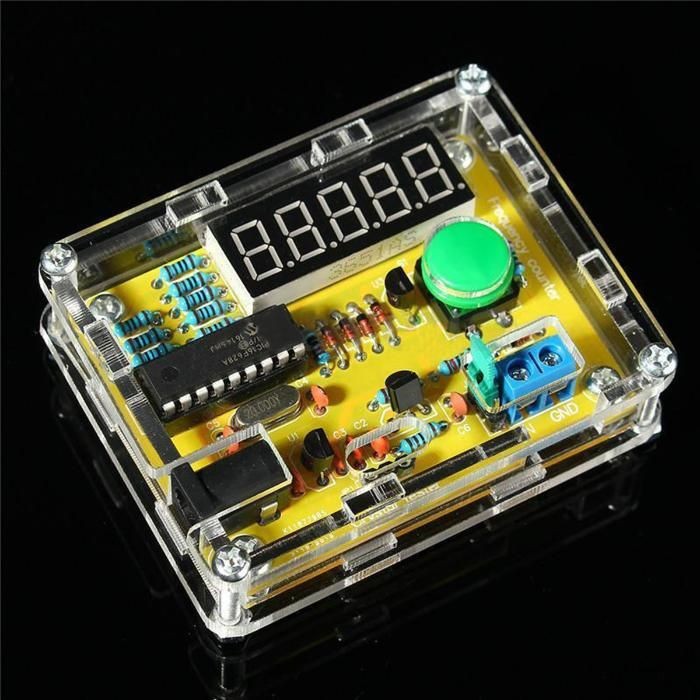

- Very low component count: a PIC 16F628, 5 7-segment LED displays,
a 20MHz crystal and a few resistors
- Optional (configurable) power-saving mode which automatically
turns
- The display off if the frequency didn't change significantly
within 15seconds
- USB 5V or DC5-12V power supply can be used
Livrarea se poate face doar in 2 feluri:
1) personal la
Metrou Nicolae Grigorescu in Bucuresti
2) cu livrare prin
posta romana cu plata in avans in cont bancar a contravalorii
produs + 15lei ( taxe postale de expediere posta romana )….dupa
confirmarea platii va voi trimite nr AWB de urmarire colet pe posta
romana !
Multumesc de intelegere !
